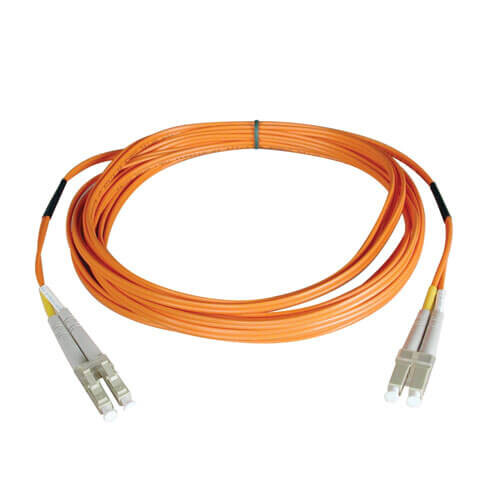

Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 152M (500 ft.)

Name: Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 152M (500 ft.)
Brand: Tripp Lite
SKU: N520-152M
Price: 396.14 CAD
Availability: InStock

$396.14

Brand: Tripp Lite

Part Number (MPN): N520-152M

UPC / GTIN: 037332126344

Datasheet: PDF

Tripp Lite series Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 152M (500 ft.)

Toronto Stock: 1 available

Manufacturer Warehouse: 64 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Premium PVC multimode patch cables
Attenuation loss meets or exceeds the latest industry standards
Higher bandwidth optimized for gigabit networks

Overview

This multimode duplex Fibre Channel optic LC/LC Ethernet cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit networks. Also available in 1, 2, 3, 5, 10, 15, 20, 25, 30, 50 and 100 meter lengths. Enter “N520-” in the search field to bring up all lengths. For LC-SC cables, search “N516-“, and for SC-SC, search “N506-“.

Features

Constructed with 50/125 micron cable
Length – 152M – Ships on a Reel
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit networks
Backward compatible with 62.5 micron fiber

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with LC/LC connectors

Package Includes

152M Duplex MMF Cable LC/LC 50/125 Fiber

Weight	3.3 lbs
Dimensions	10.3 × 10.2 × 4.6 in
UPC Code	037332126344
Cord Length	498.82
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM2
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	LC DUPLEX (MALE)
Endface Polish	PC
Cable Jacket Color	Orange
Connector Color	Gray
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	50
Number of Fibers	2
Cable Length (m)	152.04
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	11.68 x 25.91 x 26.16
Shipping Weight (kg)	1.50
Fiber Cable Length	152M (498.7 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps; 25 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	≤ 0.20 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
