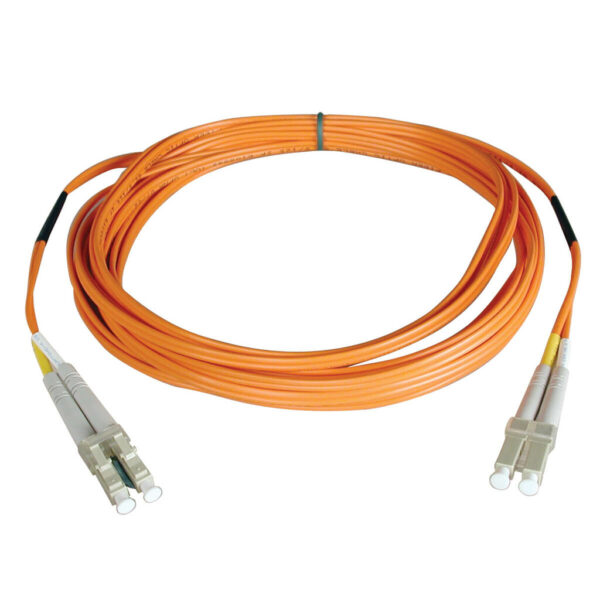

Tripp Lite series Duplex Multimode 50/125 Fiber Plenum Rated Patch Cable (LC/LC), 30M (100 ft.)

Quick Specs

• Premium PLENUM multimode patch cable
• Attenuation loss meets or exceeds the latest industry standards
• Higher bandwidth optimized for Gigabit and 10Gbps networks
• Backward compatible with 62.5 micron fiber
• Built-in headroom for future applications

Overview

This multimode duplex Fibre Channel optic LC/LC Ethernet cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a plenum-rated jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. Plenum rated cable used where local fire code calls for fireproof cable. The cable provides higher bandwidth optimized for Gigabit and 10 Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25 and 50 meter lengths. Enter “N520-” in the search field to bring up all lengths. For LC-SC cables, search “N516-“, and for SC-SC, search “N506-“.

Features

• Constructed with 50/125 micron cable
• Length – 30M
• Plenum Rated ( CMP ) jacket
• Use on fiber and fibre channel installations
• LC male to LC male connectors
• Higher bandwidth optimized for Gigabit and 10Gbps networks
• Backward compatible with 62.5 micron fiber
• Built-in headroom for future applications
• Number of fibers: 2
• Fiber type: all glass graded index
• Core diameter: two 50+/-3 microns
• CLAD diameter: 125+/-2 microns
• Primary coating diameter: 245+/-15 microns
• Primary coating material: acrylate
• Secondary coating diameter: 900+/-50 microns
• Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
• Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
• Numeric aperture: .275 nominal
• Proof test level: 100,000 PSI
• Insertion loss testing performed on every connector (0.2db typical) and provided with cable
• Beveled edge on ends of glass makes insertion of plug a breeze

System Requirements

• Any fiber optic hardware or NIC card requiring multimode duplex cable with LC/LC connectors
• Use Plenum jacketed cable where local fire codes dictate

Package Includes

• 30M duplex MMF cable LC/LC 50/125 fiber, Plenum rated jacket
