Tripp Lite series 10/100 SC Singlemode Fiber to Ethernet Media Converter, 15km, 1310nm

Name: Tripp Lite series 10/100 SC Singlemode Fiber to Ethernet Media Converter, 15km, 1310nm
Brand: Tripp Lite
SKU: N784-001-SC-15
Price: 96.45 CAD
Availability: InStock

$96.45

Brand: Tripp Lite

Part Number (MPN): N784-001-SC-15

UPC / GTIN: 037332184139

Datasheet: PDF

Tripp Lite series 10/100 SC Singlemode Fiber to Ethernet Media Converter, 15km, 1310nm

Manufacturer Warehouse: 189 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Extends a 100Mb Ethernet signal up to 15kM over Singlemode Fiber Optic Cable
Auto detects Full/Half Duplex Transfer Mode
Supports Singlemode cable up to 15 KM

Overview

The N784-001-SC-15 10/100 to Singlemode Media Converter (RJ45 to SC) is an economical way to extend the distance of network nodes up to 15 kilometers by converting Cat5e UTP cables to Singlemode Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. Auto-detects half or full duplex operation on the fiber port. Power supplied by small form factor AC adapter.

Features

10/100 UTP to Singlemode Fiber converter
Up to 15kM ( 9 mile ) range
Auto-detects Full / Half Duplex Transfer Mode
Auto Negotiation MDI / MDI-X
6 performance monitoring LEDs
1310nm wavelength
Small, compact design
Supports Singlemode cable up to 15 KM

System Requirements

10/100 Ethernet Network
Singlemode SC Fiber cable

Package Includes

N784-001-SC-15 Media Converter
External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz; Output: 5V, 1.2A)
Owner’s Manual

Weight	0.4 lbs
Dimensions	5 × 9.1 × 2 in
UPC Code	037332184139
Cord Length	4.53
Brand	Tripp Lite
Product Type	Fiber to Ethernet
Technology	Cat5/5e; Singlemode
Mode Type	Singlemode
Accessories (Included)	External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V/2A)
Network Ports	RJ45 (FEMALE); SC (FEMALE)
AC Power Adapter Plug(s)	NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A)	100-240V / 50/60Hz / 1.2A
AC Power Adapter Output Specs (V / A)	5V / 2A
AC Power Adapter Cord Length (ft.)	4.53
AC Power Adapter Cord Length (m)	1.38
Power Source Type	AC Adapter
AC Adapter	Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A
DC Barrel Plug	OD: 5.5 x 2.5 x 11mm, Positive Pin, Negative Sleeve
Side A - Connector 1	RJ45 (FEMALE)
Side B - Connector 1	SC DUPLEX (FEMALE)

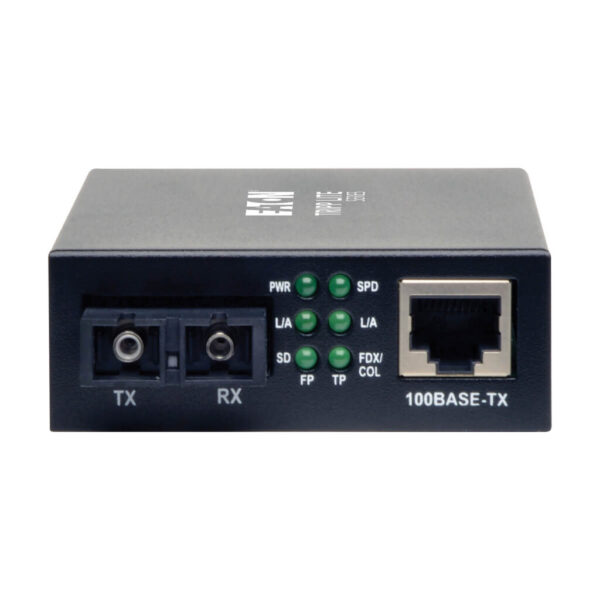

LED Indicators	PWR (Power LED), L/A (Fiber port connection indicator), SD (Fiber signal indicator), SPD (Network speed), TP-L/A (Copper port connection indicator), FDX/COL (Full Duplex/Half Duplex)
Color	Black
Power Cord Color	Black
Shipping Dimensions (hwd / cm)	5.08 x 23.11 x 12.70
Shipping Weight (kg)	0.18
Unit Dimensions (hwd / cm)	2.54 x 11.94 x 6.99
Unit Packaging Type	Box
Unit Weight (kg)	0.45
Housing	Metal
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 158°F (-20° to 70°C)
Relative Humidity	5% to 90% RH, Non-Condensing
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet)
Network Speed Details	10 Mbps; 100 Mbps
Wavelength	1310nm
Transmission Distance	15 km
Wavelength Division Multiplexing (WDM)	Yes
Data Transfer Rate	10 Mbps; 100 Mbps
Working Mode	Full/Half Duplex
Auto MDIX Support	Yes
Optical Port	SC
External Power Supply Certifications	CE; FCC; cUL; WEEE
Product Compliance	RoHS; CE (Europe); FCC (USA)
Product Warranty Period (Worldwide)	2-year limited warranty
