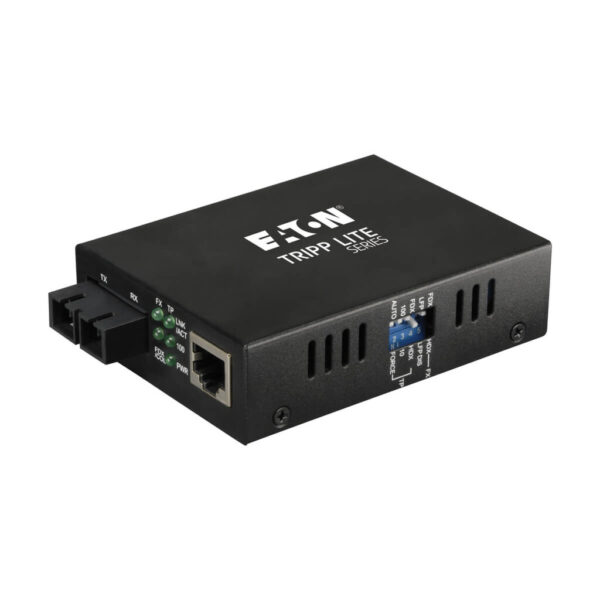

Tripp Lite series Gigabit Multimode Fiber to Ethernet Media Converter, 10/100BaseT to 100BaseFX-SC, 2km, 1310nm

Quick Specs

• Convert UTP Ethernet to Fiber
• Supports Auto MDI/MDI-X
• Half or Full Duplex Operation
• Auto-Senses 10/100
• Supports Multimode 50/125 cable up to 2KM or 62.5/125 cable up to 550M

Overview

The N784-001-SC 10/100 Multimode Media Converter is an economical way to extend the distance (up to 2 kilometers) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. The Media Converter features automatic MDI/MDI-X configuration, and the UTP port senses the network speed automatically as well. DIP switches allow half or full duplex operation on the fiber port. Power supplied by either AC-DC adapter or USB connection ( switch selectable ).

Features

• Connect 10BaseT/100BaseT UTP Ethernet to 100BaseFX Fiber Ethernet
• Auto MDI/MDI-X
• UTP port auto-senses network speed
• Switch selectable half or full duplex operation on the fiber port
• Fiber lengths up to 2Km
• 2 Power Choices – AC-DC Adapter or USB
• 5 LED Function lights
• Uses 62.5/125 or 50/125 Multimode cable
• 3.75″L x 2.75″W x 1″H
• Wavelength: 1310nm
• Supports Link Fault Pass-through (LFP) for easy tracing of network link failures
• Supports Multimode 50/125 cable up to 2KM or 62.5/125 cable up to 550M

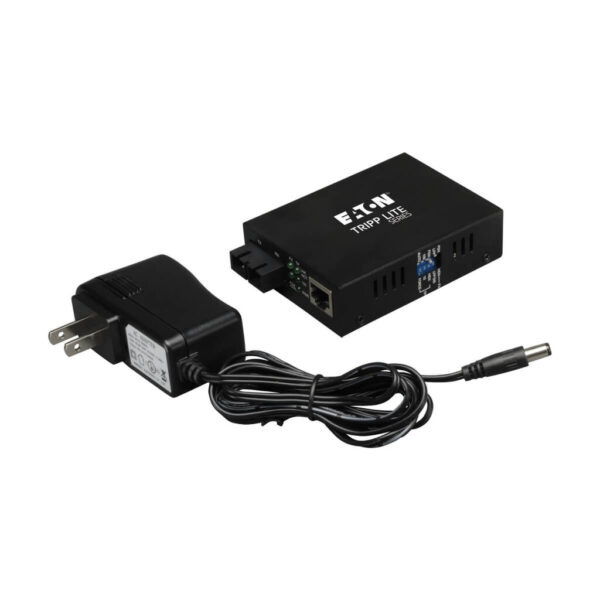

Package Includes

• 10/100 Multimode Media Converter, UTP – SC
• External Power Supply with NEMA 1-15P Plug ( Input: 100-240V )
• Owner’s Manual
