Tripp Lite series Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 to 1000BaseLX SC, 2km, 1310nm

$170.39

Brand: Tripp Lite
Part Number (MPN): N785-001-SC
UPC / GTIN: 037332153777
Datasheet: PDF

Tripp Lite series Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 to 1000BaseLX SC, 2km, 1310nm

Manufacturer Warehouse: 166 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Converts UTP Gigabit Ethernet to Fiber Optic
  • Cost-effective solution for extending network distance up to 2 km
  • Automatic MDI/MDI-X configuration
  • Half or Full Duplex Operation
  • Auto-Senses 10 / 100 / 1000
  • Supports Multimode 50/125 cable up to 2km or 62.5/125 cable up to 400M

Overview

The N785-001-SC Gigabit Multimode Media Converter is an economical way to extend the distance (up to 2 kilometers) of network nodes by converting Cat5/6 UTP cables to Fiber Optic. With advanced features such as selectable half or full duplex operation on the fiber port, 1300 nm wavelength, automatic MDI/MDI-X configuration and link fault pass-through, the N785-001-SC supplies superior signal quality and gives you ultimate network control. The N785-001-SC is compatible with both 62.5/125 and 50/125 multimode fiber cable.

Features

  • Connect 10/100/1000 UTP Ethernet to 1000BaseLX Fiber Ethernet
  • Auto MDI/MDI-X
  • UTP port auto-senses network speed
  • Fiber lengths up to 2Km
  • 6 LED Function lights
  • Uses 62.5/125 or 50/125 Multimode cable
  • 3.75″L x 2.75″W x 1″H
  • Wavelength: 1300nm
  • RoHS Compliant
  • Supports Multimode 50/125 cable up to 2km or 62.5/125 cable up to 400M

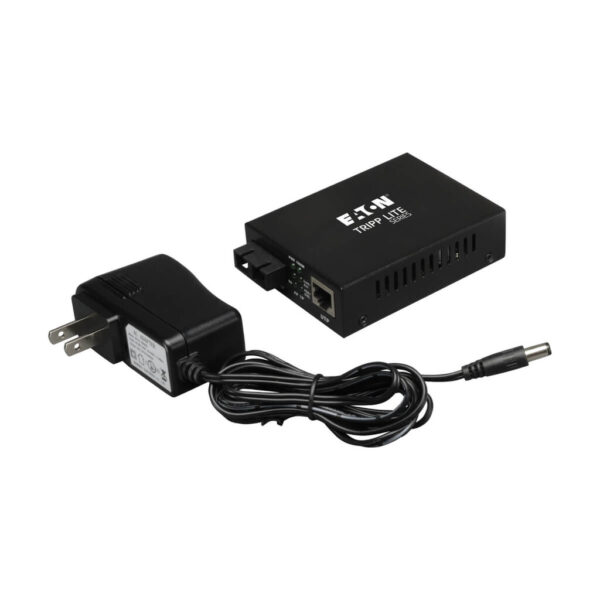

Package Includes

  • N785-001-SC 10/100/1000 to 1000BaseLX Gigabit Multimode Media Converter
  • External Power Supply with NEMA 1-15P Plug ( Input: 110-265V, 50/60Hz, 0.2A; Output: 5V, 2A )
  • Owners Manual
Weight 0.94 lbs
Dimensions 4.92 × 2.17 × 9.25 in
UPC Code

037332153777
Cord Length

4.53
Brand

Product Type

Fiber to Ethernet
Technology

Cat5/5e; Cat6; Multimode
Mode Type

Multimode
Accessories (Included)

External Power Supply (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V/2A)
Network Ports

RJ45 (FEMALE); SC (FEMALE)
AC Power Adapter Plug(s)

NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A)

100-240V / 50/60Hz / 1.2A
AC Power Adapter Output Specs (V / A)

5V / 2A
AC Power Adapter Cord Length (ft.)

4.53
AC Power Adapter Cord Length (m)

1.38
Power Source Type

AC Adapter
AC Adapter

Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 1.2A
DC Barrel Plug

OD: 5.5 x 2.5 x 11mm, Positive Pin, Negative Sleeve
Side A - Connector 1

RJ45 (FEMALE)
Side B - Connector 1

SC DUPLEX (FEMALE)

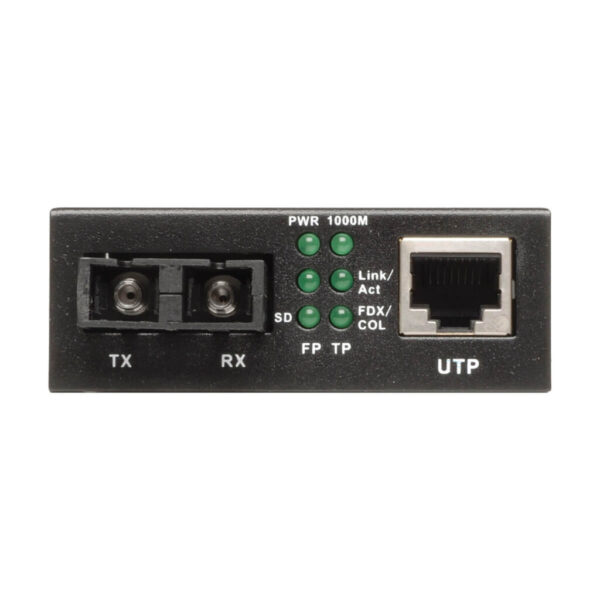

LED Indicators

PWR (Power LED), L/A (Fiber port connection indicator), SD (Fiber signal indicator), SPD (Network speed), TP-L/A (Copper port connection indicator), FDX/COL (Full Duplex/Half Duplex)
Color

Black
Power Cord Color

Black
Shipping Dimensions (hwd / cm)

23.50 x 5.51 x 12.50
Shipping Weight (kg)

0.43
Unit Packaging Type

Box
Unit Weight (kg)

0.45
Housing

Metal
Operating Temperature Range

32° to 140°F (0° to 60°C)
Storage Temperature Range

-4° to 158°F (-20° to 70°C)
Relative Humidity

5% to 90% RH, Non-Condensing
Network Compatibility

10 Mbps; 100 Mbps (Fast Ethernet); 1 Gbps (Gigabit)
Network Speed Details

10 Mbps; 100 Mbps; 1000 Mbps
Wavelength

1310nm
Transmission Distance

2 km
IEEE Standards Supported

802.3; 802.3u; 802.3ab; 802.3z
Wavelength Division Multiplexing (WDM)

Yes
Data Transfer Rate

1 Gbps; 10 Mbps; 100 Mbps
Working Mode

Full/Half Duplex
Auto MDIX Support

Yes
Optical Port

SC
External Power Supply Certifications

CE; FCC; cUL; WEEE
Product Compliance

RoHS; CE (Europe); FCC (USA)
Product Warranty Period (Worldwide)

2-year limited warranty
