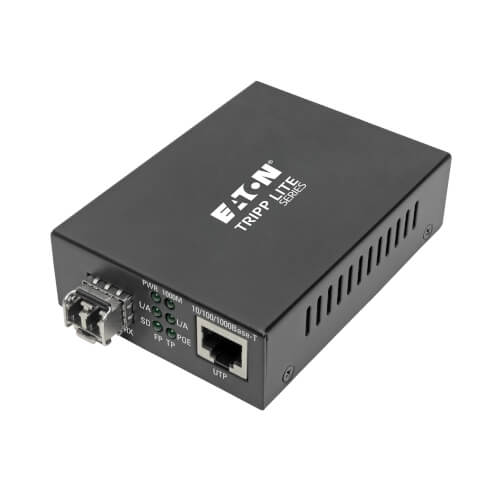

Tripp Lite series Gigabit Multimode Fiber to Ethernet Media Converter, PoE+ – International Power Cables, 10/100/1000 LC, 850 nm, 550 m (1,804 ft.)

Quick Specs

• Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
• Supports multimode fiber optic cable with LC connectors up to 550 m
• RJ45 jack supports auto-MDI/MDIX to bridge various network devices
• LEDs indicate Ethernet and fiber link status at a quick glance
• Link fault pass through lets you quickly identify any faults in the connection

Features

Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber Cable
This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1,804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

Supports Auto-Sensing of Network Speed and Other Advanced Functions
Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.

Completely Plug-and-Play with No Additional Software Required for Connection
The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America, Europe, United Kingdom, Australia) for connecting to an AC outlet with no computer or other signal source needed.

System Requirements

• 10/100/1000 Mbps Gigabit Ethernet network
• Multimode SC fiber optic cabling up to 550 m (1,804 ft.)

Package Includes

• N785-INT-PLCMM1 Gigabit Multimode Fiber to Ethernet Media Converter
• External power supply (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
• (4) International power cables (North America, Europe, U.K., Australia)
• Owner’s manual
