Tripp Lite series Gigabit SFP Fiber to Ethernet Media Converter, POE+ – 10/100/1000 Mbps

Quick Specs

• Extends power (48 VDC) + data (1000 Mbps) to any edge PoE+ device
• Customizable SFP port supports both 1G single- and multimode transceivers
• RJ45 jack supports auto MDI/MDI-X to bridge various network devices
• Supports both full- and half-duplex operation
• Works in tandem with N785-Series non-PoE converters (sold separately)

Features

Customizable Media Converter Extends Power and Data to a PoE+ Device via Fiber Cable This Ethernet extender converts a singlemode or multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-SFP with fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. Works in Tandem with N785-Series (Non-PoE) Media Converters The N785-P01-SFP lets you choose a transceiver that suits your system, while also delivering power to your PoE+ device (N286-01GSX-MDLC and N286-01GLX-SLX transceivers sold separately). It connects to a N785-Series non-PoE media converter using your choice of singlemode or multimode cabling. It also delivers data and power to a 10/100/1000 Mbps PoE device up to 100 meters (328 feet) away using Cat5e/6 cabling (such as N001- or N201-Series cables). Supports Power over Ethernet to Save You Money and Give You More Installation Choices PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings. Supports Auto-Sensing of Network Speed and Other Advanced Functions Monitoring and controlling your network nodes is easy with the N785-P01-SFP’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDI-X configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors all ports to ensure link status remains active. Completely Plug-and-Play with No Additional Software Required for Connection The compact metal converter is easy to install and set up with no software or drivers required. The included power supply connects to a convenient AC outlet with no computer or other signal source needed.

System Requirements

• 10/100/1000 Mbps Gigabit Ethernet network
• Singlemode or multimode transceiver (such as N286-01GSX-MDLC or N286-01GLX-SLX)
• N785-Series media converter (without PoE)

Package Includes

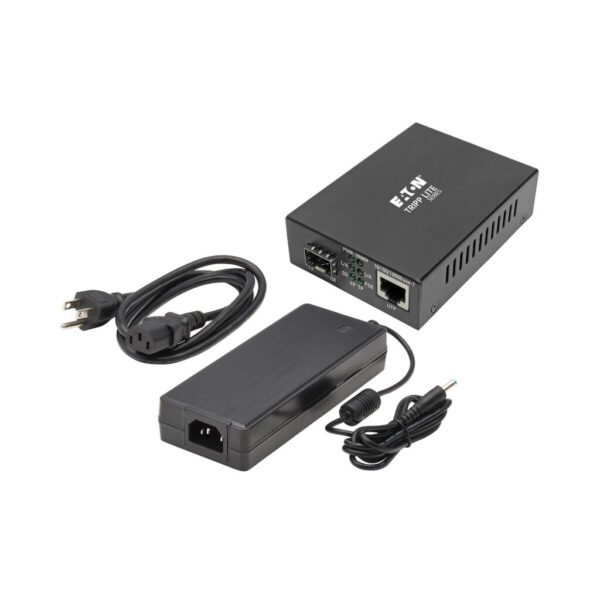

• N785-P01-SFP Gigabit SFP Fiber to Ethernet Extender
• External power supply with 3.6 ft. (1.1 m) cord and NEMA 5-15P plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
• Owner’s manual
