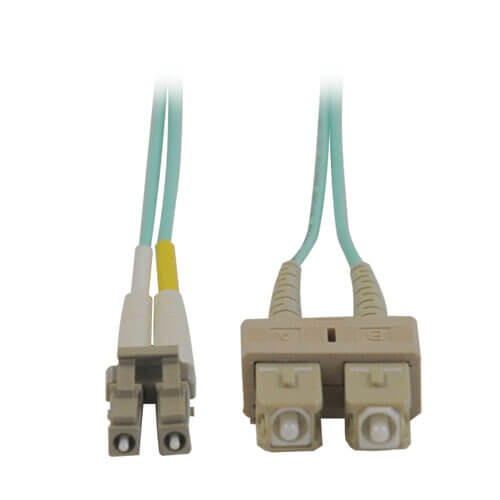

Tripp Lite series 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/SC) – Aqua, 3M (10 ft.)
$20.97
Tripp Lite series 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/SC) – Aqua, 3M (10 ft.)
Manufacturer Warehouse: 1,150 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Designed for 10-Gig Ethernet applications…OM3 Rated
- Backward compatible with existing 50/125 fiber
- Max 10Gb distance of 300 meters @850nm
- Low-Smoke, Zero Halogen (LSZH) Aqua jacket
Features
- 10gb Ethernet speed to 300 meters @850nm, OM3 rated
- Use with VCSEL and LED laser light sources
- High-Speed, High-Bandwidth, Low-Cost
- Backward compatible with legacy LAN’s
- Ideal for Fibre Channel (SAN) applications
- IEEE 802.3ae and TIA LOMMF compliant
Package Includes
- 3 meter Duplex Multimode 50/125 Aqua OM3 Fiber Patch Cable, SC/LC
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 8 × 6 × 0.25 in |
| UPC Code | 037332124838 |
| Cord Length | 9.81 |
| Brand | |
| Technology | Multimode |
| Optical Mode | OM3 |
| Side A - Connector 1 | SC DUPLEX (MALE) |
| Side B - Connector 1 | LC DUPLEX (MALE) |
| Endface Polish | PC |
| Cable Jacket Color | Aqua |
| Connector Color | White; Beige |
| Cable Jacket Material | LSZH |
| Cable Jacket Rating | OFNR |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 50 |
| Number of Fibers | 2 |
| Cable Length (m) | 2.99 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Shipping Dimensions (hwd / cm) | 0.64 x 15.24 x 20.32 |
| Shipping Weight (kg) | 0.05 |
| Fiber Cable Length | 3M (9.8 ft) |
| Operating Temperature Range | -4° to 140°F (-20° to 60°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
| Network Compatibility | 1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps |
| Attenuation @ 850NM | 3.0 dB/km |
| Insertion Loss | LC ≤ 0.20 dB; SC ≤ 0.20 dB |
| Product Compliance | RoHS; REACH |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
