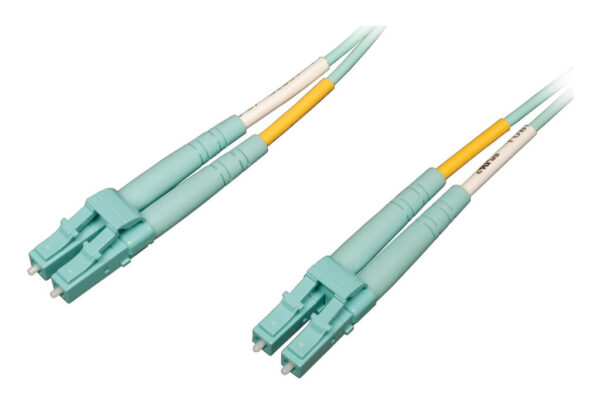

Tripp Lite series 100G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable (LC/LC), Aqua, 25 m

Name: Tripp Lite series 100G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable (LC/LC), Aqua, 25 m
Brand: Tripp Lite
SKU: N820-25M-OM4
Price: 99.77 CAD
Availability: InStock

$99.77

Brand: Tripp Lite

Part Number (MPN): N820-25M-OM4

UPC / GTIN: 037332190819

Datasheet: PDF

Tripp Lite series 100G Duplex Multimode 50/125 OM4 LSZH Fiber Optic Cable (LC/LC), Aqua, 25 m

Manufacturer Warehouse: 527 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

40/100 Gb Ethernet speed up to 300 m (@ 850 nm)
Nearly 10x the bandwidth of conventional 62.5 um multimode fiber
50/125 duplex glass fiber construction
Low-smoke zero-halogen aqua jacket
Dual male LC connectors meet insertion loss standards

Overview

The N820-25M-OM4 10 Gb/100 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable is OM4-rated for use with 40/100 Gb Ethernet applications up to 300 meters (@ 850 nm). For fast, clear signal transmission through your local area network (LAN) or storage area network (SAN), this high-speed, low-cost cable provides ten times more bandwidth than conventional 62.5 µm multimode fiber and performance rivaling that of singlemode cable.

Backward compatible with existing 50/125 fiber, the aqua-colored N820-25M-OM4 is manufactured using top-quality materials. Dual male LC connectors are widely compatible and thoroughly tested to meet stringent insertion loss standards. It has 50/125 duplex (zipcord) fiber made from glass and a low-smoke zero-halogen (LSZH) jacket, which limits the amount of toxic smoke emitted in case of combustion, making this cable perfect for poorly ventilated areas.

This laser-optimized multimode fiber (LOMMF) cable is ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers. It’s commonly used with vertical-cavity surface-emitting laser (VCSEL) and LED laser light sources. Complies with IEEE 802.3ae and TIA LOMMF standards.

Features

OM4-Rated for 40/100 Gb Ethernet Applications

Allows 40/100 Gb serial transmission up to 300 m (@ 850 nm)
Provides 10x more bandwidth than conventional 62.5 µm multimode fiber
Backward compatible with existing 50/125 fiber
Meets current IEEE 802.3ae and TIA LOMMF standards
Ideal for LANs, SANs and high-speed parallel interconnects for head-ends, central offices and data centers
Commonly used with VCSEL and LED laser light sources

Error-Free Signal Transfer

50/125 duplex glass fiber construction
Low-smoke zero-halogen jacket
Sturdy dual LC male connectors meet insertion loss standards
Aqua-colored for identification as a 10 Gb cable

Package Includes

N820-25M-OM4 10 Gb/100 Gb Duplex Multimode 50/125 OM4 LSZH Fiber Patch Cable, 25 m (82 ft.)

Weight	0.4 lbs
Dimensions	0.5 × 10.5 × 12 in
UPC Code	037332190819
Cord Length	82.02
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM4
Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	LC DUPLEX (MALE)
Endface Polish	PC
Cable Jacket Color	Aqua
Connector Color	Aqua
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	50
Number of Fibers	2
Cable Length (m)	25.00
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	30.48 x 26.67 x 1.27
Shipping Weight (kg)	0.18
Fiber Cable Length	25M (82 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	1 Gbps (Gigabit); 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	≤ 0.20 dB
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
