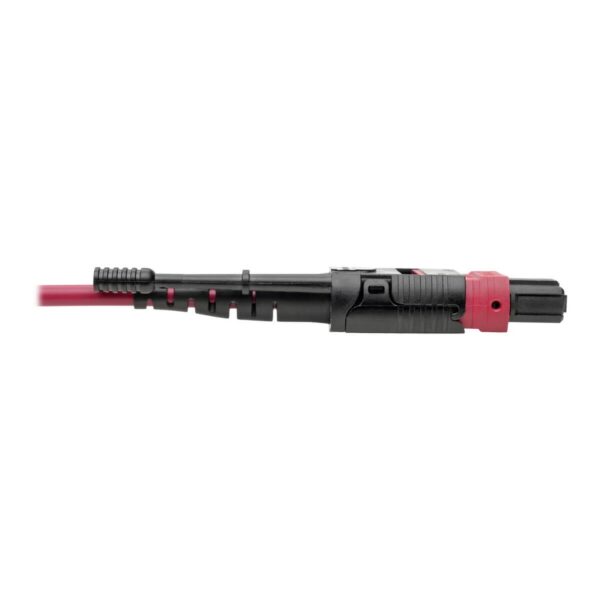

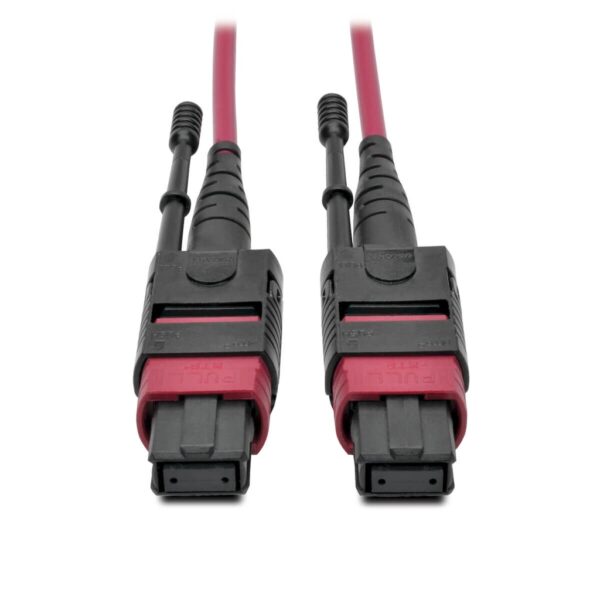

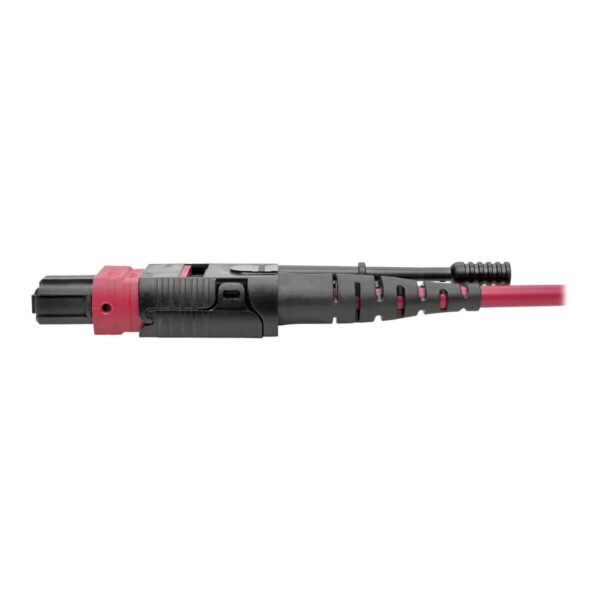

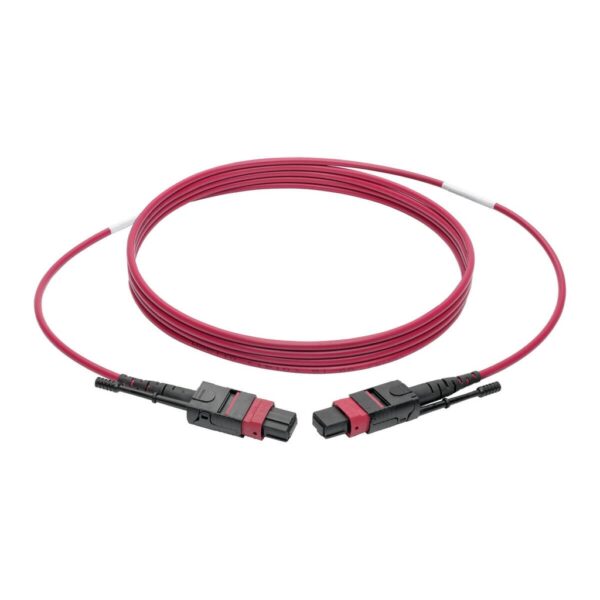

Tripp Lite series 100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 1 m

Tripp Lite series 100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 1 m

Name: Tripp Lite series 100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 1 m
Brand: Tripp Lite
SKU: N845-01M-12-MG
Price: 215.95 CAD
Availability: InStock

$215.95

Brand: Tripp Lite

Part Number (MPN): N845-01M-12-MG

UPC / GTIN: 037332200266

Datasheet: PDF

Tripp Lite series 100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 1 m

Manufacturer Warehouse: 58 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Push/pull tab connectors install/remove with one hand

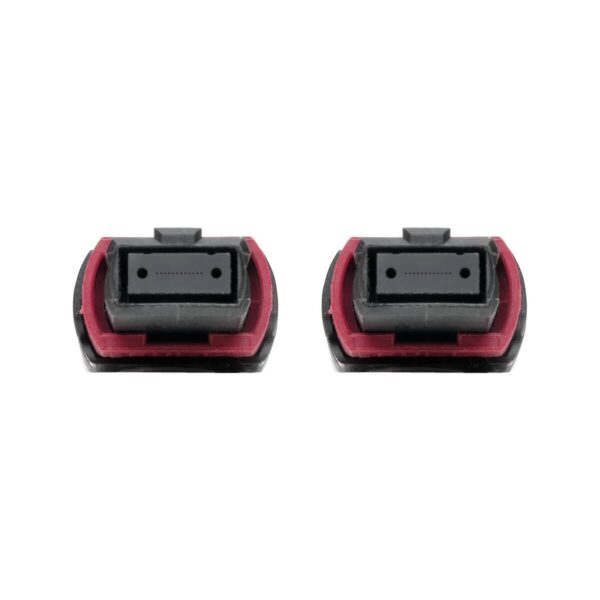

12-fiber MTP/MPO connectors with 12x density of SC connectors
100% tested for low insertion loss and back reflection
50/125 OM4-rated multimode fiber
Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
Magenta color for easy OM4 identification

Overview

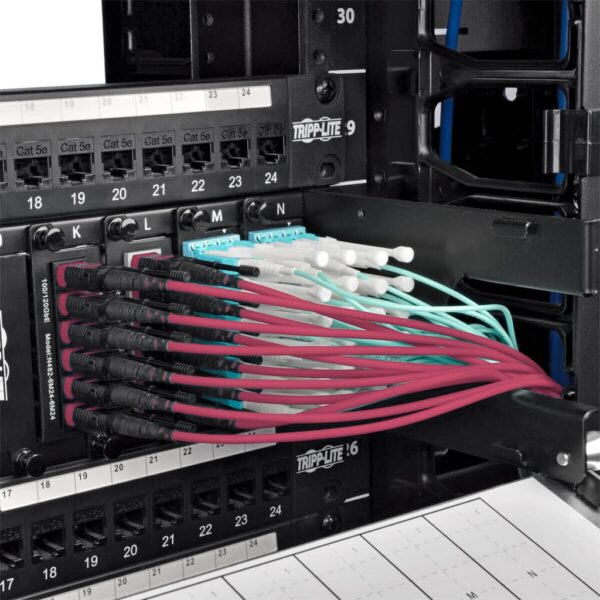

The one-meter N845-01M-12-MG MTP/MPO Multimode Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. With two female MTP/MPO connectors, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDF (intermediate distribution frames). It’s colored magenta for instant identification as an OM4 cable. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.

The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up circuit card and rack space for other cables. The cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts.

Features

OM4-Rated for 40/100 Gb Ethernet Applications

Designed to extend high-density connections between network equipment in telecommunication rooms and data centers
Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
Backward compatible with existing 50/125 fiber
Magenta-colored for identification as an OM4 cable

MTP/MPO Connectors with Push/Pull Tabs

12-fiber female connectors 12 times denser than SC connectors
Push/pull tab connectors easy to install and remove with one hand
100% tested for low insertion loss and back reflection

Error-Free Signal Transfer

50/125 duplex glass fiber construction
Plenum-rated jacket perfect for ceilings, walls and ducts

Package Includes

N845-01M-12-MG MTP/MPO Multimode Patch Cable, Magenta, 1 m

Weight	0.047 lbs
Dimensions	9 × 7 × 0.5 in
UPC Code	037332200266
Cord Length	3.31
Brand	Tripp Lite
Technology	Multimode
Optical Mode	OM4
Side A - Connector 1	12F MPO (FEMALE)
Side B - Connector 1	12F MPO (FEMALE)
Endface Polish	PC
Polarity	Type B (cross)
Cable Jacket Color	Magenta
Connector Color	Magenta; Black
Cable Jacket Material	PVC
Cable Jacket Rating	OFNP
Clad Diameter (microns)	125
Core Diameter (microns)	50
Number of Fibers	12
Cable Length (m)	1.01
Minimum Bend Radius	20 mm (Dynamic); 10 mm (Static)
Shipping Dimensions (hwd / cm)	1.27 x 17.78 x 22.86
Shipping Weight (kg)	0.02
Fiber Cable Length	1M (3.3 ft)
Operating Temperature Range	-4° to 140°F (-20° to 60°C)
Storage Temperature Range	-4° to 140°F (-20° to 60°C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing
Network Compatibility	40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 850NM	3.0 dB/km
Insertion Loss	≤ 0.35 dB
Push/Pull Tabs	Yes
Product Compliance	RoHS; REACH
Product Warranty Period (Worldwide)	Lifetime limited warranty
