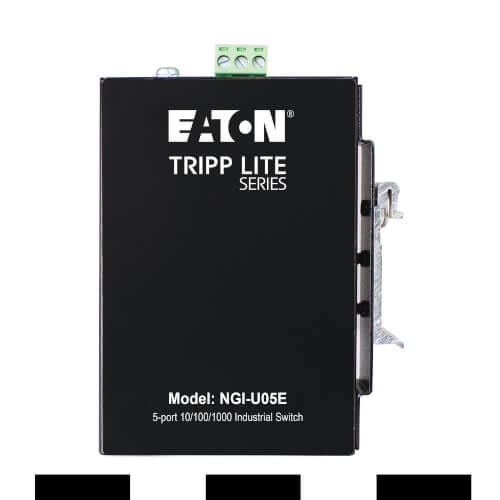

Tripp Lite series 5-Port Unmanaged Industrial Gigabit Ethernet Switch – 10/100/1000 Mbps, Ruggedized, -40° to 75°C, iQoS, DIN/Wall Mount, TAA

Quick Specs

• 5 auto-negotiable 10/100/1000 Mbps RJ45 ports connect devices over a LAN
• Supports Intelligent QoS for PROFINET, EtherNet/IP and IEC 61850 GOOSE traffic
• Industrial-grade switch supports operating temperature range of -40° to 75°C
• Easy-to-read LEDs indicate connection and activity status for all Ethernet ports
• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

5-Port Unmanaged Gigabit Ethernet Switch Connects Your Devices to a LAN
This space-saving switch with EIP QoS transmits data over a Gigabit Ethernet network. Five auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Supports Intelligent QoS for PROFINET, EtherNet/IP and IEC 61850 GOOSE Traffic
Eaton’s iQoS (Intelligent Quality of Service) is designed to support PROFINET, Ethernet/IP (EIP) and GOOSE traffic by ensuring reliable and consistent data delivery in industrial networks. Based on the characteristics of aforementioned industrial protocol communication, iQoS automatically recognizes and prioritizes traffic with industrial protocol mentioned to maintain stable network performance under normal operating conditions. This built-in mechanism helps ensure deterministic behavior for critical industrial data streams without requiring user configuration, making it well suited for plug-and-play deployments in OT environments. Note: While Eaton devices such as the NGI-U05A support automatic QoS handling through iQoS, they do not provide manual traffic classification or port-level priority configuration. For applications requiring customized traffic policies—managed network switch with advanced QoS functionality should be deployed.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NGI-U05E adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05E supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Flexible Mounting Options
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted vertically or horizontally using the rear mounting holes. A 3-pin 12–48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.

TAA-Compliant for GSA Schedule Purchases
The NGI-U05E is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Package Includes

• NGI-U05E 5-Port Unmanaged Industrial Gigabit Ethernet Switch
• DIN rail-mounting clip (pre-installed)
• Wall-mounting bracket (pre-installed)
• Owner’s manual
