Tripp Lite series OmniSmart 120V 330VA 225W UL 60601-1 Medical Grade Line-Interactive UPS, Tower, DB9 Serial

Quick Specs

• 330VA line interactive tower UPS
• Maintains sine-wave 120V nominal output over an input range of 83 to 132V
• Professional features include serial port, hospital grade plug and outlets, built-in isolation transformer and UL60601-1 listing

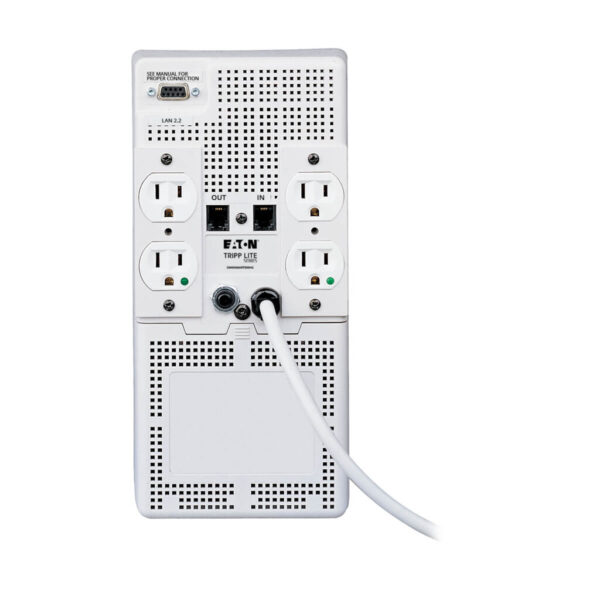

• Input: Hospital-grade NEMA 5-15P (120V 15A) / Output: 4 Hospital-grade NEMA 5-15R (120V)
• 2 line phone suppression for TEL/DSL line protection
• Leakage current less than 100 microamps
• Approved for use within the Patient Care Vicintiy
• Approved to EN60601-1-2:2015 and IEC60601-1-2:2014, 4th Edition

Overview

OMNISMART350HG offers medical-grade UPS protection with built-in line-interactive voltage regulation, intelligent monitoring and unattended shutdown capability. Hospital-grade plug and outlets, plus built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise equal to 100 microamps. UL 60601-1 listed as medical electrical equipment. 330VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power failures. Line-interactive voltage regulation corrects brownouts as low as 83V back to normal 120V levels, saving battery reserves for use only during complete power failures. Includes two-line phone surge suppression and built-in DB-9 communications port that works with PowerAlert® software and cabling to provide automatic unattended shutdown of connected network and PC applications.Application Usage This UPS contains a lead acid battery designed to be connected continuously to an AC power source, except during brief power outages. It is not intended for frequent charge/discharge cycles, such as mobile cart applications where the UPS is often disconnected from the power source. Using the OMNISMART350HG in this type of application will void the battery warranty.

Features

• Ideal UPS protection for applications in medical patient-care areas where UL 60601-1 listed electrical medical equipment is required
• Line-interactive voltage regulation corrects brownouts as low as 83V without using battery power
• Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections
• Full line isolation prevents shock potential and operational problems in sensitive electronic equipment
• Resistant to electrostatic discharge
• Supports loads up to 330VA/225 watts
• 46 minutes half load runtime (with 165VA load), 18 minutes full load runtime (with 330VA load)
• 4 protected hospital-grade outlets; 6-ft. cord
• 1-DB9 serial port for network interface
• Complete surge protection, line isolation and EMI/RFI noise filtering
• 2 phone line surge suppression for modems, fax machines and other phone accessories
• Complete remote monitoring cabling included, PowerAlert UPS management software available via free download

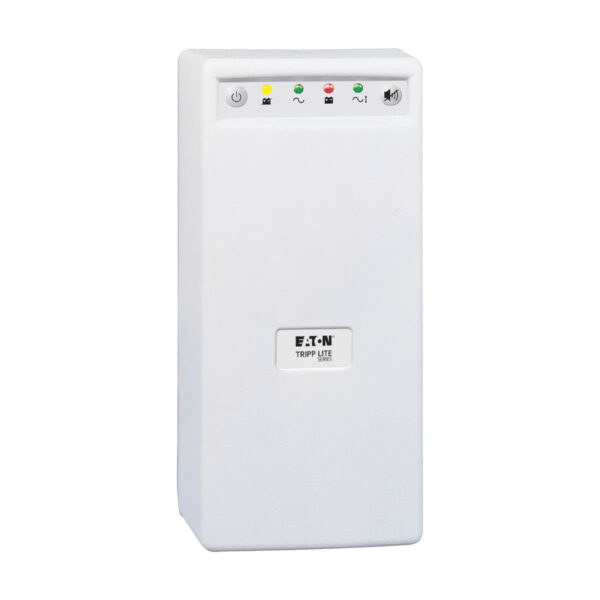

• 4 diagnostic LEDs indicate AC present, on battery, voltage correction & battery low/replace
• Battery replacement door and back panel grounding lug

Package Includes

• OMNI SMART 350HG Hospital Grade UPS System
• Serial cable for remote monitoring
• Warranty information
• Instruction manual
