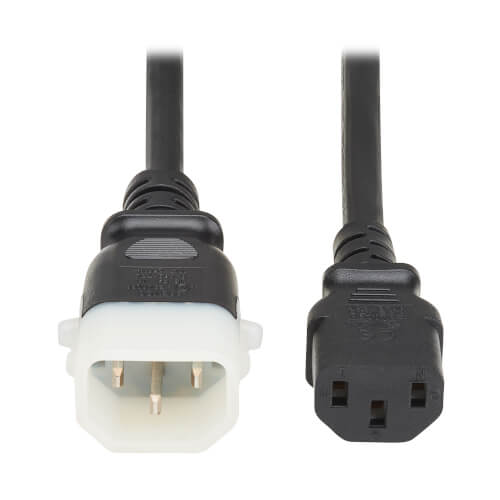

Tripp Lite series PDU Power Cord, C13 to P-Lock C14 – North America and Europe Rated, 10A, 250V, 18AWG, 6 ft. (1.83m), Black

$45.33

Brand: Tripp Lite
Part Number (MPN): P004-E06
UPC / GTIN: 037332292957
Datasheet: PDF

Tripp Lite series PDU Power Cord, C13 to P-Lock C14 – North America and Europe Rated, 10A, 250V, 18AWG, 6 ft. (1.83m), Black

Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Provides power to a computer, server or other device frequently connected to a PDU in a data center rack or cabinet
  • P-Lock C14 connector forms a secure connection with a compatible PDU, including Eaton PDUs with C39 outlets
  • Locking tabs prevents accidental disconnects which cause costly downtime in a crowded rack enclosure
  • Compliant with UL and VDE standards for international application use

Features

P-Lock C14-to-C13 Power Cable Connects Computers, Printers, Servers and Other Equipment This IEC-320-C14 to IEC-320-C13 cable is designed for small data center, office workstation and other lower-amp applications. The C14 male to C13 female cord can be used to power a computer, server or monitor; attach a server or drive to a UPS system or PDU; or extend an existing connection up to 6-ft. (1.83 m).   P-Lock Connector Reduces Risk of Costly Downtime Plug the P004-E06’s P-Lock C14 connector into a compatible PDU, such as Eaton’s line of PDUs with P-Lock C13 and C39 outlets, for a secure connection that reduces the risk of accidental disconnections in a crowded rack enclosure or cabinet. Locking tabs on either side of the connector click into place for a secure connection.

Package Includes

  • P004-E06 P-Lock C14 Male to C13 Female Power Cable, 6-ft. (1.83 m), Black
Weight 0.52 lbs
Dimensions 0.5 × 7.09 × 10 in
UPC Code

037332292957

Cord Length

6

Max Input Amps

10

Brand

Product Type

PDU Extension Power Cord

Device Compatibility

Computer; Server; Network Switch; UPS; PDU

Country/Region

Global

Voltage Compatibility (VAC)

250

Side A - Connector 1

IEC-320-C14

Side B - Connector 1

IEC-320-C13

Connector Style

Straight

Color

Black

Plug Color

Black

Cable Jacket Color

Black

Connector Color

Black

Cable Jacket Material

PVC

Cable Jacket Rating

H05VV-F; SJT; VW-1

Power Cord Jacket Type

SJT + H05VV-F

Cable Outer Diameter (OD)

7.0mm

Number of Conductors

3

Wire Gauge (OD - mm²)

1.0

Power Cord Color

Black

Cable Length (m)

1.83

Shipping Weight (kg)

0.37

Operating Temperature Range

23° to 158°F (-5° to 70°C)

Storage Temperature Range

14° to 140°F (-10° to 60°C)

Relative Humidity

35 TO 85% RH, Non-Condensing

High Voltage

Yes

Locking Plug

Yes

Locking Power Cord

Yes

P-Lock Power Cord

Yes

Locking

Yes

Product Certifications

cUL Listed; UL Listed

Product Compliance

CE (Europe); REACH; RoHS3; UKCA; WEEE

Product Warranty Period (Worldwide)

Lifetime limited warranty
