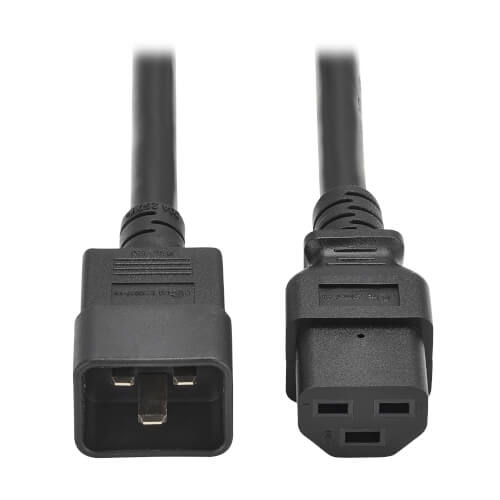

Tripp Lite series Power Cord, C20 to C21 – Heavy-Duty, 20A, 250V, 12 AWG, 2.5 ft. (0.76 m), Black
$14.53
Tripp Lite series Power Cord, C20 to C21 – Heavy-Duty, 20A, 250V, 12 AWG, 2.5 ft. (0.76 m), Black
Manufacturer Warehouse: 224 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- Recommended for powering switches, servers and other high-powered network devices
- 20A C21/C20 connectors support temperatures up to 221°F (105°C) frequent in rack enclosures
- Thick 12 AWG wire manages high power levels required for larger equipment
- 2.5 ft. length allows flexibility in mounting devices in a rack while avoiding cable clutter
Features
20A C20-to-C21 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable, including AI/machine-learning data centers. The 2.5-foot (0.76-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU or UPS in a crowded rack enclosure.
Recommended for High-Temperature Environments
The P035-2P5 can be used to connect a blade server, large router or network switch with a C22 inlet, usually found on high-powered, high-temperature (overall operating temperature maximum 105°C/221°F) equipment, to a PDU or UPS system. It’s an ideal upgrade to a power cord with improved temperature threshold for data center applications in which temperature control and fire safety are high priorities.
Package Includes
P035-2P5 Power Cord, C20 to C21, 2.5 ft. (0.76 m), Black
| Weight | 0.55 lbs |
|---|---|
| Dimensions | 0.5 × 8.86 × 12.8 in |
| UPC Code | 037332293152 |
| Cord Length | 2.49 |
| Max Input Amps | 20 |
| Brand | |
| Product Type | PDU Extension Power Cord |
| Device Compatibility | Network Switch; PDU; UPS |
| Country/Region | North America |
| Voltage Compatibility (VAC) | 250 |
| Side A - Connector 1 | IEC-320-C20 |
| Side B - Connector 1 | IEC-320-C21 |
| Connector Style | Straight |
| Color | Black |
| Plug Color | Black |
| Cable Jacket Color | Black |
| Connector Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | FT2; VW-1 |
| Power Cord Jacket Type | SJT |
| Cable Outer Diameter (OD) | 11mm |
| Number of Conductors | 3 |
| Wire Gauge (OD - mm²) | 3.31 |
| Power Cord Color | Black |
| Cable Length (m) | 0.76 |
| Shipping Dimensions (hwd / cm) | 32.51 x 22.50 x 1.27 |
| Shipping Weight (kg) | 0.28 |
| Unit Weight (kg) | 0.28 |
| Operating Temperature Range | -4° to 221°F (-20° to 105°C) |
| Storage Temperature Range | -4° to 221°F (-20° to 105°C) |
| Operating Humidity Range | 10% TO 65% RH, NON-CONDENSING |
| Storage Humidity Range | 10% TO 65% RH, NON-CONDENSING |
| High Voltage | Yes |
| Product Certifications | cUL Listed; UL Listed |
| Product Compliance | WEEE |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
