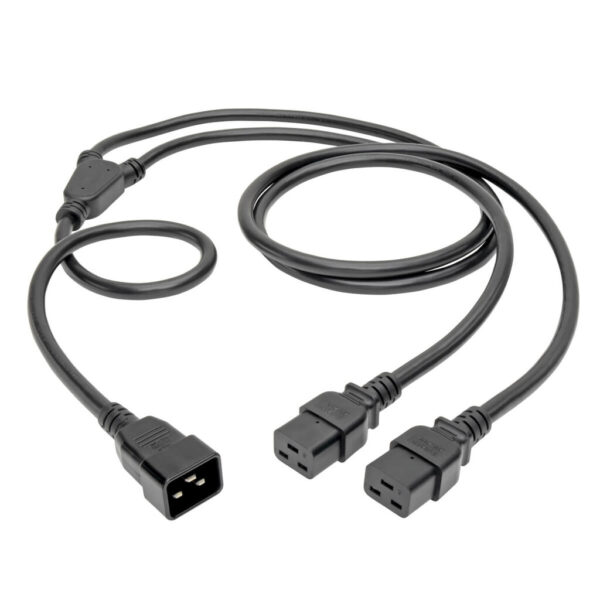

Tripp Lite series Power Extension Cord/Splitter, 2 x C19 to C20 Y Splitter – Heavy-Duty, 20A, 250V, 12 AWG, 6 ft. (1.83 m), Black

$60.66

Brand: Tripp Lite
Part Number (MPN): P036-006-2C19
UPC / GTIN: 037332156549
Datasheet: PDF

Tripp Lite series Power Extension Cord/Splitter, 2 x C19 to C20 Y Splitter – Heavy-Duty, 20A, 250V, 12 AWG, 6 ft. (1.83 m), Black

Status: On Backorder (Contact us for lead times)
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Connects 2 devices to one AC outlet to save space and reduce cable clutter
  • Recommended for powering servers, routers and other high-output network devices
  • 6-ft. (1.83 m) length allows flexibility in placing devices in relationship to AC outlet
  • C20 to C19 cord replaces or upgrades standard power cord provided by manufacturer
  • Thick 12 AWG wire gauge manages high power levels required for larger equipment

Features

Heavy-Duty Y-Style Splitter Cable Connects 2 Devices with C20 Inlets to One C19 OutletThis heavy-duty splitter extension cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This cord features a C20 plug for connecting to an AC power source and two C19 pigtails for connecting to devices. By connecting two devices to one outlet, the power cord splitter frees up space in a PDU, UPS system or surge protector and helps reduce cable clutter. The 6-ft. (1.83 m) length allows you flexibility in placing equipment with respect to the power outlet.Dual IEC Cable Powers a Wide Variety of Essential ElectronicsWith this 20A power splitter, a single C19 outlet can power two high-output devices, such as servers, routers, blade server chassis and other equipment compatible with a C19 connector. Ideal for areas where AC outlets are limited, such as rack cabinets, this cable is compatible with most power and extension cords.

Package Includes

  • P036-006-2C19 2x C19 to C20 Y Splitter Heavy-Duty Power Extension Cord, 6-ft. (1.83 m), Black
Weight 0.9 lbs
Dimensions 8.5 × 5.6 × 1 in
UPC Code

037332156549

Cord Length

6

Max Input Amps

20

Brand

Product Type

Splitter

Device Compatibility

Server; Router; Network Switch; UPS; PDU

Country/Region

North America

Voltage Compatibility (VAC)

250

Side A - Connector 1

IEC-320-C20

Side B - Connector 1

(2) IEC-320-C19

Connector Style

Straight

Color

Black

Plug Color

Black

Cable Jacket Color

Black

Connector Color

Black

Cable Jacket Material

PVC

Cable Jacket Rating

VW-1

Power Cord Jacket Type

SJT

Cable Outer Diameter (OD)

11.2mm

Number of Conductors

3

Wire Gauge (OD - mm²)

3.31

Power Cord Color

Black

Cable Length (m)

1.83

Shipping Dimensions (hwd / cm)

2.54 x 14.22 x 21.59

Shipping Weight (kg)

0.41

Operating Temperature Range

14° to 140°F (-10° to 60°C)

Storage Temperature Range

14° to 140°F (-10° to 60°C)

Operating Humidity Range

35% to 85% RH, Non-Condensing

Storage Humidity Range

35% to 85% RH, Non-Condensing

High Voltage

Yes

Product Certifications

cUL Listed; UL Listed

Product Warranty Period (Worldwide)

Lifetime limited warranty
