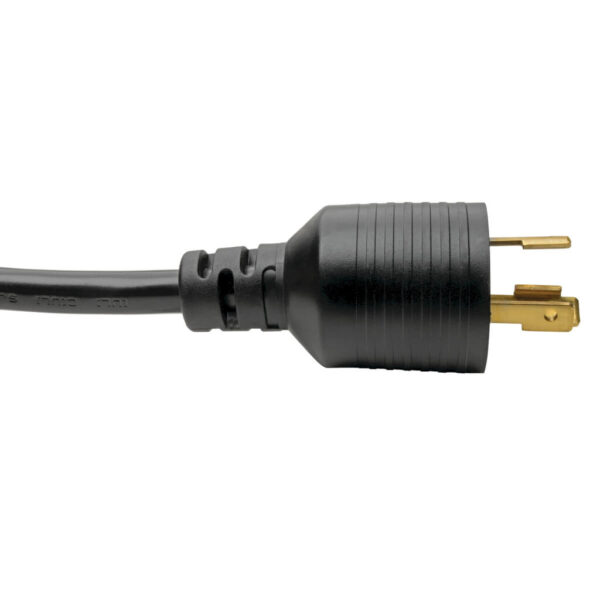

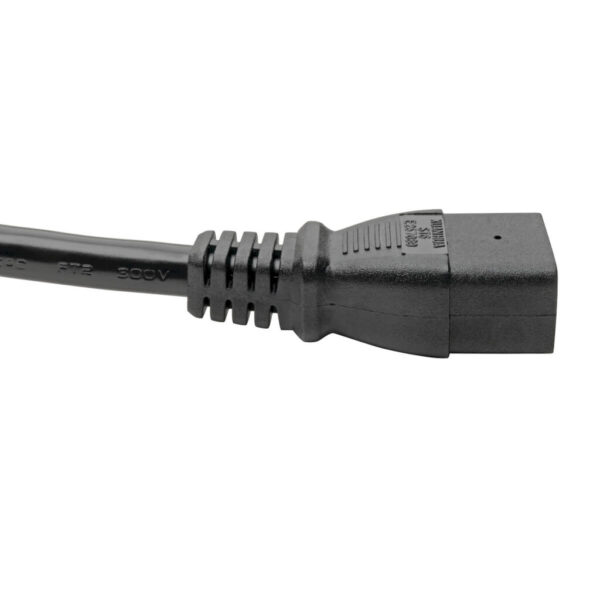

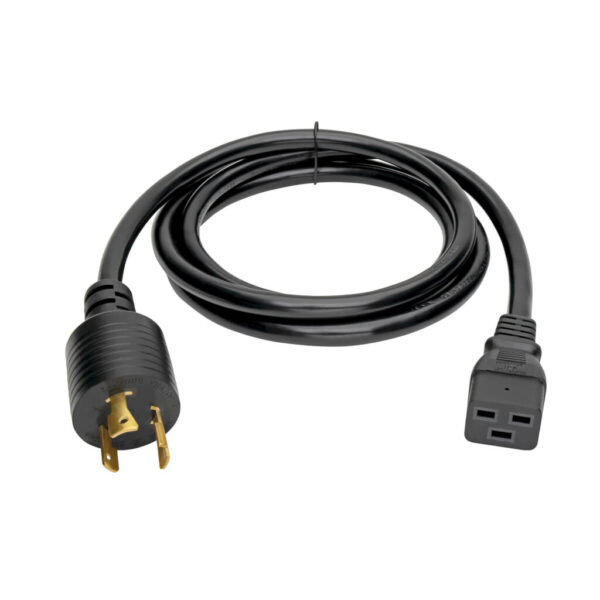

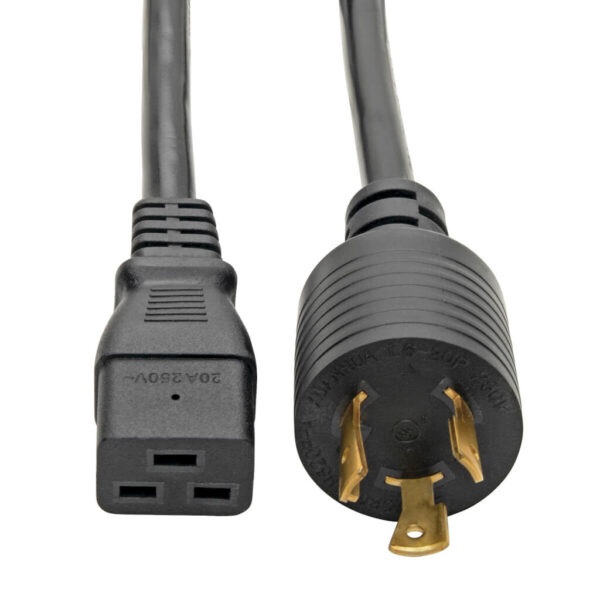

Tripp Lite series Power Cord, C19 to NEMA L6-20 – Heavy-Duty, 20A, 250V, 12 AWG, 12 ft. (3.66 m), Black

$48.97

Brand: Tripp Lite
Part Number (MPN): P040-012
UPC / GTIN: 037332180681
Datasheet: PDF

Tripp Lite series Power Cord, C19 to NEMA L6-20 – Heavy-Duty, 20A, 250V, 12 AWG, 12 ft. (3.66 m), Black

Manufacturer Warehouse: 302 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Recommended for powering servers, switches and other essential network devices
  • L6-20 Locking connector maintains secure link to avoid loss of power and costly downtime
  • Thick 12 AWG wire gauge manages high power levels required for larger equipment
  • C19 to L6-20P power cord is ideal replacement for worn-out or missing cable
  • Extra-long 12-ft. (3.66 m) cord provides flexibility in placing connected device away from outlet

Features

C19 to L6-20P Power Cable for Network Devices That Require a Heavy-Gauge ConnectionThis 12 AWG power cable is designed for servers, routers, network switches, blade server enclosures and other devices that require a heavy-gauge connection capable of managing high power levels. The fully molded C19 end connects to your device’s C20 inlet, and the fully molded NEMA L6-20P plug connects to an AC power source up to 12-ft. (3.66 m) away. The 12-ft. (3.66 m) length allows you great flexibility in placing equipment with respect to the power outlet. Locking Connector Helps Prevent Accidental Disconnection and Expensive DowntimeHaving a cable come loose accidentally can mean the loss of power and costly downtime. The locking NEMA L6-20P connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking connector is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the heavy-duty power cable always stays connected.

Package Includes

  • P040-012 C19 to L6-20P Power Cord, 12-ft. (3.66 m), Black
Weight 2.2 lbs
Dimensions 0.1 × 7.9 × 7.1 in
UPC Code

037332180681

Cord Length

12.01

Max Input Amps

20

Brand

Product Type

PDU Extension Power Cord

Device Compatibility

Server; Router; Network Switch; UPS; PDU

Country/Region

North America

Voltage Compatibility (VAC)

250

Side A - Connector 1

NEMA L6-20P

Side B - Connector 1

IEC-320-C19

Connector Style

Straight

Color

Black

Plug Color

Black

Cable Jacket Color

Black

Connector Color

Black

Cable Jacket Material

PVC

Cable Jacket Rating

VW-1

Power Cord Jacket Type

SJT

Cable Outer Diameter (OD)

11.2mm

Number of Conductors

3

Wire Gauge (OD - mm²)

3.31

Power Cord Color

Black

Cable Length (m)

3.66

Shipping Dimensions (hwd / cm)

18.03 x 20.07 x 0.25

Shipping Weight (kg)

1.00

Unit Weight (kg)

1.00

Operating Temperature Range

23° to 140°F (-5° to 60°C)

Storage Temperature Range

-4° to 176°F (-20° to 80°C)

Operating Humidity Range

0% to 90% RH, Non-Condensing

Storage Humidity Range

0% to 90% RH, Non-Condensing

High Voltage

Yes

Locking Plug

Yes

Locking Power Cord

Yes

Locking

Yes

Product Certifications

cUL Listed; UL Listed

Product Compliance

RoHS

Product Warranty Period (Worldwide)

Lifetime limited warranty
