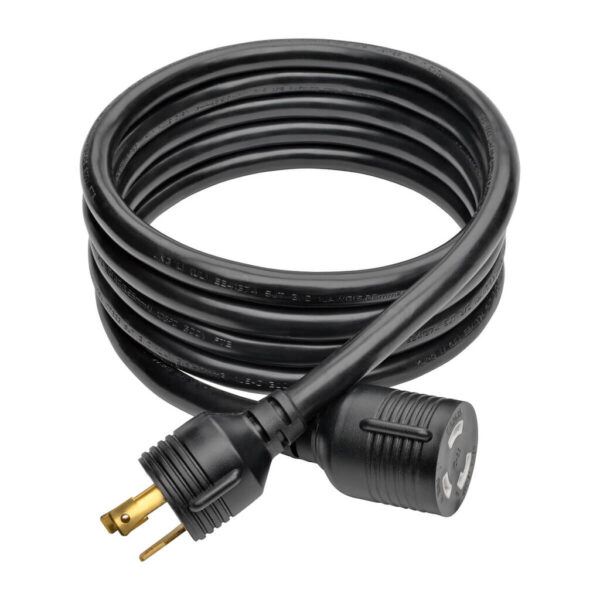

Tripp Lite series Power Extension Cord, NEMA L5-30P to NEMA L5-30R- Heavy-Duty, 30A, 125V, 10 AWG, 10 ft. (3.05 m), Black, Locking Connectors

$62.18

Brand: Tripp Lite
Part Number (MPN): P046-010-LL-30A
UPC / GTIN: 037332200945
Datasheet: PDF

Tripp Lite series Power Extension Cord, NEMA L5-30P to NEMA L5-30R- Heavy-Duty, 30A, 125V, 10 AWG, 10 ft. (3.05 m), Black, Locking Connectors

Toronto Stock: 6 available
Manufacturer Warehouse: 251 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Recommended for powering computers, servers and other network devices
  • 10-ft. (3.05 m) length allows flexibility in placing devices in relationship to AC outlet
  • Heavy-duty cord replaces or upgrades standard power cord provided by manufacturer
  • Thick 10 AWG wire gauge manages high power levels required for larger equipment
  • Locking connectors maintain secure link to avoid loss of power and costly downtime

Features

Heavy-Duty Extension Cable for Network Devices That Require a Heavy-Gauge ConnectionThis cord features 10 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It can be used to connect a computer, server or other device with a NEMA L5-30P plug to a wall outlet, PDU or UPS system with a NEMA L5-30R outlet. The six-foot length allows you flexibility in placing equipment with respect to the power outlet.Locking Connectors Help Prevent Accidental Disconnection and Expensive DowntimeHaving a cable come loose accidentally can mean the loss of power and costly downtime. Locking connectors on each end help you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.

Package Includes

  • P046-006-LL-30A L5-30P to L5-30R Heavy-Duty Extension Cord, 10 ft., Black, Locking Connectors
Weight 2.6 lbs
Dimensions 14.7 × 10 × 0.5 in
UPC Code

037332200945

Cord Length

10.01

Max Input Amps

30

Brand

Product Type

PDU Extension Power Cord

Device Compatibility

UPS; PDU

Country/Region

North America

Voltage Compatibility (VAC)

125

Side A - Connector 1

NEMA L5-30P

Side B - Connector 1

NEMA L5-30R

Connector Style

Straight

Color

Black

Plug Color

Black

Cable Jacket Color

Black

Connector Color

Black

Cable Jacket Material

PVC

Cable Jacket Rating

VW-1

Power Cord Jacket Type

SJT

Cable Outer Diameter (OD)

14.6mm

Number of Conductors

3

Wire Gauge (OD - mm²)

5.26

Power Cord Color

Black

Cable Length (m)

3.05

Cable Length (cm)

304.80

Shipping Dimensions (hwd / cm)

1.27 x 25.40 x 37.34

Shipping Weight (kg)

1.18

Unit Weight (kg)

1.18

Operating Temperature Range

14° to 140°F (-10° to 60°C)

Storage Temperature Range

14° to 140°F (-10° to 60°C)

Operating Humidity Range

35% to 85% RH, Non-Condensing

Storage Humidity Range

35% to 85% RH, Non-Condensing

Locking Plug

Yes

Locking Power Cord

Yes

Locking

Yes

Product Certifications

cUL Listed; UL Listed

Product Compliance

RoHS

Product Warranty Period (Worldwide)

Lifetime limited warranty
