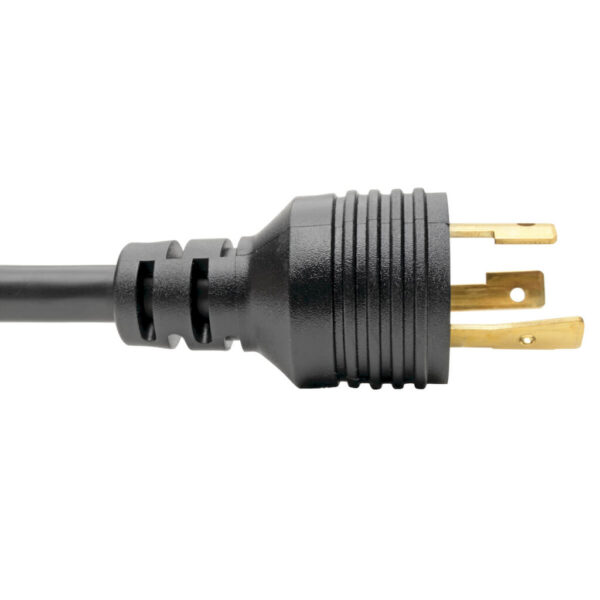

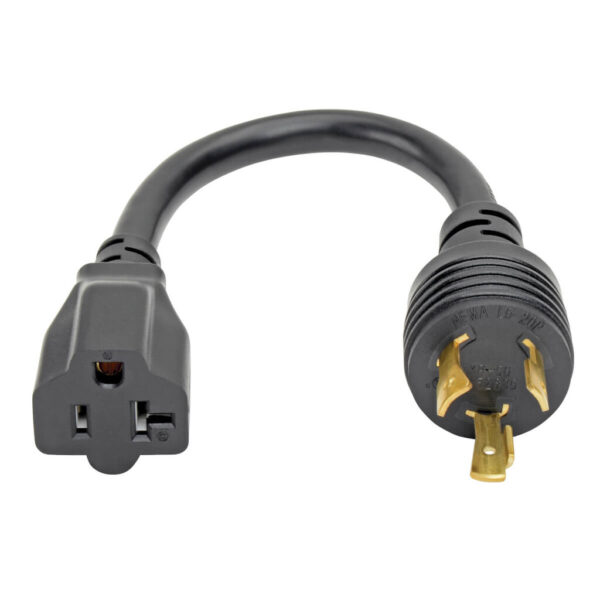

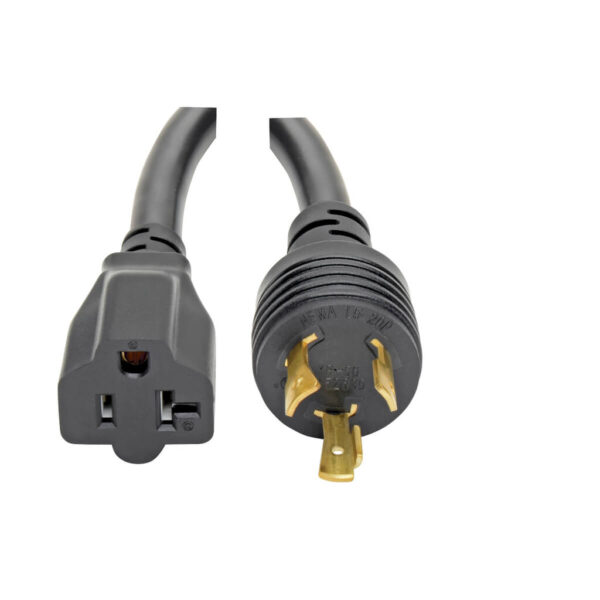

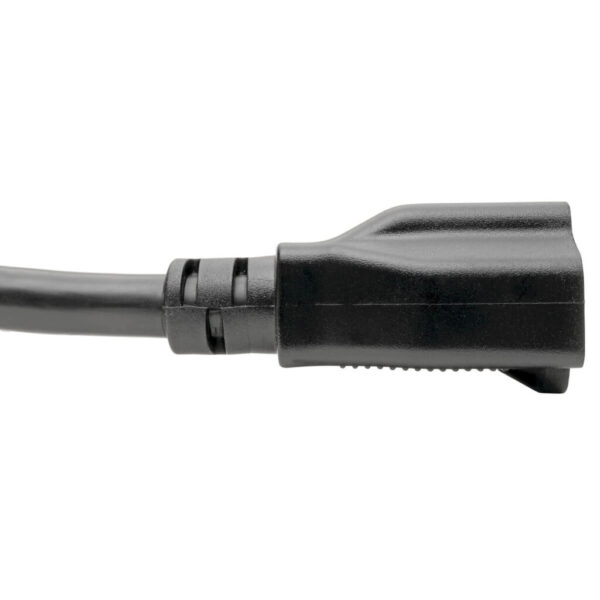

Tripp Lite series Power Cord Adapter, NEMA L5-20P to NEMA 5-15R – Heavy-Duty, Locking, 20A, 125V, 12 AWG, 6-in. (15.24 cm), Black

$27.54

Brand: Tripp Lite
Part Number (MPN): P046-06N-T
UPC / GTIN: 037332191649
Datasheet: PDF

Tripp Lite series Power Cord Adapter, NEMA L5-20P to NEMA 5-15R – Heavy-Duty, Locking, 20A, 125V, 12 AWG, 6-in. (15.24 cm), Black

Toronto Stock: 7 available
Manufacturer Warehouse: 573 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Recommended for powering computers, servers and other network devices
  • Heavy-duty adapter replaces or upgrades standard power cord provided by manufacturer
  • Thick 12 AWG wire gauge manages high power levels required for larger equipment
  • Locking connector maintains secure link to avoid loss of power and costly downtime

Features

Heavy-Duty Power Adapter for Network Devices That Require a Heavy-Gauge ConnectionThis six-inch cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It can be used to connect a computer, server or other device with a NEMA 5-15P or 5-20P straight-blade plug to a wall outlet, PDU or UPS system with a NEMA L5-20R outlet.Locking Connector Helps Prevent Accidental Disconnection and Expensive DowntimeHaving a cable come loose accidentally can mean the loss of power and costly downtime. The locking connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.

Package Includes

  • P046-06N-T L5-20P to 5-15R, L5-20P to 5-20R, Heavy-Duty Power Adapter, 6 in., Black
Weight 0.37 lbs
Dimensions 0.5 × 8.9 × 12.8 in
UPC Code

037332191649

Cord Length

0.49

Max Input Amps

20

Brand

Product Type

Computer Power Adapter

Device Compatibility

Computer; Monitor/HDTV; Server; UPS; PDU

Country/Region

North America

Voltage Compatibility (VAC)

125

Side A - Connector 1

NEMA L5-20P

Side B - Connector 1

NEMA 5-15/20R

Connector Style

Straight

Color

Black

Plug Color

Black

Cable Jacket Color

Black

Connector Color

Black

Cable Jacket Material

PVC

Cable Jacket Rating

VW-1

Power Cord Jacket Type

SJT

Cable Outer Diameter (OD)

11.2mm

Number of Conductors

3

Wire Gauge (OD - mm²)

3.31

Power Cord Color

Black

Cable Length (m)

0.15

Cable Length (cm)

15.24

Shipping Dimensions (hwd / cm)

32.51 x 22.61 x 1.27

Shipping Weight (kg)

0.17

Operating Temperature Range

14° to 140°F (-10° to 60°C)

Storage Temperature Range

14° to 140°F (-10° to 60°C)

Operating Humidity Range

35% to 85% RH, Non-Condensing

Storage Humidity Range

35% to 85% RH, Non-Condensing

Locking Plug

Yes

Locking Power Cord

Yes

Locking

Yes

Product Certifications

cUL Listed; UL Listed

Product Compliance

RoHS

Product Warranty Period (Worldwide)

Lifetime limited warranty
