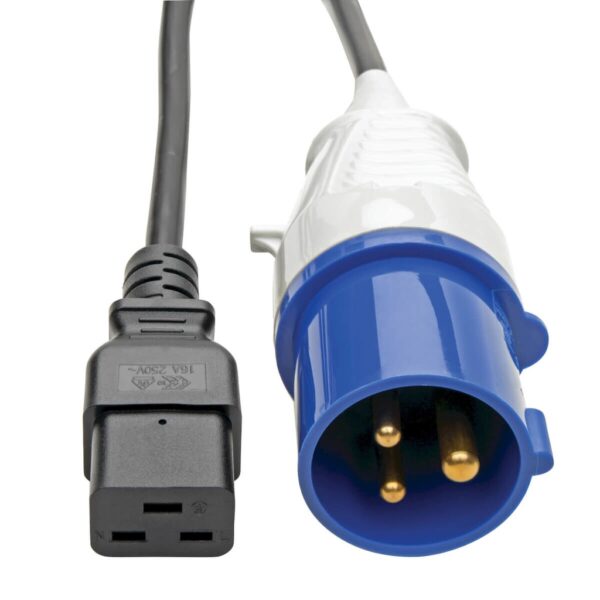

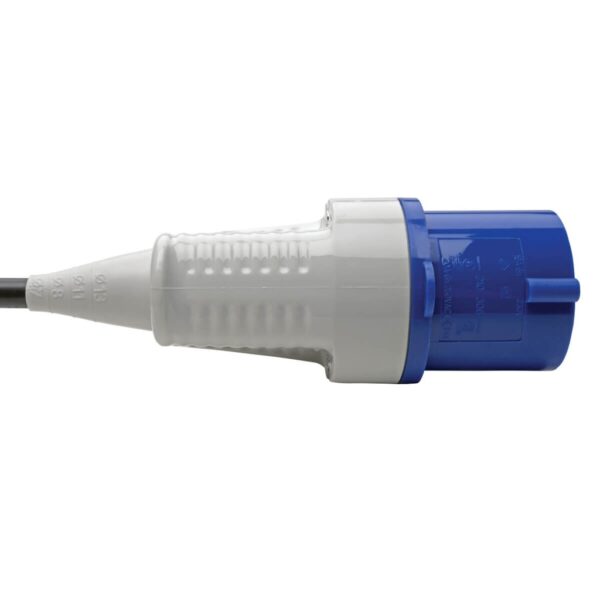

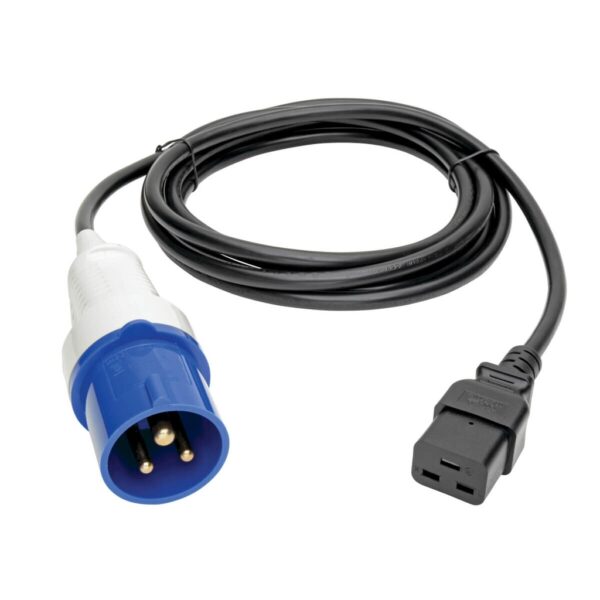

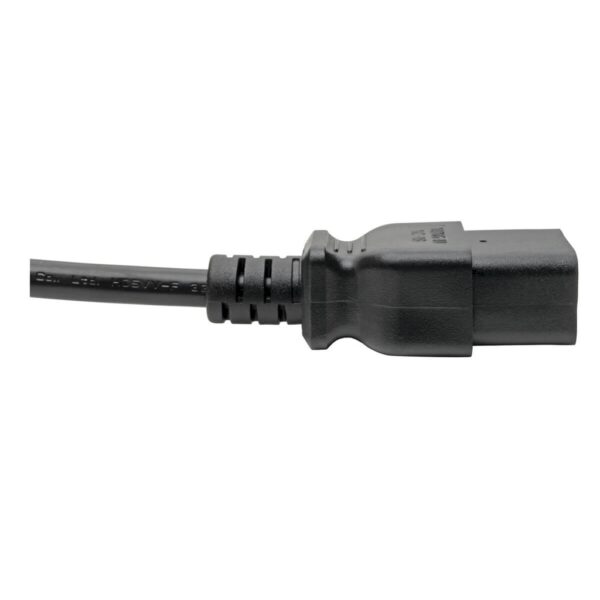

Tripp Lite series IEC 309 to C19, Heavy-Duty Extension Cord – 16A, 250V, 16 AWG, 10 ft. (3.05 m), Black
$70.76
Tripp Lite series IEC 309 to C19, Heavy-Duty Extension Cord – 16A, 250V, 16 AWG, 10 ft. (3.05 m), Black
*Items typically ship within 3-4 weeks if stock at factory
Quick Specs
- Recommended for powering servers, routers and other high-output network devices
- 10-ft. (3.05 m) length allows great flexibility in placing devices in relationship to AC outlet
- Heavy-duty extension cord replaces or upgrades standard manufacturer power cord
- 16 AWG wire gauge manages high power levels required for larger equipment
Features
Heavy-Duty Extension Cable for Network Devices That Require a Heavy-Gauge ConnectionThis heavy-duty extension cord features 16 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This cord can be used to connect a server, router, network switch or blade server enclosure to a PDU or replace or upgrade the standard power cord provided by the device’s manufacturer. The 10-ft. (3.05 m) length allows you great flexibility in placing equipment with respect to the power outlet.
Package Includes
- P070-010 IEC 309 to C19, Heavy-Duty Extension Cord, 10-ft. (3.05 m), Black
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 0.5 × 8.9 × 12.8 in |
| UPC Code | 037332160706 |
| Cord Length | 10.01 |
| Max Input Amps | 16 |
| Brand | |
| Product Type | PDU Extension Power Cord |
| Device Compatibility | Server; Router; Network Switch; PDU; UPS |
| Country/Region | North America |
| Voltage Compatibility (VAC) | 250 |
| Side A - Connector 1 | IEC-320-C19 |
| Side B - Connector 1 | IEC-309 16A 2P+E |
| Connector Style | Straight |
| Color | Blue |
| Plug Color | Blue |
| Cable Jacket Color | Black |
| Connector Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Power Cord Jacket Type | SJT |
| Cable Outer Diameter (OD) | 8.4mm |
| Number of Conductors | 3 |
| Wire Gauge (OD - mm²) | 1.29 |
| Power Cord Color | Blue |
| Cable Length (m) | 3.05 |
| Shipping Dimensions (hwd / cm) | 32.51 x 22.61 x 1.27 |
| Shipping Weight (kg) | 0.54 |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Operating Humidity Range | 35% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 85% RH, Non-Condensing |
| High Voltage | Yes |
| Product Certifications | cUL Listed; UL Listed |
| Product Compliance | CE (Europe); REACH; RoHS; UKCA |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
