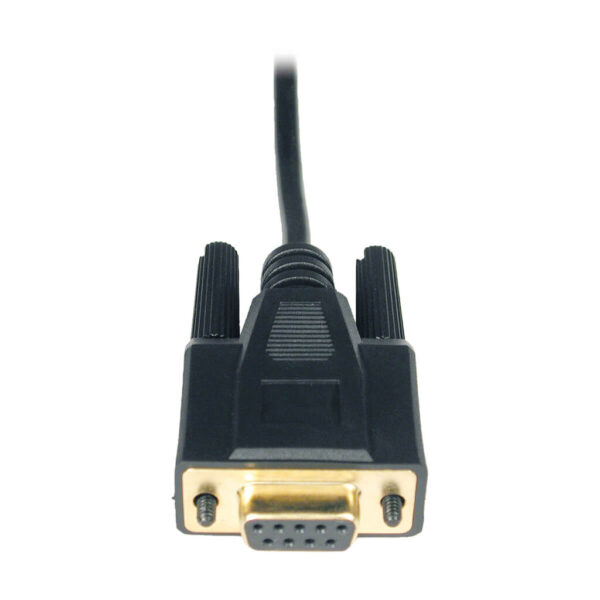

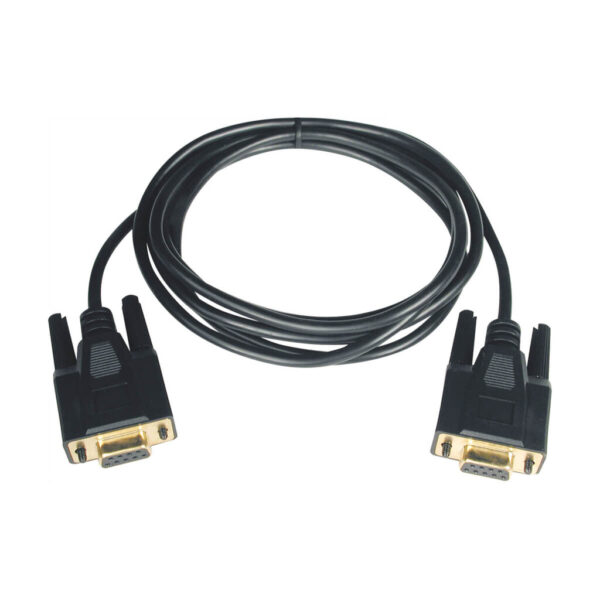

Tripp Lite series Null Modem Serial DB9 Serial Cable (DB9 F/F), 6 ft. (1.83 m)

Quick Specs

• Superior molded cables with integral strain relief and foil-shielding for maximum EMI/RFI protection
• Gold-plated connectors provide superior conductivity
• Null modem cables connect two serial devices that require a null modem configuration

Overview

Null modem cables and adapters connect two serial devices that require a null modem (cross-wired) configuration. This 6-ft. (1.83 m) cable has a DB9 female connector on each end. Superior molded cables with foil-shielding offer maximum EMI/RFI protection. Gold-plated connectors and contacts provide superior conductivity.

Features

• DB9 female to DB9 female, 6-ft. (1.83 m)
• Full Handshake Null wiring configuration: 1+6 – 4, 2-3, 3-2, 4 – 1+6, 5-5, 7-8, 8-7.
• Superior molded cables with foil-shielding for maximum EMI/RFI protection
• Gold-plated connectors provide superior conductivity

System Requirements

• Two serial devices with DB9M connectors requiring a null modem (cross-wired) configuration

Package Includes

• 6-ft. (1.83 m) Null Modem Gold Cable DB9F to DB9F
