Tripp Lite series HDMI Fiber Extender Terminations for MPO Fiber Optic Cable – 4K 60 Hz, 18 Gbps, LSZH, Up to 328 ft. (100 m)

Name: Tripp Lite series HDMI Fiber Extender Terminations for MPO Fiber Optic Cable - 4K 60 Hz, 18 Gbps, LSZH, Up to 328 ft. (100 m)
Brand: Tripp Lite
SKU: P568-000-FBR
Price: 295.84 CAD
Availability: BackOrder

$295.84

Brand: Tripp Lite

Part Number (MPN): P568-000-FBR

UPC / GTIN: 037332292438

Datasheet: PDF

Tripp Lite series HDMI Fiber Extender Terminations for MPO Fiber Optic Cable – 4K 60 Hz, 18 Gbps, LSZH, Up to 328 ft. (100 m)

Status: On Backorder (Contact us for lead times)

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Supports UHD resolutions up to 4K @ 60 Hz (4:4:4) with High Dynamic Range (HDR)
Made from lightweight, flexible fiber ideal for long-distance, high-density cable runs
Compatible with high-bandwidth applications up to 18 Gbps
Recommended for military surveillance, medical imaging, security and other vital applications

Features

Extends 4K Video Transmissions up to 328 ft.
This HDMI-to-MPO termination kit is recommended for data centers, medical imaging, stereoscopic 3D photography, military surveillance, security systems and other audio/video applications in which the source and display are placed far apart. Connect an included extender to both the HDMI source and display, and use the included adapters to connect the extenders to an MPO cable.

Transmits 4K Video with HDR and 4:4:4 Color
The P568-000-FBR supports Ultra HD 4K resolutions up to 3840 x 2160 at 60 Hz with bandwidths up to 18 Gbps. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.3 encryption allows you to stream 4K content with no loss in resolution. This termination kit also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Easy to Pair with Eaton Tripp Lite Series Fiber Cabling
The P568-000-FBR is compatible with N844A-Series multimode OM3 MPO fiber cables, including N844A-10M-8-P, N844A-15M-8-P, N844A-20M-8-P and N844A-30M-8-P (sold separately).

System Requirements

8-fiber OM3 Type-A polarity fiber cable (N844A-10M-8-P, N844A-15M-8-P, N844A-20M-8-P and N844A-30M-8-P, for instance)
Every connected component, including source, display and MPO cable, must support the desired resolution and refresh rate

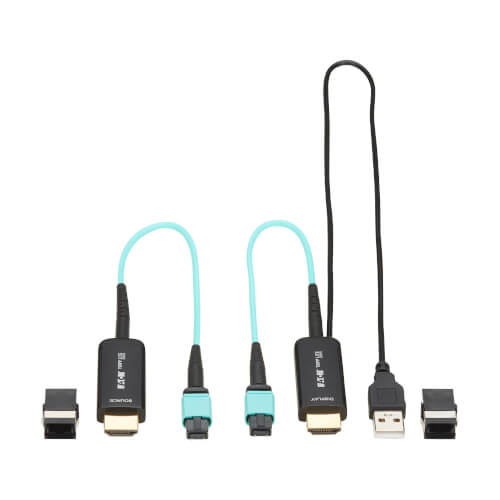

Package Includes

P568-000-FBR HDMI Fiber Extender Termination Kit with male MPO connectors
(2) MPO adapters (M/F)
Installation instructions

Weight	0.44 lbs
Dimensions	4.33 × 5.91 × 0.98 in
UPC Code	037332292438
Cord Length	0.66
Brand	Tripp Lite
Product Type	Video Extender
Technology	HDMI
Max Supported Video Resolution	3840 X 2160 60HZ (4K)
Max Supported Color Depth	36-bit Deep Color
HDR Support	Yes
3D Video Supported	No
Chroma Sub Sampling	4:2:0; 4:2:2; 4:4:4
Maximum Signal Range (m)	100
Audio Specification	DOLBY TRUEHD/DTS-HD AUDIO
Side A - Connector 1	HDMI (MALE)
Side B - Connector 1	12F MPO (MALE); USB A (MALE)
Connector Plating	Gold
Contact Plating	Gold
Connector Style	Straight
Color	Black
Material of Construction	PVC
Cable Jacket Color	Aqua
Connector Color	Aqua; Black
Cable Jacket Rating	LSZH
Cable Outer Diameter (OD)	3.0MM
Cable Length (m)	0.20
Shipping Weight (kg)	0.20
Unit Packaging Type	Box
Operating Temperature Range	14° to 131°F (-10° to 55°C)
Storage Temperature Range	-13° to 158°F (-25° to 70°C)
Operating Humidity Range	10% to 85% RH, Non-Condensing
Storage Humidity Range	5% to 90% RH, Non-Condensing
Power Provided to Connected Device(s)	5V
Integrated/Removable Cable	No
Ohms	No
Integral Strain Relief	No
Impedance-Matched Twisted-Pair Construction	No
Scaler Function	No
HDCP Specification	1.4; 2.3
Driver Required	No
Product Compliance	CE (Europe); FCC Part 15 Class B (USA); RoHS; UKCA
Product Warranty Period (Worldwide)	Lifetime limited warranty
