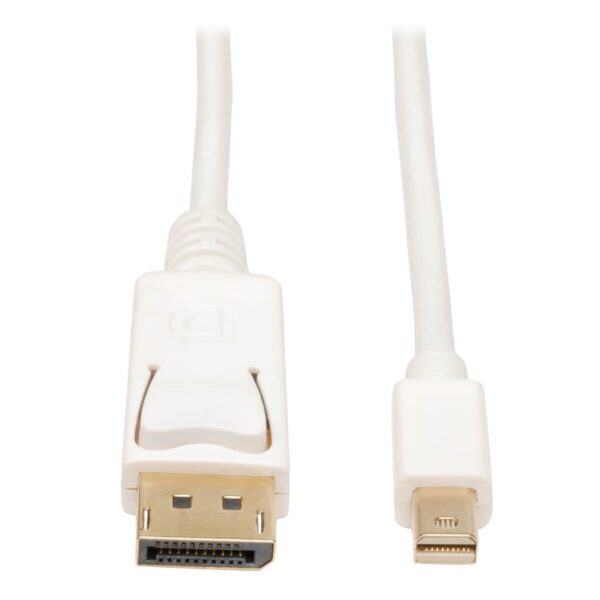

Tripp Lite series Mini DisplayPort to DisplayPort Adapter Cable, 4K 60Hz (M/M), DP Latching Connector, White, 10 ft. (3.1 m)

Name: Tripp Lite series Mini DisplayPort to DisplayPort Adapter Cable, 4K 60Hz (M/M), DP Latching Connector, White, 10 ft. (3.1 m)
Brand: Tripp Lite
SKU: P583-010
Price: 10.71 CAD
Availability: InStock

$10.71

Brand: Tripp Lite

Part Number (MPN): P583-010

UPC / GTIN: 037332174604

Datasheet: PDF

Tripp Lite series Mini DisplayPort to DisplayPort Adapter Cable, 4K 60Hz (M/M), DP Latching Connector, White, 10 ft. (3.1 m)

Manufacturer Warehouse: 1,050 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Supports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz
Locking DisplayPort connector prevents accidental disconnection
Gold-plated connectors and contacts for maximum conductivity
Meets DisplayPort 1.2 standards
Supports High Bit Rate 2 (HBR2) bandwidth up to 21.6 Gbps

Features

Sends Ultra High Definition Mini DisplayPort Audio/Video to DisplayPort Monitor or DisplayPort Audio/Video to Mini DisplayPort Monitor

Connects mDP or Thunderbolt computer or laptop to DisplayPort monitor, TV or projector or connects the DisplayPort output on your computer or laptop to the Mini DisplayPort (mDP) or Thunderbolt input on your monitor, television or projector
Recommended for displaying video on large monitor or digital sign
No separate power adapter required

Vibrant Video Quality

Supports UHD video resolutions up to 4096 x 2160 (4K x 2K) @ 60 Hz
Meets DisplayPort 1.2 standards
Supports High Bit Rate 2 (HBR2) bandwidth up to 21.6 Gbps
Backward compatible with previous DisplayPort versions

Superior Materials for Superior Performance

Locking DisplayPort connector prevents accidental disconnection
Gold-plated connectors and contacts for maximum conductivity and minimum data loss
Integral strain relief reduces stress and adds flexibility

System Requirements

Source device with Mini DisplayPort, Thunderbolt or DisplayPort output
Display device with DisplayPort, mDP or Thunderbolt input

Package Includes

P583-010 Mini DisplayPort to DisplayPort 4K @60Hz Adapter (M/M), 10 ft. (3.1 m)

Weight	0.37 lbs
Dimensions	0.5 × 7 × 9 in
UPC Code	037332174604
Cord Length	10.01
Brand	Tripp Lite
Product Type	Passive Cable
Technology	DisplayPort
Cable Type	Passive
Max Supported Video Resolution	3840 x 2160 (4K) @ 60Hz
Max Supported Color Depth	24-bit True Color
HDR Support	No
3D Video Supported	Yes
Chroma Sub Sampling	4:2:0; 4:2:2
Signal Transmission	Bidirectional
Side A - Connector 1	DISPLAYPORT (MALE)
Side B - Connector 1	MINI DISPLAYPORT (MALE)
Connector Plating	Gold
Contact Plating	Gold
Connector Style	Straight
Latching or Gripping Connector	Yes
Color	White
Cable Jacket Color	White
Cable Jacket Material	PVC
Cable Jacket Rating	VW-1
Cable Outer Diameter (OD)	4.8 mm
Cable Length (m)	3.05
Minimum Bend Radius	48mm
Shipping Dimensions (hwd / cm)	22.86 x 17.78 x 1.27
Shipping Weight (kg)	0.17
Operating Temperature Range	32° to 113°F (0° to 45°C)
Storage Temperature Range	-40° to 158°F (-40° to 70°C)
Operating Humidity Range	10% to 85% RH, Non-Condensing
Storage Humidity Range	5% to 90% RH, Non-Condensing
EDID Compatible	Yes
MST Support	Yes
Ethernet Support	No
Displayport Specification	1.2
HDCP Specification	2.2
Product Compliance	RoHS; REACH; WEEE
Product Warranty Period (Worldwide)	Lifetime limited warranty
