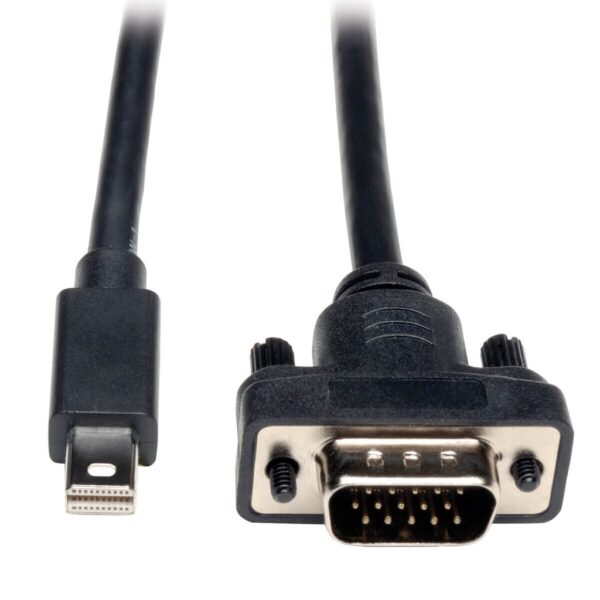

Tripp Lite series Mini DisplayPort 1.2 to VGA Active Adapter Cable (M/M), 6 ft. (1.8 m), TAA

Name: Tripp Lite series Mini DisplayPort 1.2 to VGA Active Adapter Cable (M/M), 6 ft. (1.8 m), TAA
Brand: Tripp Lite
SKU: P586-006-VGA-V2
Price: 30.53 CAD
Availability: InStock

$30.53

Brand: Tripp Lite

Part Number (MPN): P586-006-VGA-V2

UPC / GTIN: 037332191854

Datasheet: PDF

Tripp Lite series Mini DisplayPort 1.2 to VGA Active Adapter Cable (M/M), 6 ft. (1.8 m), TAA

Manufacturer Warehouse: 716 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Active adapter cable for use with any Mini Displayport (or Thunderbolt) port
Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
Supports computer video resolution up to 1920 x 1200
Supports HD video resolution up to 1920 x 1080 (1080p)
No separate adapter required
Nickel-plated connectors with gold-plated contac

Features

Send High-Quality Mini DisplayPort v1.2 Video Signals to a VGA Display

Connects Mini DisplayPort (or Thunderbolt) computer to VGA-enabled monitor, projector or TV
Ideal for displaying video on large monitor or digital sign
Low-profile VGA connector fits neatly into available space; no jamming between wall and monitor or impeding neighboring connections
Mini DisplayPort and HD15 male connectors
No separate adapter required

Vibrant, Superior Video Quality

Supports computer video resolutions up to 1920 x 1200
Supports HD video resolutions up to 1920 x 1080 (1080p)
Converts Single-Mode and Dual-Mode (DP++) Mini DisplayPort output
Perfect for use with graphics cards, such as AMD Eyefinity, that don’t output DP++ signals

Superior Materials for Superior Performance

Double shielding with foil and braid for maximum EMI/RFI protection
Nickel-plated connectors with gold-plated contacts for excellent conductivity
Integral strain relief for long life

TAA-Compliant for GSA Schedule Purchases

The P569-020-MF-ACT is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Package Includes

P586-006-VGA-V2 Mini DisplayPort 1.2 to VGA Active Adapter Cable, 6 ft.

Weight	0.2 lbs
Dimensions	0.5 × 7 × 9 in
UPC Code	037332191854
Cord Length	6
Brand	Tripp Lite
Product Type	Active Cable
Technology	VGA/SVGA; DisplayPort
Cable Type	Active
Max Supported Video Resolution	1920 x 1200 (1080p)
HDR Support	No
Side A - Connector 1	MINI DISPLAYPORT (MALE)
Side B - Connector 1	HD15 (MALE)
Connector Plating	Nickel
Contact Plating	Gold
Color	Black
Material of Construction	ABS, PVC
Cable Jacket Color	Black
Cable Jacket Material	PVC
Cable Jacket Rating	VW-1
Cable Outer Diameter (OD)	5.0 +/- 15mm
Cable Length (m)	1.83
Shipping Dimensions (hwd / cm)	17.78 x 22.86 x 1.27
Shipping Weight (kg)	0.11
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	5° to 122°F (-15° to 50°C)
Operating Humidity Range	0% to 85%, Non-Condensing
Storage Humidity Range	0% to 85%, Non-Condensing
Displayport Specification	1.2
Product Compliance	CE (Europe); FCC (USA); REACH; RoHS; Trade Agreements Act (TAA); UKCA; WEEE
Product Warranty Period (U.S. & Canada)	3-year limited warranty
