Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature

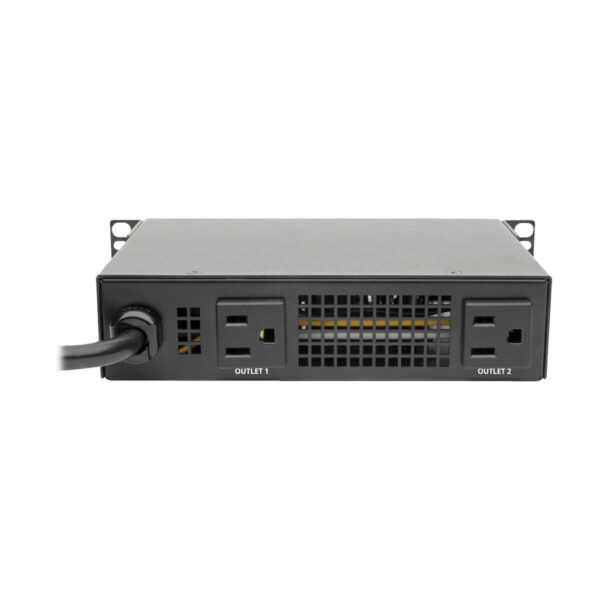

2 switched NEMA 5-15R outlets can be remotely rebooted, locked or shut down
NEMA 5-15P input with 6-ft. (1.83 m) cord connects to mains power, generator or UPS system
Mounts on wall, under counter or in 0U of rack space using included brackets
Ideal low-cost option for small-scale installations requiring no more than 2 outlets
Features
Switched PDU Provides Advanced Network Control and Remote Power MonitoringThis 0U PDU is an ideal low-cost option for small-scale network configurations where only one or two outlets are needed. It features two NEMA 5-15R individually switched outlets, which can be remotely controlled to turn on, turn off, recycle or lock out power to unresponsive devices. Front-panel LEDs indicate each outlet’s on/off status.Pre-Installed WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and ControlThe built-in WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and PowerAlert Element Manager (PAEM) software form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations. PADM20’s Auto Probe feature allows a PDU with switched loads to automatically reboot devices if a network communication failure is detected. This preserves uptime and minimizes the time and expense associated with on-site support.Easy Connection to an AC Power SourceA 6-ft. (1.83 m) power cord with NEMA 5-15P plug connects the PDU15NETLX 0U PDU to a compatible AC power source, generator or protected UPS.Flexible Installation OptionsThe switched rack PDU (rPDU) mounts vertically in 0U of rack space, on a wall or under a counter using the included mounting brackets and user-supplied hardware. Its half-width rack-mount form factor allows you to place it on a shelf or desktop.TAA-Compliant for GSA Schedule PurchasesThe PDU15NETLX is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Package Includes
PDU15NETLX 1.4kW 120V Single-Phase Switched Mini PDU
1.44kW (120V) / 12A total capacity; 12A max per outlet
Frequency Compatibility
50 / 60 Hz
Output Receptacles
(2) 5-15R
Output Nominal Voltage
120V
Customized Load Management Receptacles
Each outlet is individually controllable via remote interface
Switches
LX Platform Interface: Recessed reset switch for interface reboot and factory reset
LED Indicators

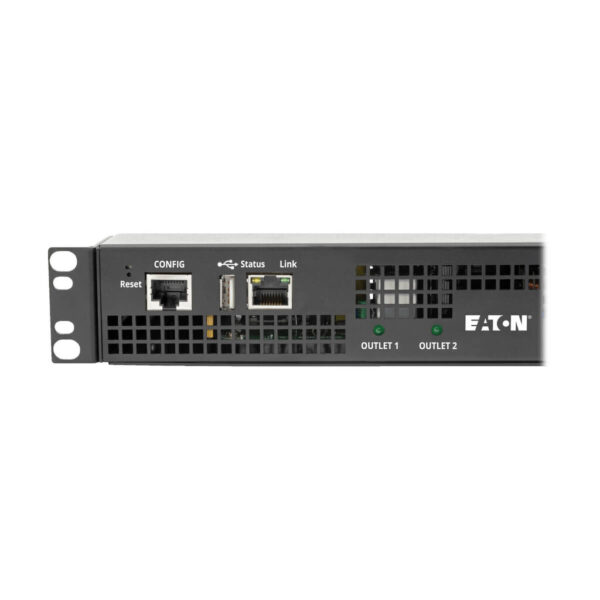

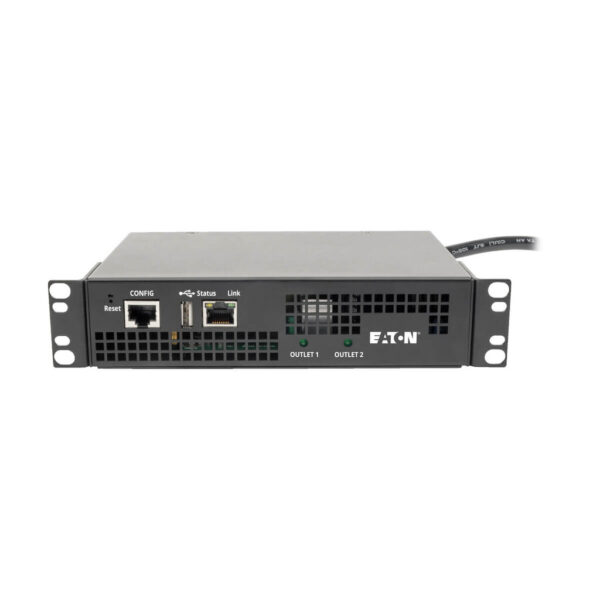

Set of two front-panel LEDs indicate off/on power status for each outlet. Ethernet Link and Status LED's for network activity. System status LED for monitoring system operation.
Material of Construction
Metal
Rack Height
0U
Form Factors Supported
0u rackmount, Wall-mount, Under-counter mount
Minimum Required Rack Depth (cm)
17.78
PDU Form Factor
Vertical (0U)
Shipping Dimensions (hwd / cm)
5.00 x 21.21 x 20.50
Shipping Weight (kg)
1.49
Unit Dimensions (hwd / cm)
4.4 x 17.8 x 12.7
Unit Weight (kg)
1.20
Operating Temperature Range
32° to 122°F (0° to 50°C)
Storage Temperature Range
-22° to 140°F (-30° to 60°C)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m)
PowerAlert Software
LX Platform Interface: PowerAlert Device Manager
Communications Cable
RJ45-to-DB9 configuration/console Access cable
Network Monitoring Port
RJ45 Network port, RJ45 Serial Config/Console Access port; and USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility
SNMP V1, V2c, V3
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Communications Interface
(1) RJ45 Network; (1) RJ45 Serial; (1) USB-A
High Availability PDU Features
Auto Probe Monitoring and Reboot (included); Auto Load Shedding
Product Certifications
CSA (Canada); NOM (Mexico); UL 60950-1
Product Compliance
RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)
2-year limited warranty
