Tripp Lite series 12.6kW 3-Phase Local Metered PDU, 208V Outlets (36 C13 & 9 C19) Hubbell 50A CS8365C, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

$1,280.79

Brand: Tripp Lite
Part Number (MPN): PDU3MV6H50
UPC / GTIN: 037332163868
Datasheet: PDF

Tripp Lite series 12.6kW 3-Phase Local Metered PDU, 208V Outlets (36 C13 & 9 C19) Hubbell 50A CS8365C, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

Manufacturer Warehouse: 279 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

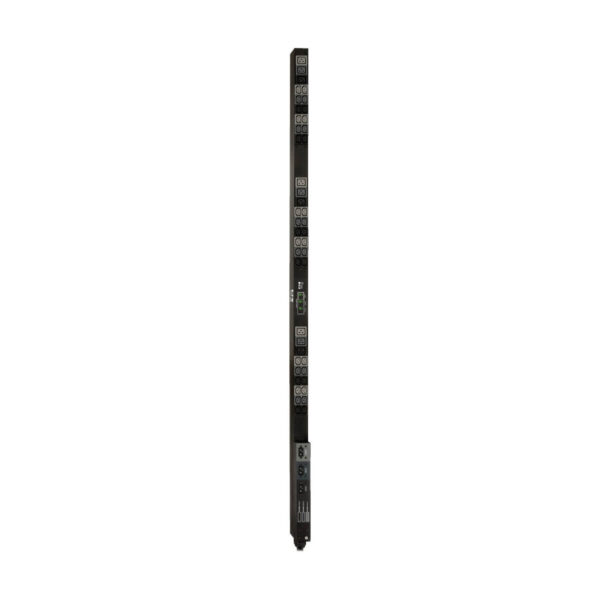

  • Local Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
  • Reports load current per-phase via set of 3 built-in current meters
  • Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. (1.83 m) line cord
  • 45 208V outlets total (36 C13, 9 C19)
  • Toolless button-mount installation; cord retention brackets included
  • Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

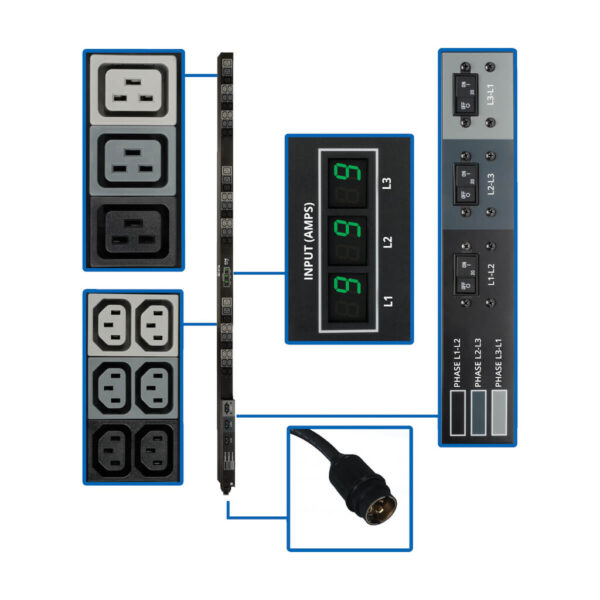

  • 12.6kW 3 phase 208V Local Metered Power Distribution Unit / rack PDU (rPDU)
  • Set of 3 built-in current meters continuously report load current in amps for all 3 output phases

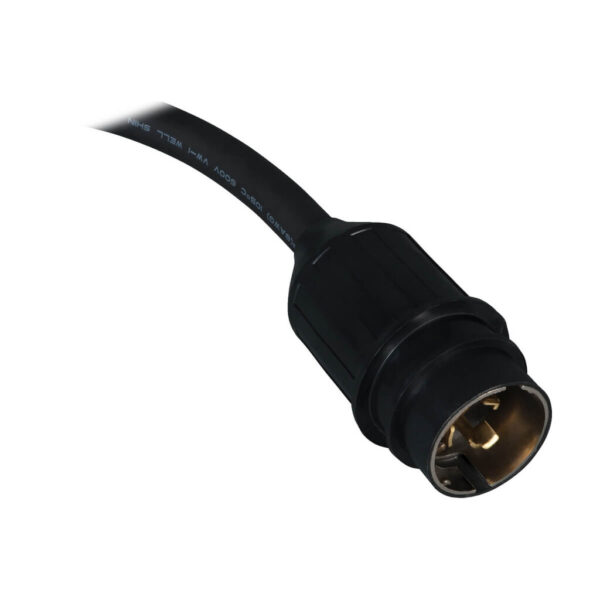

  • Attached Hubbell CS8365C 50A (3P+E) 208V 3 phase input plug with 6 ft. / 1.8m cord
  • 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
  • 45 total 208V outlets (36 C13, 9 C19) arranged in three breakered single phase output load banks
  • Included cord retention brackets keep vital network equipment plugged in and continuously powered

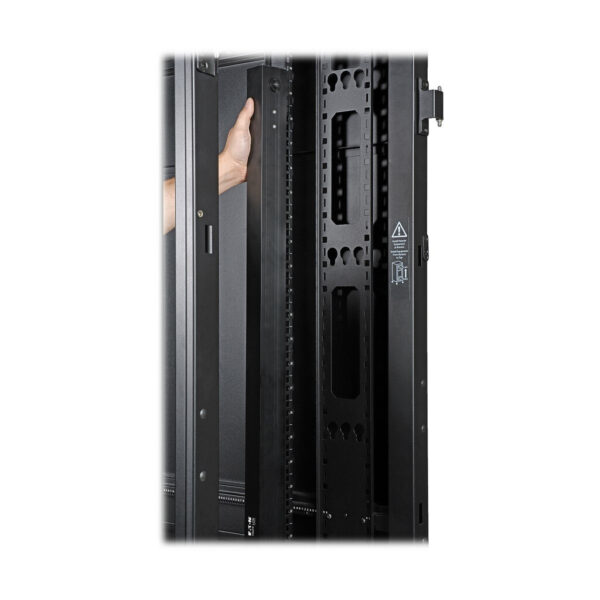

  • Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
  • Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

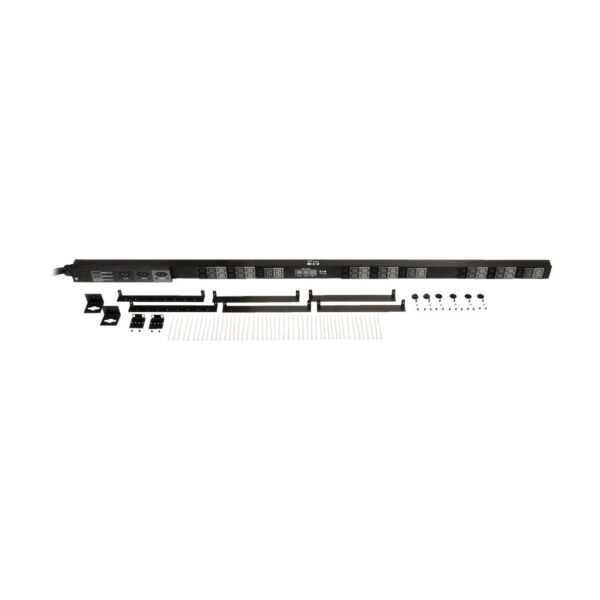

Package Includes

  • Local Metered PDU with pre-installed mounting buttons
  • Cord retention brackets
  • Spare installation buttons (2 9mm / 4 6mm)
  • Rack mounting brackets
  • Owner’s manual
Weight 21.4 lbs
Dimensions 77.3 × 10 × 6 in
UPC Code

037332163868
Cord Length

6
Max Input Amps

35
Brand

PDU Type

Local Metered
Input Phase

3-Phase
PDU Input Voltage

208
Recommended Electrical Service

Three-phase 50A 208V service
Maximum Input Amps Details

Agency de-rated to 35A continuous
PDU Plug Type

HUBBELL CS8365C 50A
Input Cord Length (m)

1.83
Output Capacity Details

12.6kVA (208V) total capacity; 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility

50 / 60 Hz
Output Receptacle Details

Compatible with Eaton Tripp Lite Power Cords
Output Receptacles

(36) C13; (9) C19
Output Nominal Voltage

208V
Overload Protection

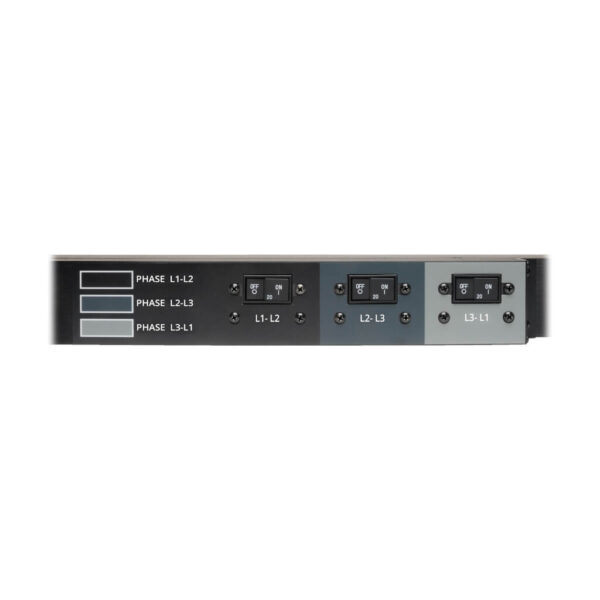

Three 20A circuit breakers, 1 per outlet bank
Reported Load Segments

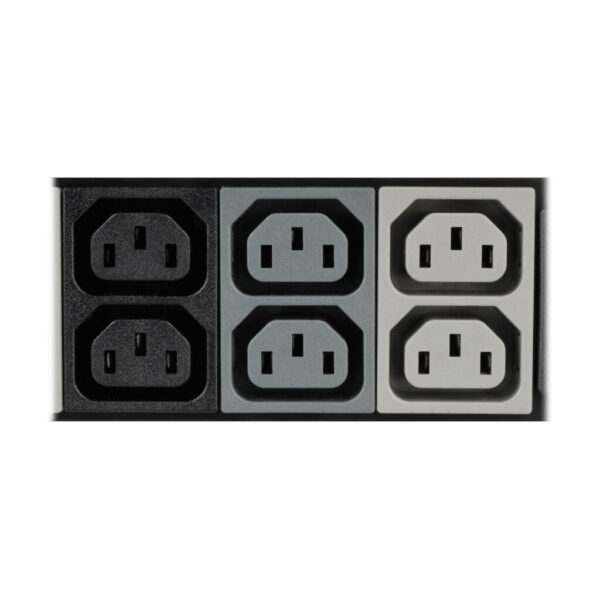

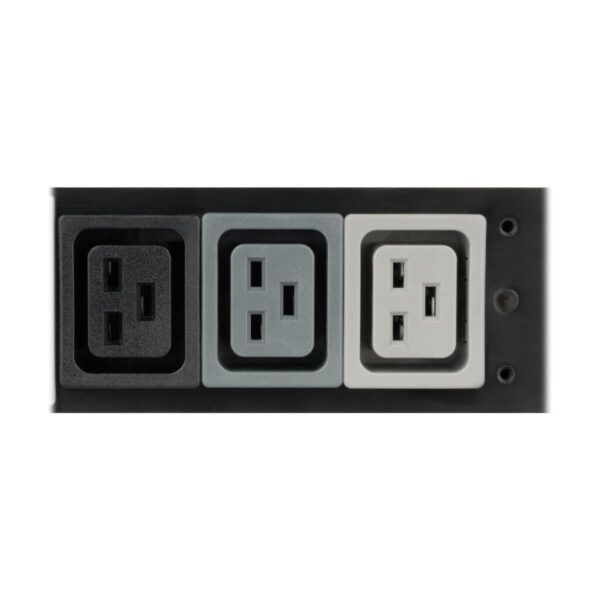

Supports local monitoring of current for each output phase (20A balanced max per L1-L2, L2-L3 and L3-L1); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 feeds black outlets; L2-L3 feeds dark-gray outlets; L3-L1 feeds light-gray outlets
Front Panel LCD Display

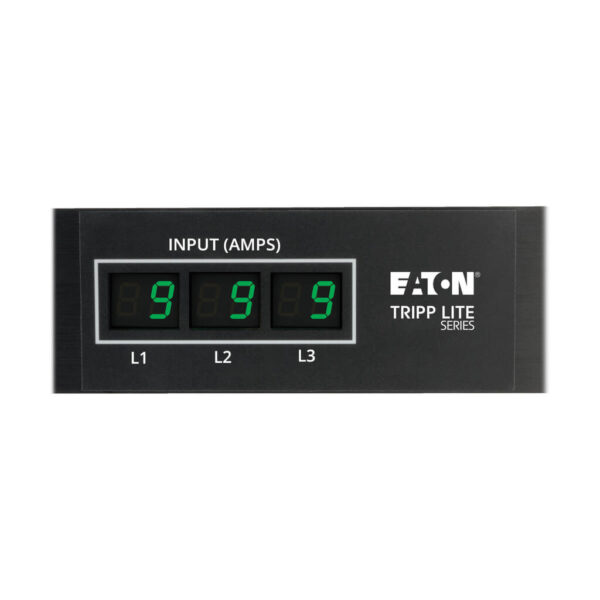

Set of 3 digital current meters report current in amps for each output phase
Material of Construction

Metal
Rack Height

0U
Form Factors Supported

Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor

Vertical (0U)
Shipping Dimensions (hwd / cm)

15.24 x 25.40 x 196.34
Shipping Weight (kg)

9.71
Unit Dimensions (hwd / cm)

177.8 x 6.73 x 4.34
Unit Weight (kg)

6.58
Operating Temperature Range

32° to 104°F (0° to 40°C)
Storage Temperature Range

-22° to 140°F (-30° to 60°C)
Relative Humidity

5% to 95% non-condensing
Operating Elevation

0-10000 ft. (0-3000 m)
Product Certifications

RETIE (Colombia); NOM (Mexico); UL 62368-1
Product Compliance

RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)

2-year limited warranty
WEXT1G

Extended Warranty and Technical Support for Select Products – KVM, PDUs, Inverters
WEXT2G

Extended Warranty and Technical Support for Select Products – KVM Switches, PDUs, Power Inverters
WEXT3G

Extended Warranty and Technical Support for Select Products – KVM, PDUs, Power Inverters
