Tripp Lite series 5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (21 5-15/20R, 6 L6-20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

Name: Tripp Lite series 5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (21 5-15/20R, 6 L6-20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA
Brand: Tripp Lite
SKU: PDU3MV6L2120B
Price: 883.24 CAD
Availability: InStock

$883.24

Brand: Tripp Lite

Part Number (MPN): PDU3MV6L2120B

UPC / GTIN: 037332163905

Datasheet: PDF

Tripp Lite series 5.7kW 3-Phase Local Metered PDU, 208/120V Outlets (21 5-15/20R, 6 L6-20R), L21-20P, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

Manufacturer Warehouse: 103 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Local Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount
Reports input current per-phase via built in current meters
NEMA L21-20P (3P+N+E) 208V 3 phase input; 6-ft. (1.83 m) line cord
27 outlets total; 21 5-15/20R (120V), 6 L6-20R (208V)
Toolless button-mount installation; cord retention brackets included
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

Features

5.7kW 3 phase 208/120V Local Metered Power Distribution Unit / rack PDU (rPDU)
Set of 3 built-in current meters continuously report input current per phase

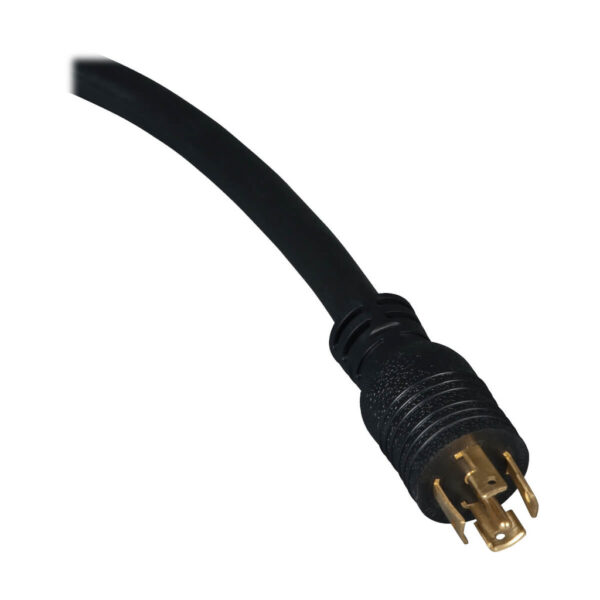

Attached NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug with 6 ft. / 1.8m cord

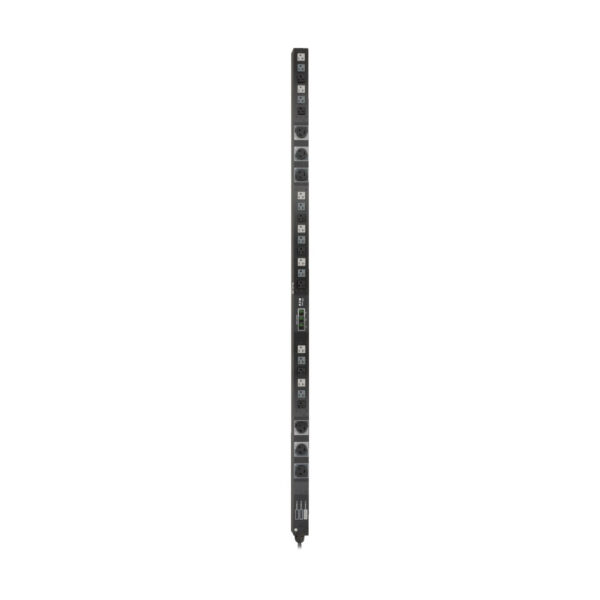

0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
27 total outlets arranged in three single phase output load banks

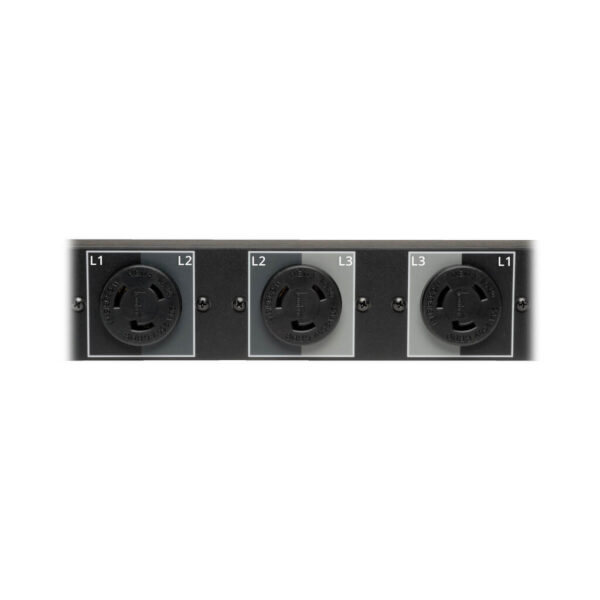

6 NEMA L6-20R outlets output 208V

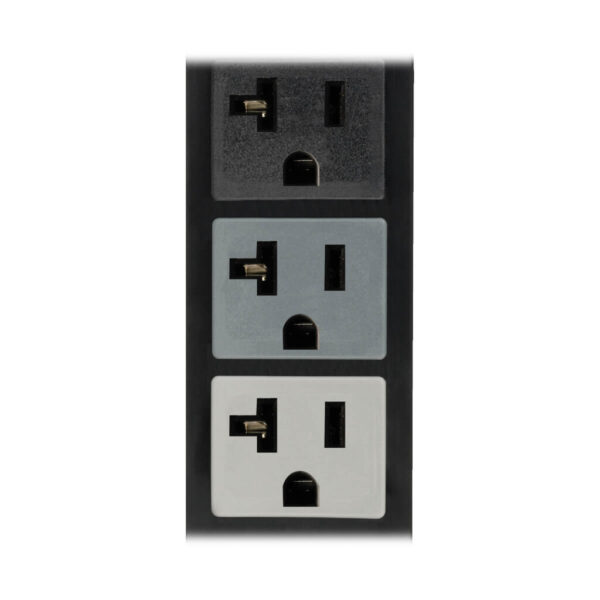

21 NEMA 5-15/20R outlets output 120V
Included cord retention brackets keep vital network equipment plugged in and continuously powered

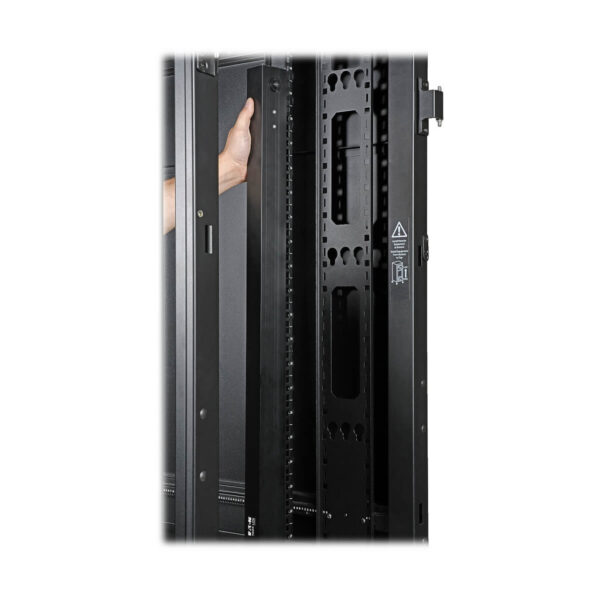

Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

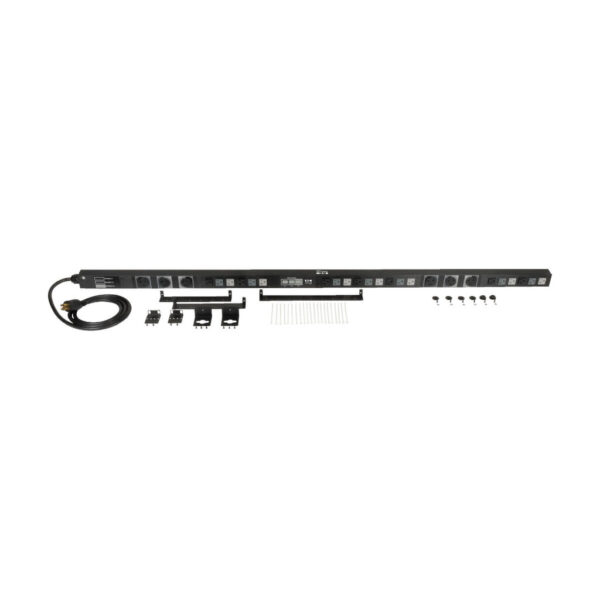

Package Includes

Local Metered Rackmount PDU with pre-installed mounting buttons
Cord retention brackets
Spare installation buttons (2 9mm / 4 6mm)
Rack mounting brackets
Owner’s manual

Weight	14.5 lbs
Dimensions	76.5 × 6.7 × 5.2 in
UPC Code	037332163905
Cord Length	6
Max Input Amps	16
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	3-Phase
PDU Input Voltage	208
Recommended Electrical Service	Three-phase 20A 208V service
Maximum Input Amps Details	Agency de-rated to 16A continuous
PDU Plug Type	NEMA L21-20P
Input Cord Length (m)	1.83
Output Capacity Details	5.7kW (208/120V) total capacity; 9.2A (208V) max per output phase (L1-L2, L2-L3, L3-L1) / 16A (120V) max per output phase (L1, L2, L3)
Frequency Compatibility	50 / 60 Hz
Output Receptacle Details	5-15/20R outlets provide 120V output; L6-20R outlets provide 208V output
Output Receptacles	(21) 5-15/20R; (6) L6-20R
Output Nominal Voltage	208/120V

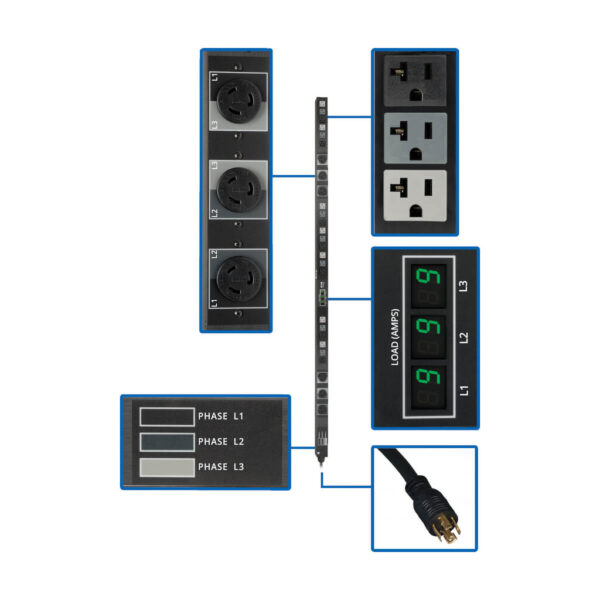

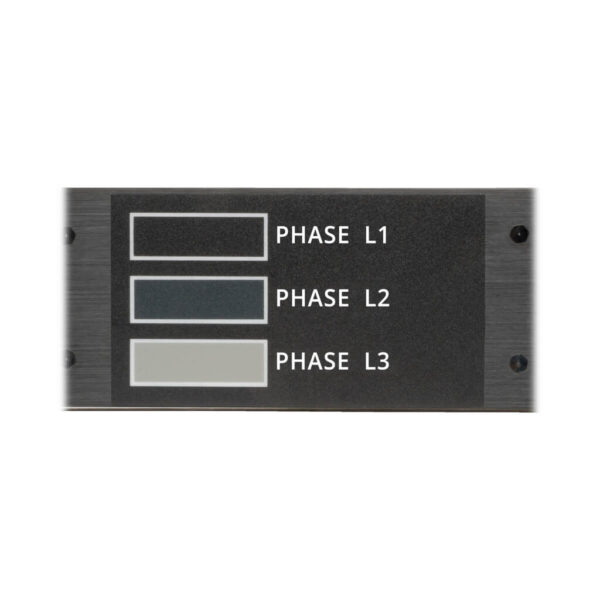

Reported Load Segments	Supports local monitoring current for each input phase (9.2A balanced max per L1, L2 and L3); Outlets are color-coded and labeled for easy phase and load bank identification; L1-L2 feeds 2 L6-20R outlets; L2-L3 feeds 2 L6-20R outlets; L3-L1 feeds 2 L6-20R outlets; L1-N feeds black 5-20R outlets, Phase L2-N feeds dark-gray 5-20R outlets, Phase L3-N feeds light-gray 5-20R outlets

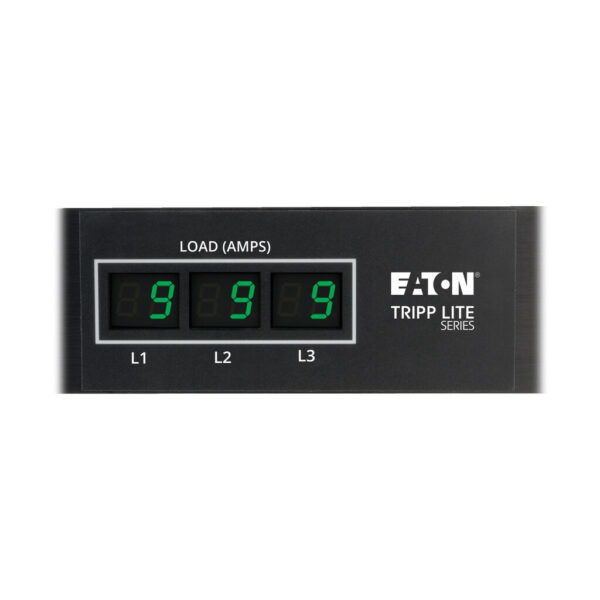

Front Panel LCD Display	Set of 3 digital current meters report input current per phase
Material of Construction	Metal
Rack Height	0U
Form Factors Supported	Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor	Vertical (0U)
Shipping Dimensions (hwd / cm)	13.21 x 17.02 x 194.31
Shipping Weight (kg)	6.58
Unit Dimensions (hwd / cm)	177.8 x 5.6 x 4.39
Unit Weight (kg)	5.72
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 140°F (-30° to 60°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Product Certifications	RETIE (Colombia); NOM (Mexico); UL 62368-1
Product Compliance	RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)	2-year limited warranty
