Tripp Lite series 5.7kW 3-Phase Local Metered PDU, 120V Outlets (42 5-15/20R), 208V L21-20P input, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

$797.63

Brand: Tripp Lite
Part Number (MPN): PDU3MV6L2120LV
UPC / GTIN: 037332163899
Datasheet: PDF

Tripp Lite series 5.7kW 3-Phase Local Metered PDU, 120V Outlets (42 5-15/20R), 208V L21-20P input, 6 ft. (1.83 m) Cord, 0U Vertical, TAA

Toronto Stock: 1 available
Manufacturer Warehouse: 52 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Local Metered 5.7kW 3 Phase 120V output PDU; 70 in. / 178cm 0U vertical rackmount
  • Reports load level per-phase via built in current meters
  • NEMA L21-20P (3P+N+E) 208V 3 phase input; 6-ft. (1.83 m) line cord
  • 42 NEMA 5-15/20R outlets (120V), Toolless button-mount installation; cord retention brackets included
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

  • 5.7kW 3 phase 120V output Local Metered Power Distribution Unit / rack PDU (rPDU)
  • Set of 3 built-in current meters continuously report load current per phase

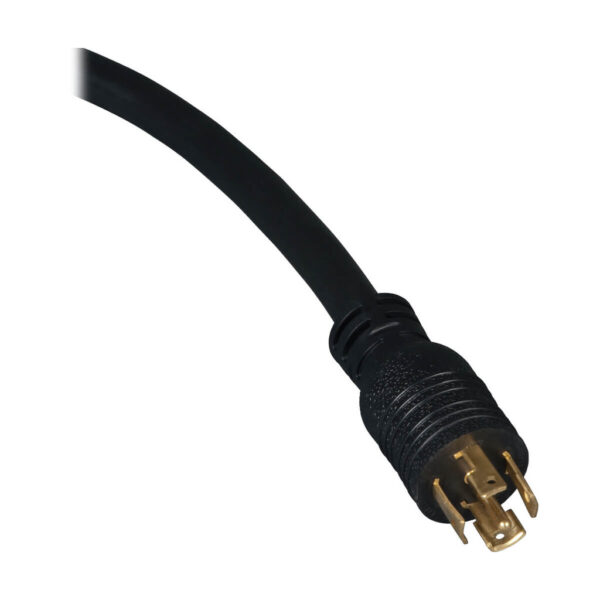

  • Attached NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug with 6 ft. / 1.8m cord

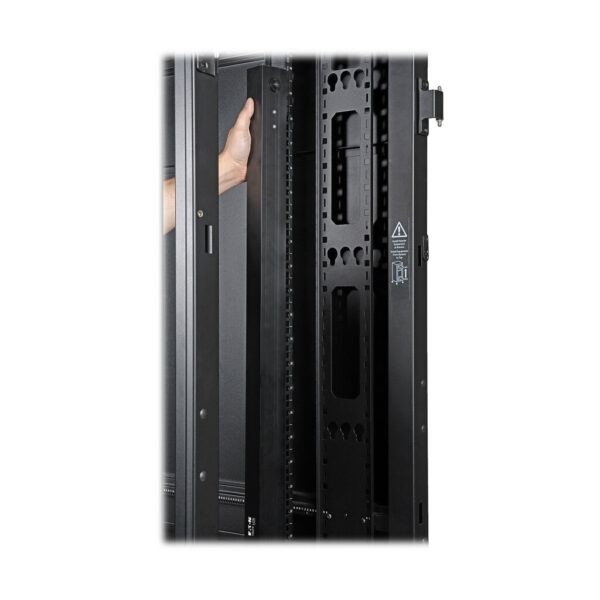

  • 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
  • 42 total outlets arranged in three single phase output load banks
  • NEMA 5-15/20R outlets output 120V
  • Included cord retention brackets keep vital network equipment plugged in and continuously powered
  • Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

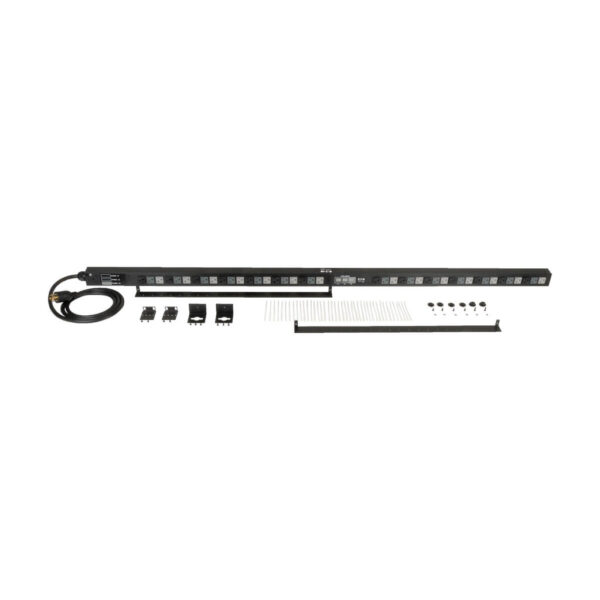

Package Includes

  • Local Metered Rackmount PDU with pre-installed mounting buttons
  • Cord retention brackets
  • Spare installation buttons (2 9mm / 4 6mm)
  • Rack mounting brackets
  • Owner’s manual
Weight 14.6 lbs
Dimensions 76 × 6.8 × 5.4 in
UPC Code

037332163899
Cord Length

6
Max Input Amps

16
Brand

PDU Type

Local Metered
Input Phase

3-Phase
PDU Input Voltage

208
Recommended Electrical Service

Three-phase 20A 208V service
Maximum Input Amps Details

Agency de-rated to 16A continuous
PDU Plug Type

NEMA L21-20P
Input Cord Length (m)

1.83
Output Capacity Details

5.7kW (120V) total capacity / 16A max per output phase (L1, L2, L3); 16A max per 5-15/20R outlet
Frequency Compatibility

50 / 60 Hz
Output Receptacles

(42) 5-15/20R
Output Nominal Voltage

120V
Reported Load Segments

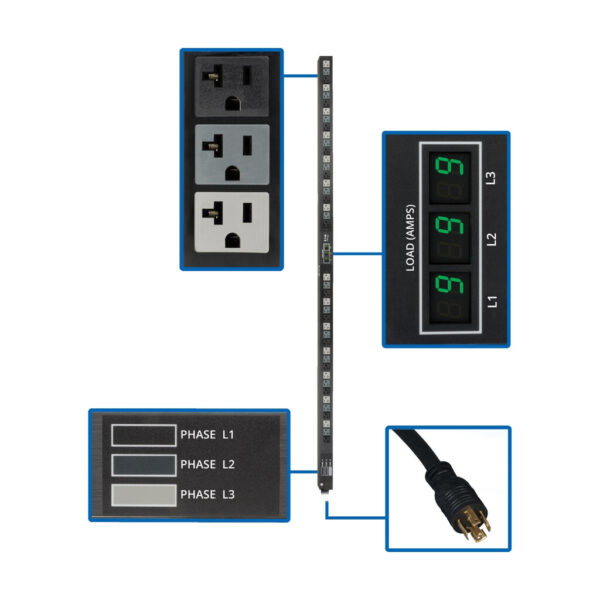

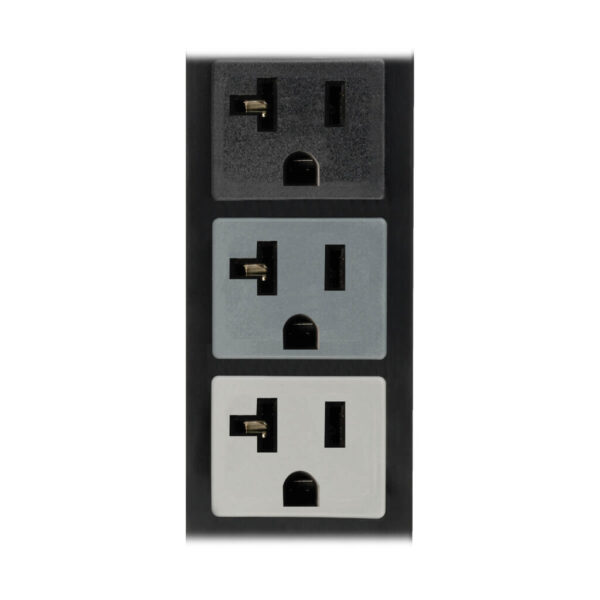

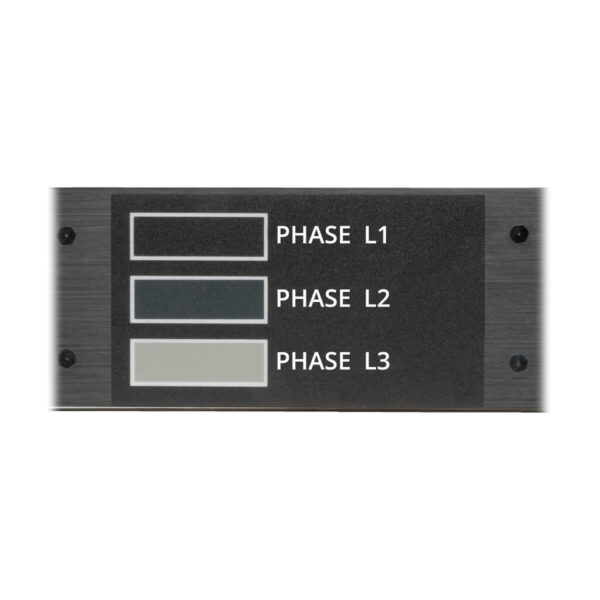

Supports local monitoring of current for each output phase (16A balanced max per L1, L2 and L3); Outlets are color-coded and labeled for phase and load bank identification; L1-N feeds black 5-20R outlets; L2-N feeds dark-gray 5-20R outlets; L3-N feeds light-gray 5-20R outlets
Front Panel LCD Display

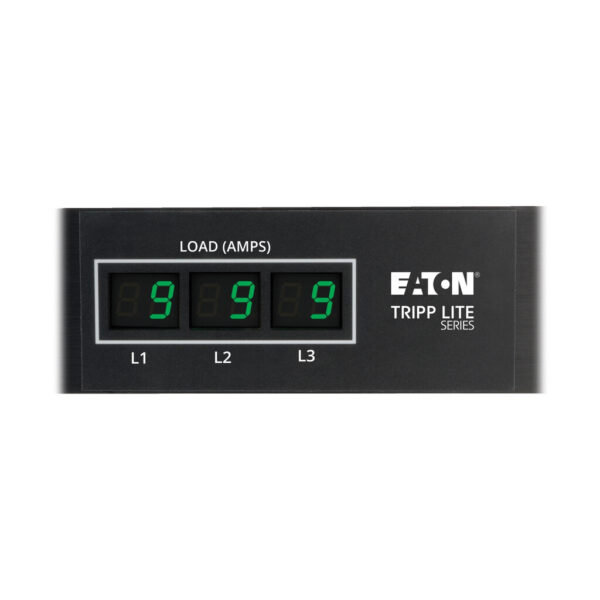

Set of 3 digital current meters report output current per phase
Material of Construction

Metal
Rack Height

0U
Form Factors Supported

Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor

Vertical (0U)
Shipping Dimensions (hwd / cm)

13.72 x 17.27 x 193.04
Shipping Weight (kg)

6.62
Unit Dimensions (hwd / cm)

177.8 x 5.6 x 4.34
Unit Weight (kg)

5.76
Operating Temperature Range

32° to 104°F (0° to 40°C)
Storage Temperature Range

-22° to 140°F (-30° to 60°C)
Relative Humidity

5% to 95% non-condensing
Operating Elevation

0-10000 ft. (0-3000 m)
Product Certifications

RETIE (Colombia); NOM (Mexico); UL 62368-1
Product Compliance

RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)

2-year limited warranty
WEXT1D

Extended Warranty and Technical Support for Select Products – Isolation Transformers, KVM, PDU, Inverters
WEXT2D

Extended Warranty and Technical Support for Select Products – Isolation Transformers, KVM Switches, PDUs, Power Inverters
WEXT3D

Extended Warranty and Technical Support for Select Products – Isolation Transformers, KVM Switches, PDUs, Power Inverters
