Tripp Lite series 3-Phase Local Metered PDU, 8.6 kW, 45 208V outlets (36 C13, 9 C19), 6 ft. (1.83 m) NEMA L21-30P Input connection, TAA Compliant

$1,171.44

Brand: Tripp Lite
Part Number (MPN): PDU3MV6L2130A
UPC / GTIN: 037332182746
Datasheet: PDF

Tripp Lite series 3-Phase Local Metered PDU, 8.6 kW, 45 208V outlets (36 C13, 9 C19), 6 ft. (1.83 m) NEMA L21-30P Input connection, TAA Compliant

Manufacturer Warehouse: 46 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

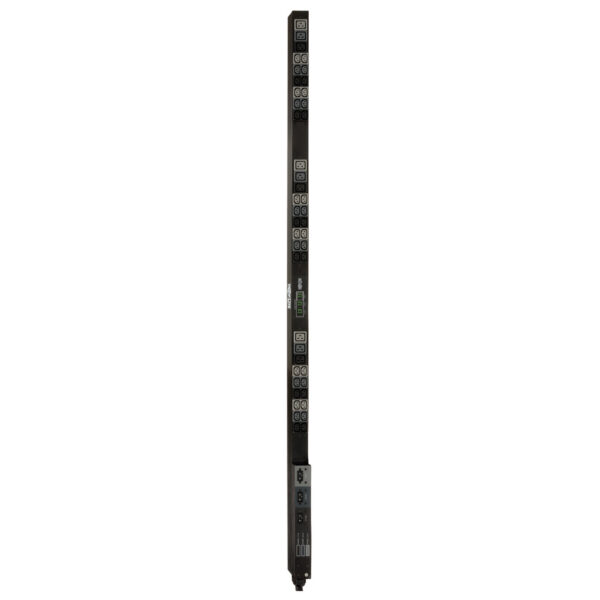

  • Local Metered 8.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount
  • Reports voltage and load per-phase via set of 3 digital current displays
  • NEMA L21-30P (3P+N+E) 208V 3 phase input, 6 ft. (1.83 m) line cord
  • 45 208V outlets (36 C13, 9 C19) with included plug-lock cord retention sleeves
  • Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
  • Toolless button-mount installation, TAA Compliant

Features

  • 8.6kW 3 phase 208V Local Metered Power Distribution Unit / rack PDU (rPDU)
  • Set of 3 built-in current meters continuously report load current in amps for all 3 output phases

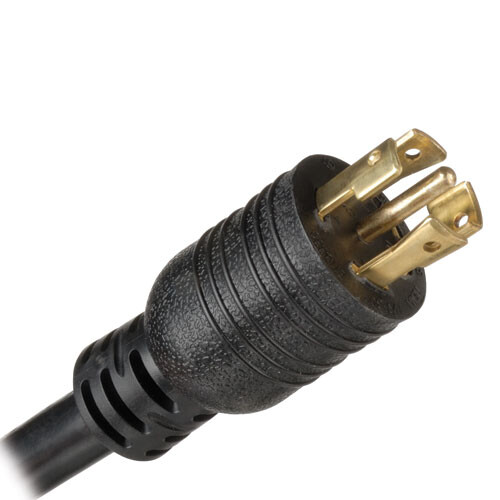

  • Attached NEMA L21-30P (3P+N+E) 208V 3 phase input plug with 6 ft. / 1.8m cord
  • 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
  • 45 total 208V outlets (36 C13, 9 C19) arranged in three breakered single phase output load banks
  • Included cord retention sleeves keep vital network equipment plugged in and continuously powered
  • Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
  • TAA Compliant

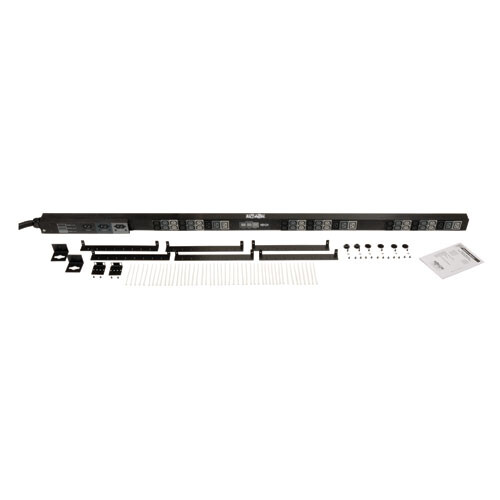

Package Includes

  • Local Metered PDU with pre-installed mounting buttons
  • Cord retention sleeves (36 C14, 9 C19)
  • Spare installation buttons (2 9mm / 4 6mm)
  • Rack mounting brackets
  • Owner’s manual
Weight 22.72 lbs
Dimensions 75.87 × 9.65 × 7.09 in
UPC Code

037332182746
Cord Length

6
Max Input Amps

24
Brand

PDU Type

Local Metered
Input Phase

3-Phase
PDU Input Voltage

208
Recommended Electrical Service

Three-phase 30A 208V service
Maximum Input Amps Details

Agency de-rated to 24A continuous
PDU Plug Type

NEMA L21-30P
Input Cord Length (m)

1.83
Output Capacity Details

8.6kW (208V) total capacity; 13.9A max per output phase (L1-L2, L2-L3, L3-L1), 12A max per C13 outlet
Frequency Compatibility

50 / 60 Hz
Output Receptacle Details

Compatible with Eaton Tripp Lite Power Cords
Output Receptacles

(36) C13; (9) C19
Output Nominal Voltage

208V
Overload Protection

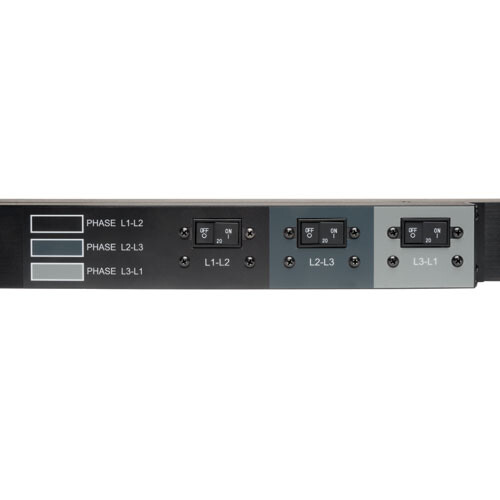

Three 20A double-pole circuit breakers (1 per output phase)
Reported Load Segments

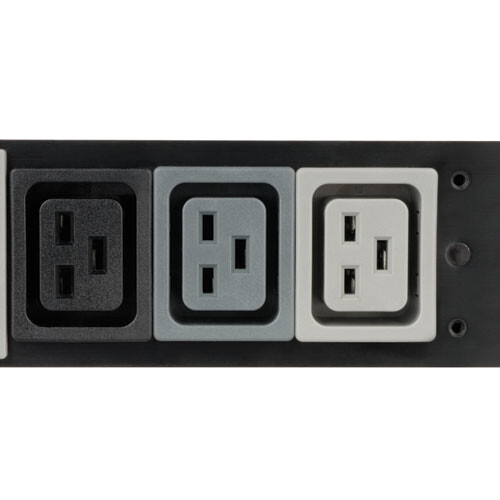

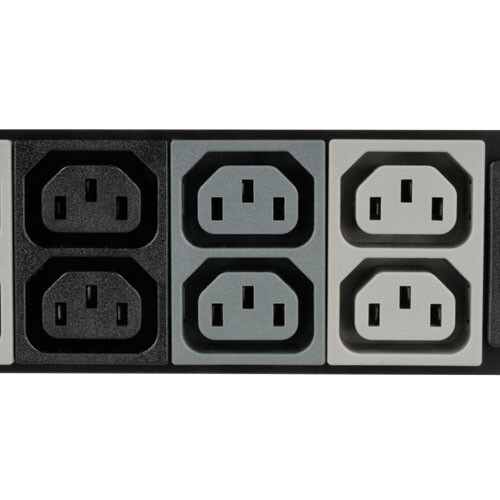

Supports local monitoring of current for each output phase (13.8A balanced max per output load bank L1-L2, L2-L3 and L3-L1); Outlets are color coded and labeled for phase and load bank identification; L1-L2 feeds black outlets; L2-L3 feeds dark-gray outlets; L3-L1 feeds light-gray outlets
Front Panel LCD Display

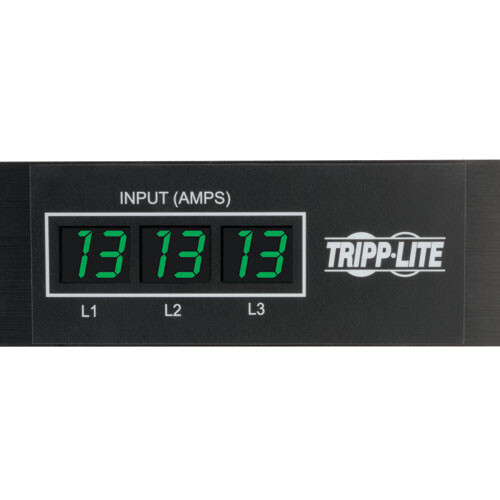

Set of 3 digital current meters report output current per phase
Material of Construction

Metal
Rack Height

0U
Form Factors Supported

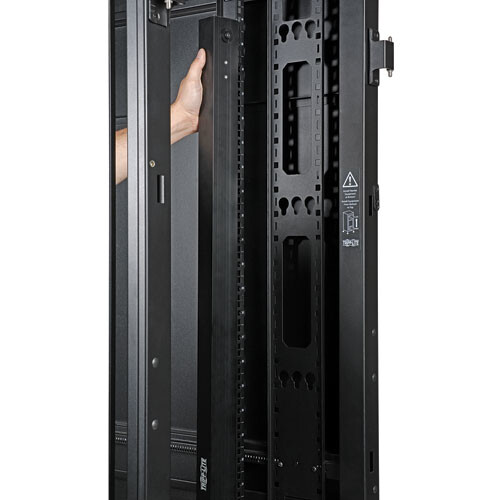

Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
PDU Form Factor

Vertical (0U)
Shipping Dimensions (hwd / cm)

18.01 x 24.51 x 192.71
Shipping Weight (kg)

10.31
Unit Dimensions (hwd / cm)

177.8 x 6.73 x 5.6
Unit Weight (kg)

6.12
Operating Temperature Range

32° to 104°F (0° to 40°C)
Storage Temperature Range

-22° to 122°F (-30° to 50°C)
Relative Humidity

5% to 95% non-condensing
Operating Elevation

0-10000 ft. (0-3000 m)
Product Certifications

RETIE (Colombia); NOM (Mexico); UL 62368-1
Product Compliance

RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)

2-year limited warranty
