C20 input with detachable 12 ft. (3.7 m) cord and L6-20P adapter
14 total outlets—12 C13 and 2 C19; Compatible with Eaton Tripp Lite power cords
Switchless design prevents accidental shutdown
Reversible all-metal housing
Installs in rack, on wall or under counter
Overview

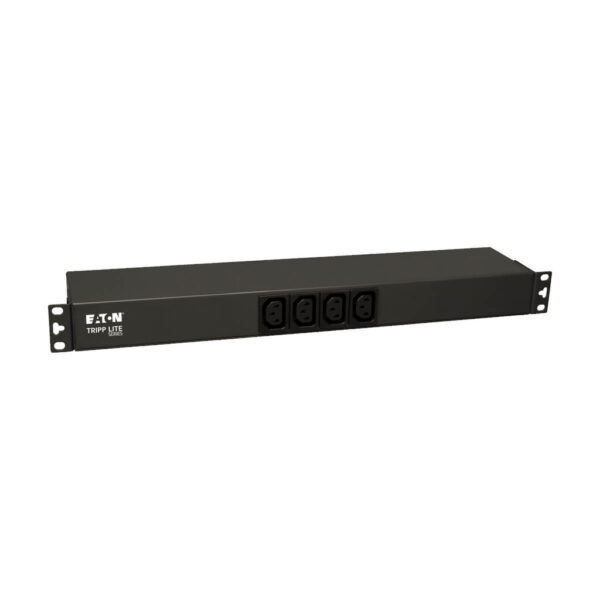

The PDUH20DV 1.6-3.8kW Single-Phase 100-240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH20DV features 14 total outlets—four C13 in front and eight C13 and two C19 in the rear.

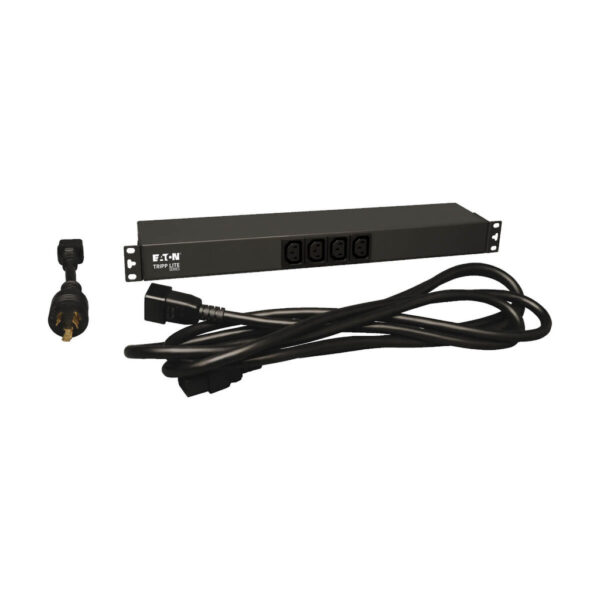

The C20 input plug with detachable 12-ft. (3.66 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment. A NEMA L6-20P adapter is included for 208/240V power environments. The C20 inlet accepts any country-specific power cord with a C19 connector.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
Features
Reliable Single-Phase 16A 100-240V Power Distribution
Versatile no-frills PDU for data centers, server rooms and network wiring closets

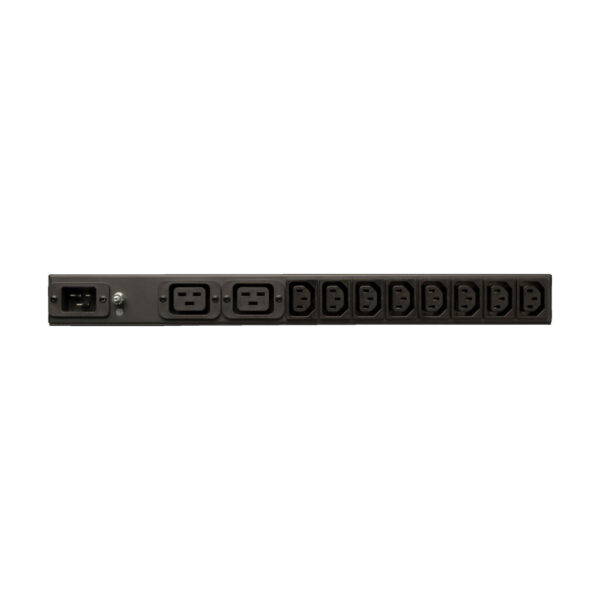

14 total outlets—4 C13 in front, 8 C13 and 2 C19 in rear
C20 input with detachable 12-ft. (3.66 m) cord and NEMA L6-20P adapter
Inlet accepts any country-specific power cord with C19 connector
Rear-panel grounding lug
Switchless Design
Prevents accidental shutdowns and costly downtime
Versatile Installation Options
Reversible all-metal housing faces front or rear in rack
The PDUH20DV rack PDU (rPDU) supports 1U horizontal or 0U vertical mounting in EIA-standard 19 in. racks
3.84kW (240V), 3.68kW (230V), 3.52kW (220V), 3.33kW (208V), 3.2kW (200V), 2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Frequency Compatibility
50 / 60 Hz
Output Receptacle Details
Compatible with Eaton Tripp Lite Power Cords
Output Receptacles
(12) C13; (2) C19
Output Nominal Voltage
100-240V
Material of Construction
Metal
Rack Height
1U
Form Factors Supported
1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
Minimum Required Rack Depth (cm)
17.27
Outlets Measurement (Center to Center)
Distance between front (C13) outlets = 28.75mm; Distance between rear (C19) outlets = 55mm; Distance between rear (C13) outlets = 28.75mm
PDU Form Factor
Horizontal (1U)
Shipping Dimensions (hwd / cm)
5.72 x 27.69 x 51.05
Shipping Weight (kg)
2.49
Unit Dimensions (hwd / cm)
4,45 x 43,8 x 9,5
Unit Weight (kg)
1.70
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m)
Grounding
Grounding lug
Product Certifications
IEC 62368-1; CAN/CSA-C22.2 No. 62368-1 (Canada); NOM (Mexico); UL 62368-1
Product Compliance
RoHS; FCC Part 15 Class A (USA)
Product Warranty Period (Worldwide)
5-year limited warranty
