Tripp Lite series 1.4kW Single-Phase Local Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount

Name: Tripp Lite series 1.4kW Single-Phase Local Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount
Brand: Tripp Lite
SKU: PDUMH15
Price: 187.33 CAD
Availability: InStock

$187.33

Brand: Tripp Lite

Part Number (MPN): PDUMH15

UPC / GTIN: 037332132529

Datasheet: PDF

Tripp Lite series 1.4kW Single-Phase Local Metered PDU, 120V Outlets (13 5-15R), 5-15P, 100-127V Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount

Toronto Stock: 34 available

Manufacturer Warehouse: 2,238 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Local metered single phase 12A 120V PDU
1U horizontal rackmount, Digital current meter
NEMA 5-15P input with 15-ft. (4.57 m) line cord

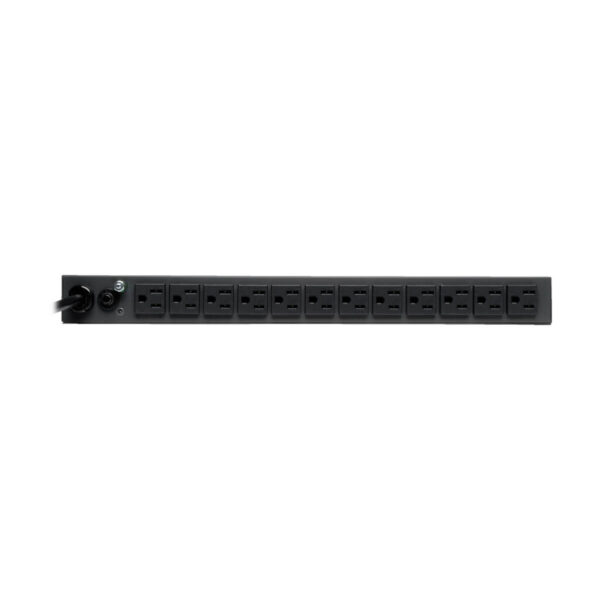

13 NEMA 5-15R outlets (1 front / 12 rear)
Reversible housing, 4.5 in. / 11.4 cm depth

Features

15A single phase 120V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency de-rated to 12A continuous)

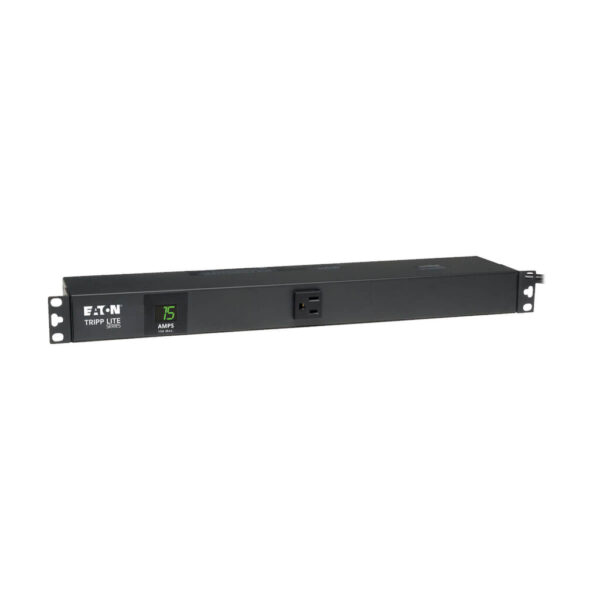

Built-in 2 digit visual meter continuously reports PDU load level in amps

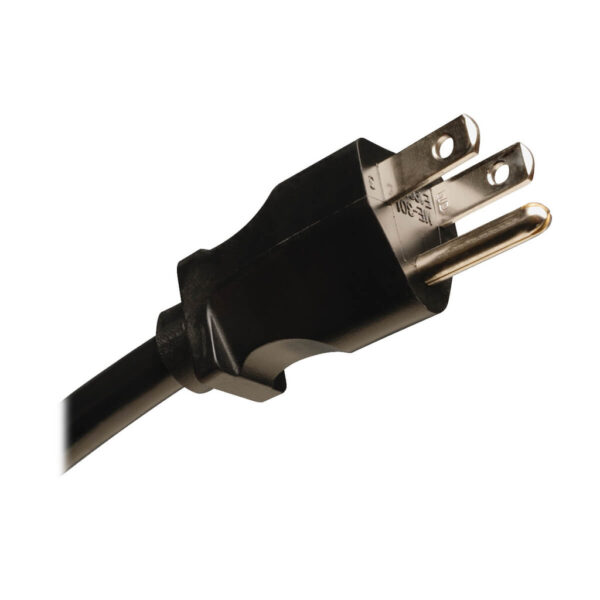

Attached NEMA 5-15P 15A 120V input plug with 15-ft. (4.57 m) line cord
1U horizontal rackmount format installs in one rack space
13 NEMA 5-15R outlets (1 front facing / 12 rear)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug

Package Includes

PDUMH15 Local Metered rackmount PDU
Owner’s manual with warranty information

Weight	5.3 lbs
Dimensions	9.5 × 20.5 × 2 in
UPC Code	037332132529
Cord Length	14.99
Max Input Amps	12
Rack Depth	7.5
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	120
Recommended Electrical Service	Single-phase 15A 120V service
Maximum Input Amps Details	Agency de-rated to 12A continuous
PDU Plug Type	NEMA 5-15P
Input Cord Length (m)	4.57
Output Capacity Details	1.44kW (120V) / 12A total capacity; 12A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(13) 5-15R
Output Nominal Voltage	120V
Overload Protection	15A Breaker
Front Panel LCD Display	Digital display reports total PDU output current in amps
Material of Construction	Metal
Rack Height	1U
Form Factors Supported	1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
Minimum Required Rack Depth (cm)	19.05
Outlets Measurement (Center to Center)	Rear Side = 30.20mm
PDU Form Factor	Horizontal (1U)
Shipping Dimensions (hwd / cm)	5.08 x 52.07 x 24.13
Shipping Weight (kg)	2.40
Unit Dimensions (hwd / cm)	4.45 x 44.45 x 11.43
Unit Weight (kg)	2.04
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Grounding	Rear grounding lug
Product Certifications	RETIE (Colombia); NOM (Mexico); UL 60950-1
Product Compliance	RoHS
Product Warranty Period (Worldwide)	2-year limited warranty
WEXT1B	Extended Warranty and Technical Support for Select Products – DC Power, Keyspan, KVM, PDUs, Inverters, Power Management
WEXT2B	Extended Warranty and Technical Support for Select Products – DC Power Supplies, Keyspan Products, KVM Switches, PDUs, Power Inverters, Power Management
WEXT3B	Extended Warranty and Technical Support for Select Products – DC Power Supplies, Keyspan Products, KVM Switches, PDUs, Inverters, Power Management
