Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
Visual current meter; reversible housing

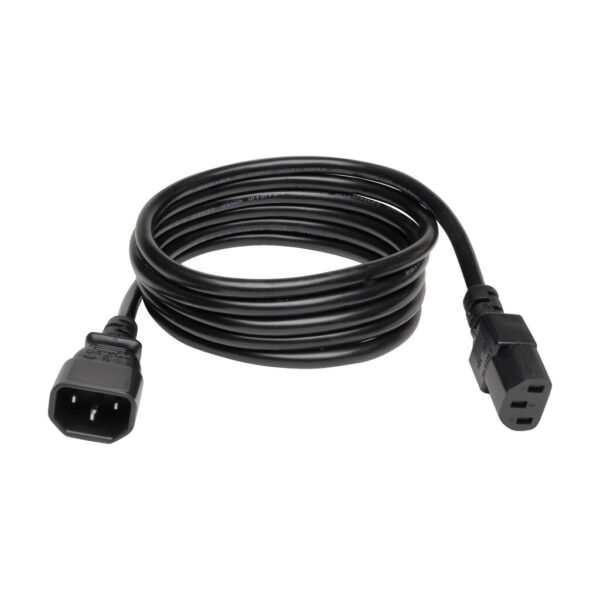

C14 inlet; 6.5ft / 2m C14 power cable included
8 C13 switched outlets with cord retention brackets
Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
Temperature, humidity and contact-closure monitoring options
TAA Compliant
Features

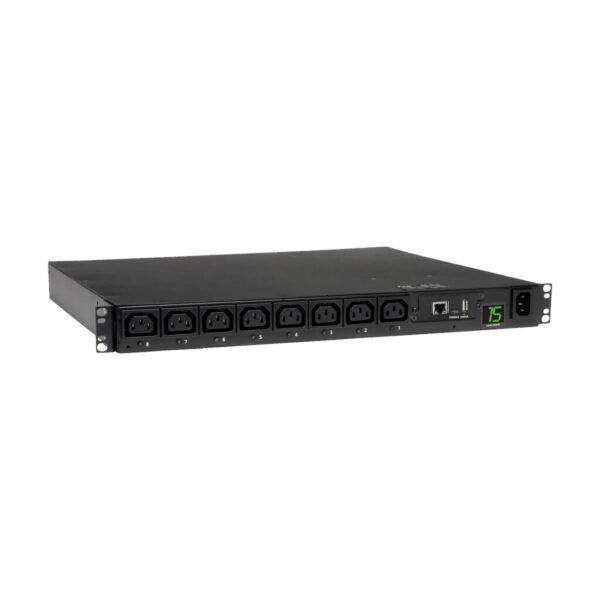

208/230V Switched Power Distribution Unit / rack PDU (rPDU) with built-in web/network interface (12A 208V and 10A at 230V)
C14 power inlet accepts a wide variety of worldwide input cord options
Includes 6.5 ft. / 2m C14 cable
1U horizontal rackmount form factor
8 switched C13 outlets
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
In-rack environmental reporting with optional temperature, humidity and contact-closure sensor options
10/100 Mbps auto-sensing
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Agency de-rated to 12A at 200, 208, 220 & 240V; Agency de-rated to 10A at 230V
Input Connection Type
C14 inlet
PDU Plug Type
IEC-320 C14
Input Cord Length (m)
1.98
Output Capacity Details
2.5kW (208V), 2.3kW (230V) / 12A (10A CE) total capacity
Frequency Compatibility
50 / 60 Hz
Output Receptacle Details
Compatible with Eaton Tripp Lite Power Cords
Output Receptacles
(8) C13
Output Nominal Voltage
208/230V
Customized Load Management Receptacles
8 individually switched output receptacles
Front Panel LCD Display
Digital display reports total PDU output current in amps
LED Indicators
8 LEDs display power on-off status for each output receptacle
Material of Construction
Metal
Rack Height
1U
Form Factors Supported

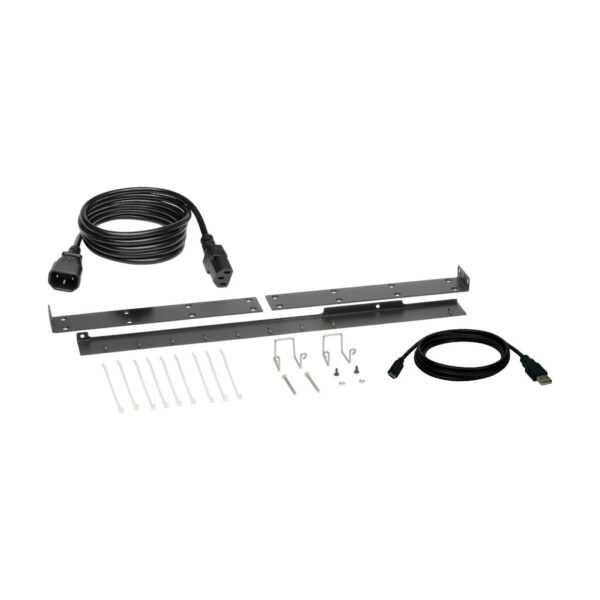

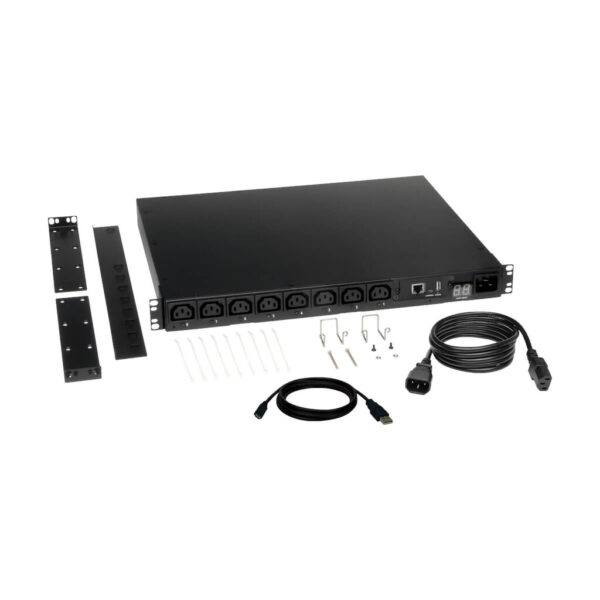

1U rackmount, Includes mounting accessories for 2-4 post racks
Minimum Required Rack Depth (cm)
43.43
PDU Form Factor
Horizontal (1U)
Shipping Dimensions (hwd / cm)
14.48 x 52.58 x 58.42
Shipping Weight (kg)
5.99
Unit Dimensions (hwd / cm)
2,87 x 43,9 x 37,6
Unit Weight (kg)
4.08
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m)
PowerAlert Software
LX Platform Interface: PowerAlert Device Manager
Communications Cable
Micro-USB- to-USB A configuration/console Access cable
Network Monitoring Port
RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility
Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Network Compatibility
10 Mbps; 100 Mbps (Fast Ethernet)
Grounding
Back panel grounding lug
High Availability PDU Features
Auto Probe Monitoring and Reboot (included); Auto Load Shedding
Product Certifications
CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Product Compliance
RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)
2-year limited warranty
