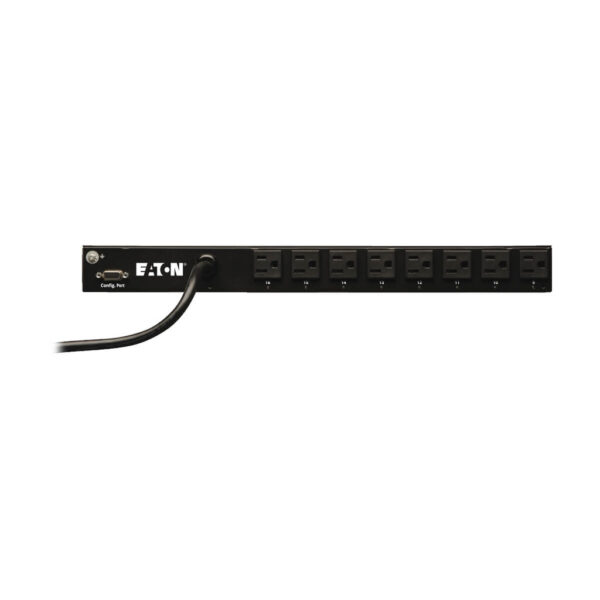

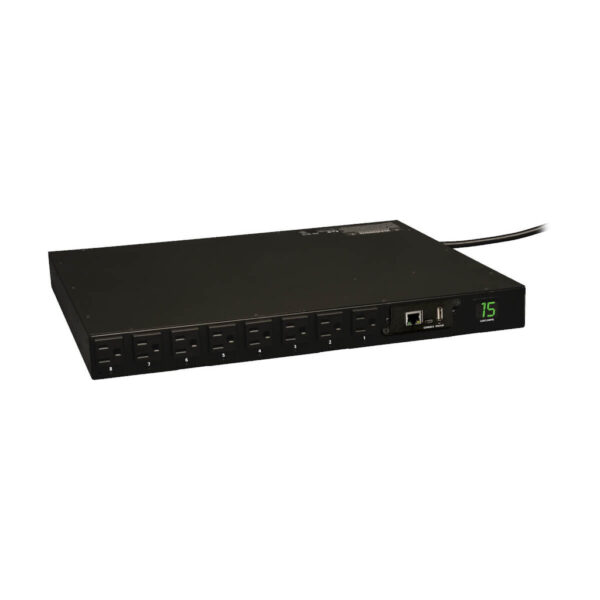

Eaton 1.4kW Single-Phase Switched PDU - LX Interface, 120V Outlets (16 5-15R), 5-15P, 120V Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

Eaton 1.4kW Single-Phase Switched PDU – LX Interface, 120V Outlets (16 5-15R), 5-15P, 120V Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

Name: Eaton 1.4kW Single-Phase Switched PDU - LX Interface, 120V Outlets (16 5-15R), 5-15P, 120V Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA
Brand: Tripp Lite
SKU: PDUMH15NET
Price: 773.05 CAD
Availability: InStock

$773.05

Brand: Tripp Lite

Part Number (MPN): PDUMH15NET

UPC / GTIN: 037332157690

Datasheet: PDF

Eaton 1.4kW Single-Phase Switched PDU – LX Interface, 120V Outlets (16 5-15R), 5-15P, 120V Input, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

Toronto Stock: 4 available

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Switched 12A 120V PDU, 1U horizontal rackmount format
Reports voltage, frequency and load level via Ethernet interface
Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
NEMA 5-15P input with attached 12-ft. (3.66 m) line cord
16 NEMA 5-15R switched outlets with cord retention brackets
Temperature, humidity and contact closure monitoring options
TAA Compliant

Features

15A 120V Switched Power Distribution Unit / rack PDU (rPDU) with built-in web/network interface (Agency derated to 12A continuous)
Attached NEMA 5-15P 120V single phase input; 12-ft. (3.66 m) cord
1U horizontal rackmount form factor
16 switched NEMA 5-15R outlet (8 front / 8 rear)
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Network interface provides PDU control and data regarding input voltage and total output load level in amps
Digital display continuously reports total output load level in amps
Supports user-specified alarm notification thresholds
10/100 Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
1U horizontal rack installation supported in 2 or 4 post racks with included mounting brackets
Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
Included cord retention brackets
Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases

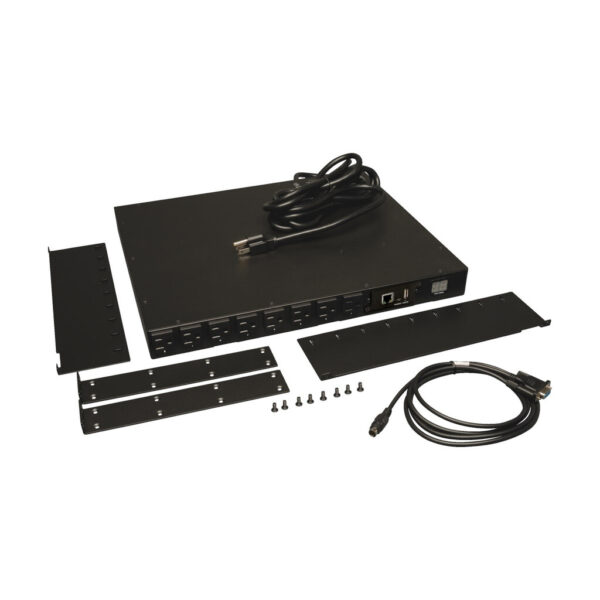

Package Includes

PDUMH15NET Switched PDU
Installable 1U mounting brackets
Configuration cable
User manual

Weight	17 lbs
Dimensions	22.7 × 20.6 × 5.4 in
UPC Code	037332157690
Cord Length	12.01
Max Input Amps	12
Rack Depth	18.5
Brand	Tripp Lite
PDU Type	Switched
Input Phase	Single-Phase
PDU Input Voltage	120
Recommended Electrical Service	Single-phase 15A 120V service
Maximum Input Amps Details	Agency de-rated to 12A continuous
PDU Plug Type	NEMA 5-15P
Input Cord Length (m)	3.66
Output Capacity Details	1.44kW (120V) / 12A total capacity; 12A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(16) 5-15R
Output Nominal Voltage	120V
Customized Load Management Receptacles	16 individually switched output receptacles
Front Panel LCD Display	Digital display reports total PDU output current in amps
LED Indicators	16 LEDs display power on-off status for each output receptacle
Material of Construction	Metal
Rack Height	1U
Form Factors Supported	1U rackmount
Minimum Required Rack Depth (cm)	46.99
PDU Form Factor	Horizontal (1U)
Shipping Dimensions (hwd / cm)	13.72 x 52.32 x 57.66
Shipping Weight (kg)	7.71
Unit Dimensions (hwd / cm)	4.44 x 44.4 x 39.4
Unit Weight (kg)	5.67
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
PowerAlert Software	LX Platform Interface: PowerAlert Device Manager
Communications Cable	Micro-USB- to-USB A configuration/console Access cable
Network Monitoring Port	RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet)
Grounding	Rear grounding lug
High Availability PDU Features	Auto Probe Monitoring and Reboot (included); Auto Load Shedding
Product Certifications	NOM (Mexico); UL 60950-1
Product Compliance	RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)	2-year limited warranty
WEXT1E	Extended Warranty and Technical Support for Select Products – KVM, PDU, Inverters
WEXT2E	Extended Warranty and Technical Support for Select Products – KVM Switches, PDUs, Power Inverters
WEXT3E	Extended Warranty and Technical Support for Select Products – KVM Switches, PDUs, Power Inverters
