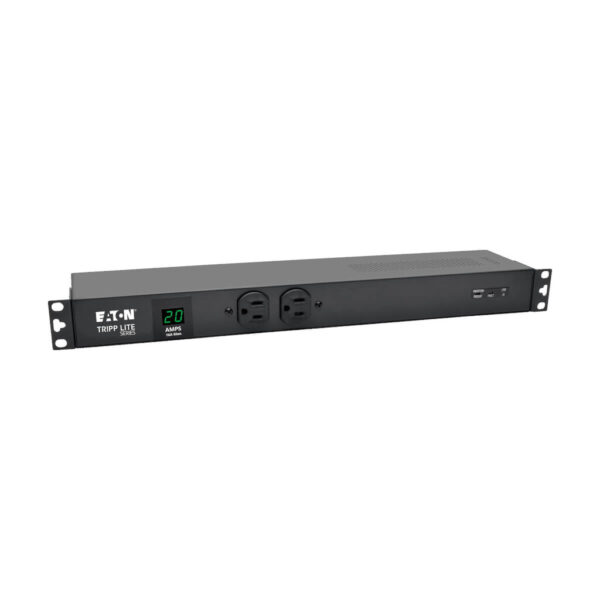

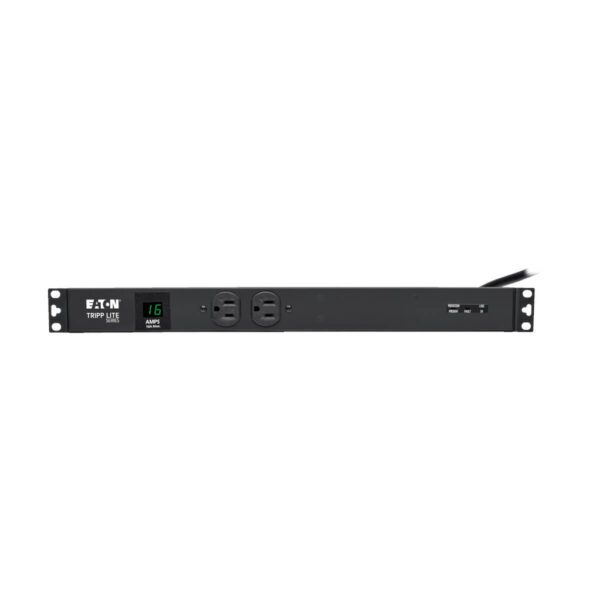

Local Metered single phase 16A 120V PDU with ISOBAR Surge Suppression
1U Horizontal rackmount, Digital current meter
3840 Joule suppression rating, Diagnostic LEDs
NEMA L5-20P input with 5-20P adapter; 15-ft. / 4.57 m line cord

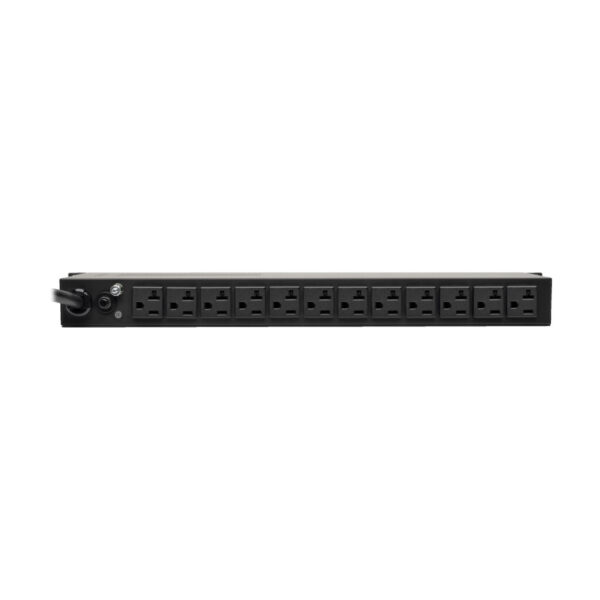

12 NEMA 5-20R outlets (rear), 2 5-15R outlets (front)
Reversible housing; 4.5in /11.4cm depth
Features
20A single phase 100-127V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency de-rated to 16A continuous)

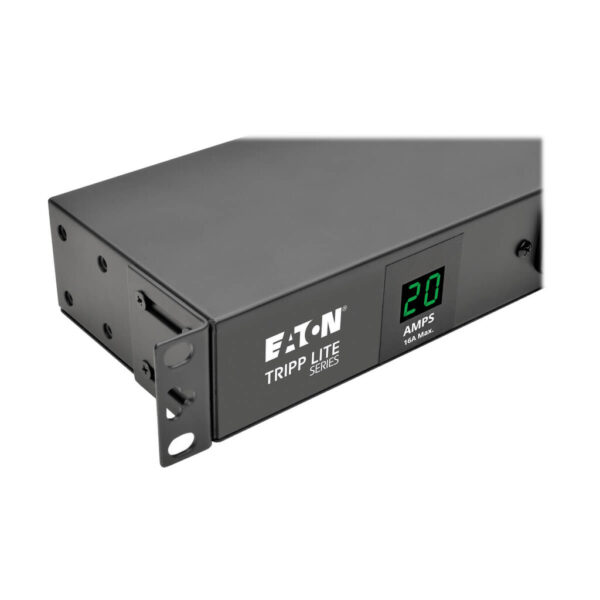

Built-in 2 digit visual meter continuously reports PDU load level in amps
ISOBAR Network-grade AC surge and noise suppression with 3840 Joules AC suppression rating and EMI/RFI filtering
Set of 3 diagnostic LEDs report LINE OK (green), suppressor or wiring FAULT (red) and PROTECTION PRESENT (green) status
Compatible with 100-127V AC sine wave input; For best results, connect the PDU only to true sine wave mains, generator or UPS power source (avoid connecting this surge suppressor to UPS systems producing modified sine wave, PWM sine wave and other non-sinusoidal output waveforms)

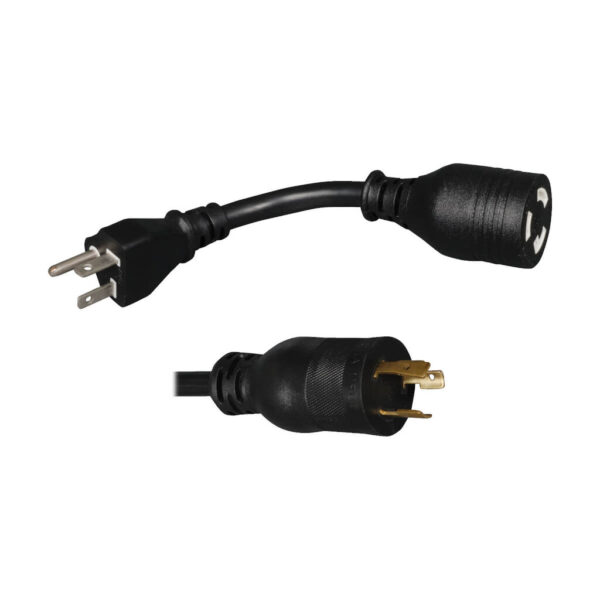

Attached NEMA L5-20P 20A 120V input plug with 15-ft. (4.57 m) cord (NEMA 5-20P plug adapter included)
1U Horizontal rackmount format installs in one rack space
Switchless design prevents accidental shut-off
12 NEMA 5-20R outlets (rear), 2 NEMA 5-15R outlets (front)
Included mounting accessories support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Back panel grounding lug
Package Includes
PDUMH20-ISO Local Metered PDU with Surge Suppression
2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 16A total capacity; 16A max per 5-15/20R outlet; 12A max per 5-15R outlet
Frequency Compatibility
50 / 60 Hz
Output Receptacles
(2) 5-15R; (12) 5-15/20R
Output Nominal Voltage
100-127V
Overload Protection
20A circuit breaker
Front Panel LCD Display
Two digit current meter reports PDU output load in amps
Switches
No power switch
LED Indicators
Set of 3 diagnostic LEDs continuously report status for LINE OK (green), suppressor or wiring FAULT (red) and PROTECTION PRESENT (green)
AC Suppression Joule Rating
3840
AC Suppression Response Time
NM = 0 ns. CM = <1 ns
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping Voltage (RMS)
140
AC Suppression Surge Current Rating
60,000 amps
EMI / RFI Filtering
40-80 dB
Immunity
Conforms to IEEE 587 / ANSI C62.41
Material of Construction
Metal
Rack Height
1U
Form Factors Supported
1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
Minimum Required Rack Depth (cm)
24.13
PDU Form Factor
Horizontal (1U)
Shipping Dimensions (hwd / cm)
5.72 x 52.07 x 25.40
Shipping Weight (kg)
3.22
Unit Dimensions (hwd / cm)
4.45 x 44.45 x 11.43
Unit Weight (kg)
2.09
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m)
Grounding
Rear grounding lug
Product Certifications
CAN/CSA-C22.2 No. 269.3 (Canada); NOM (Mexico); RETIE (Colombia); UL 1449
Product Compliance
RoHS
Product Warranty Period (Worldwide)
2-year limited warranty
