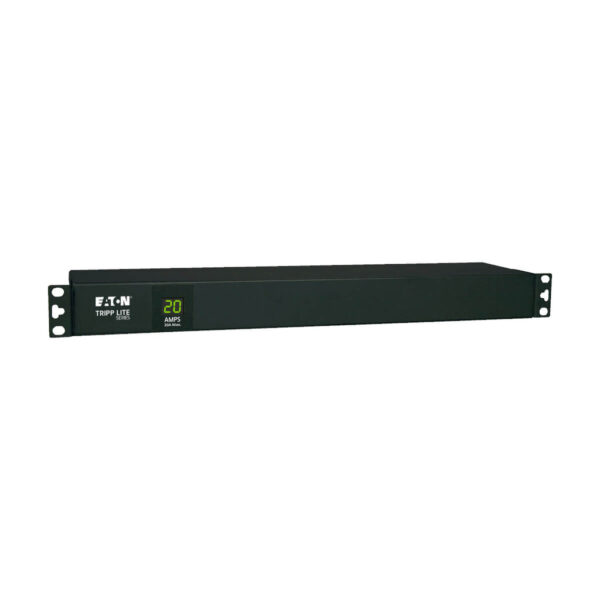

Tripp Lite series 2.4kW Single-Phase Local Metered PDU, 120V (12 5-15/20R), L5-20P / 5-20P, 120V Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount

Name: Tripp Lite series 2.4kW Single-Phase Local Metered PDU, 120V (12 5-15/20R), L5-20P / 5-20P, 120V Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount
Brand: Tripp Lite
SKU: PDUMH20
Price: 257.68 CAD
Availability: InStock

$257.68

Brand: Tripp Lite

Part Number (MPN): PDUMH20

UPC / GTIN: 037332142504

Datasheet: PDF

Tripp Lite series 2.4kW Single-Phase Local Metered PDU, 120V (12 5-15/20R), L5-20P / 5-20P, 120V Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount

Toronto Stock: 1 available

Manufacturer Warehouse: 117 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Local metered single phase 20A 120V PDU
1U horizontal rackmount; digital current meter
NEMA 5-20P / L5-20P input; 15-ft. (4.57 m) line cord
12 NEMA 5-15/20R outlets
Reversible housing; 4.5 in. / 11.4cm depth

Features

20A single phase 120V Local Metered Power Distribution Unit / rack PDU (rPDU)
Built-in 2 digit visual meter continuously reports PDU load level in amps
Attached NEMA L5-20P 20A 120V input plug with 15-ft. (4.57 m) line cord
Includes 5-20P 20A 120V plug adapter
1U horizontal rackmount format installs in one rack space

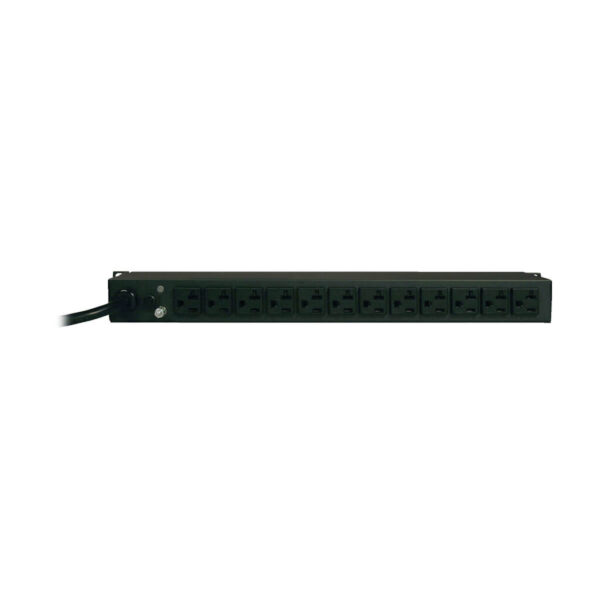

12 NEMA 5-15/20R outlets
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug

Package Includes

PDUMH20 Local Metered rackmount PDU
L5-20R to 5-20P plug adapter
Owner’s manual with warranty information

Weight	6.4 lbs
Dimensions	20.4 × 2.25 × 9.2 in
UPC Code	037332142504
Cord Length	14.99
Max Input Amps	20
Rack Depth	9.5
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	120
Recommended Electrical Service	Single-phase 20A 120V service
PDU Plug Type	NEMA 5-20P; NEMA L5-20P
Input Cord Length (m)	4.57
Output Capacity Details	2.4kW (120V) / 20A total capacity; 16A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(12) 5-15/20R
Output Nominal Voltage	120V
Overload Protection	20A circuit breaker
Front Panel LCD Display	Digital display reports total PDU output current in amps
Material of Construction	Metal
Rack Height	1U
Form Factors Supported	1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
Minimum Required Rack Depth (cm)	24.13
Outlets Measurement (Center to Center)	30.20mm
PDU Form Factor	Horizontal (1U)
Shipping Dimensions (hwd / cm)	23.37 x 5.72 x 51.82
Shipping Weight (kg)	2.90
Unit Dimensions (hwd / cm)	4.45 x 44.5 x 11.4
Unit Weight (kg)	1.36
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Grounding	Back panel grounding lug
Product Certifications	RETIE (Colombia); NOM (Mexico); UL 60950-1
Product Compliance	RoHS
Product Warranty Period (Worldwide)	2-year limited warranty
WEXT1B	Extended Warranty and Technical Support for Select Products – DC Power, Keyspan, KVM, PDUs, Inverters, Power Management
WEXT2B	Extended Warranty and Technical Support for Select Products – DC Power Supplies, Keyspan Products, KVM Switches, PDUs, Power Inverters, Power Management
WEXT3B	Extended Warranty and Technical Support for Select Products – DC Power Supplies, Keyspan Products, KVM Switches, PDUs, Inverters, Power Management
