Tripp Lite series 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

Name: Tripp Lite series 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA
Brand: Tripp Lite
SKU: PDUMH20HV
Price: 311.94 CAD
Availability: InStock

$311.94

Brand: Tripp Lite

Part Number (MPN): PDUMH20HV

UPC / GTIN: 037332159014

Datasheet: PDF

Tripp Lite series 3.7kW Single-Phase Local Metered PDU, 208/230V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12 ft. (3.66 m) Cord, 1U Rack-Mount, TAA

Toronto Stock: 8 available

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Local metered single phase 16A 208/230V PDU
1U horizontal rackmount; Digital current meter
C20 input with L6-20P plug adapter; 12 ft. (3.7 m) line cord
10 total outlets (8 C13, 2 C19); Compatible with Eaton Tripp Lite power cords
Reversible housing; 6.5 in. / 16.5 cm depth
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

16/20A single phase 208/230V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency de-rated to 16A continuous)

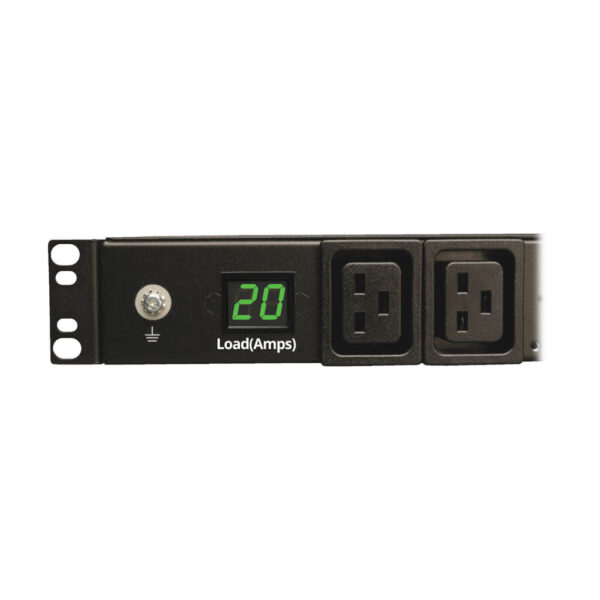

Built-in 2 digit visual meter continuously reports PDU load level in amps

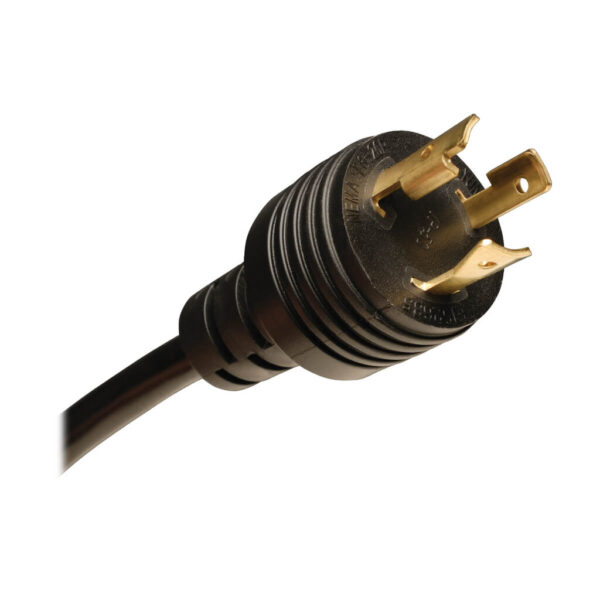

C20 inlet with C20 input cable and L6-20P adapter; 12-ft. (3.66 m) line cord
1U horizontal rackmount format installs in one rack space

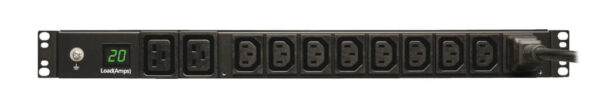

10 total outlets (8 C13 / 2 C19)
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
Back panel grounding lug
Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

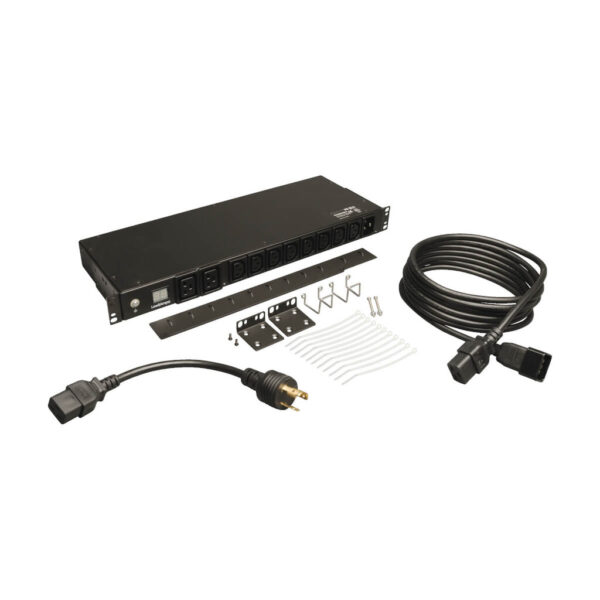

Package Includes

Rackmount PDU
C19 to L6-20P plug adapter
Rack mounting brackets

Weight	7.5 lbs
Dimensions	20.4 × 11.6 × 2.2 in
UPC Code	037332159014
Cord Length	12.01
Max Input Amps	16
Rack Depth	9.5
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	208; 230
Recommended Electrical Service	Single-phase 16/20A 230/208V service
Maximum Input Amps Details	Agency de-rated to 16A continuous
Input Connection Type	C20 inlet
PDU Plug Type	NEMA L6-20P; IEC-320 C20
Input Cord Details	Includes 12 ft. / 3.6m C19 to C20 power cable and L6-20P plug adapter
Input Cord Length (m)	3.66
Output Capacity Details	3.68kW (230V), 3.33kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords
Output Receptacles	(8) C13; (2) C19
Output Nominal Voltage	208/230V
Front Panel LCD Display	Digital display reports total PDU output current in amps
Material of Construction	Metal
Rack Height	1U
Form Factors Supported	1U rackmount. Includes mounting accessories for 2-4 post racks
Minimum Required Rack Depth (cm)	24.13
PDU Form Factor	Horizontal (1U)
Shipping Dimensions (hwd / cm)	5.59 x 29.46 x 51.82
Shipping Weight (kg)	3.40
Unit Dimensions (hwd / cm)	2,87 x 44,4 x 16,5
Unit Weight (kg)	3.08
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Grounding	Rear grounding lug
Product Certifications	IEC 62368-1; RETIE (Colombia); GOST (Russia); NOM (Mexico)
Product Compliance	RoHS; CE (Europe); EAC (Belarus, Kazakhstan, Russia); FCC Part 15 Class A (USA); UKCA; Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)	2-year limited warranty
Part Number	Description
WEXT1C	Extended Warranty and Technical Support for Select Products – DC Power, KVM, PDU, Inverters, Power Management
WEXT2C	Extended Warranty and Technical Support for Select Products – DC Power Supplies, KVM Switches, PDUs, Power Inverters, Power Management
WEXT3C	Extended Warranty and Technical Support for Select Products – Cables and Connectivity, DC Power Supplies, KVM Switches, PDUs, Power Inverters
