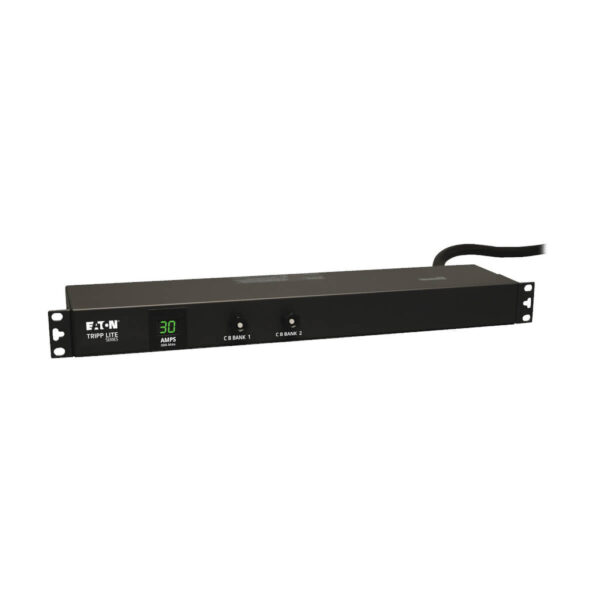

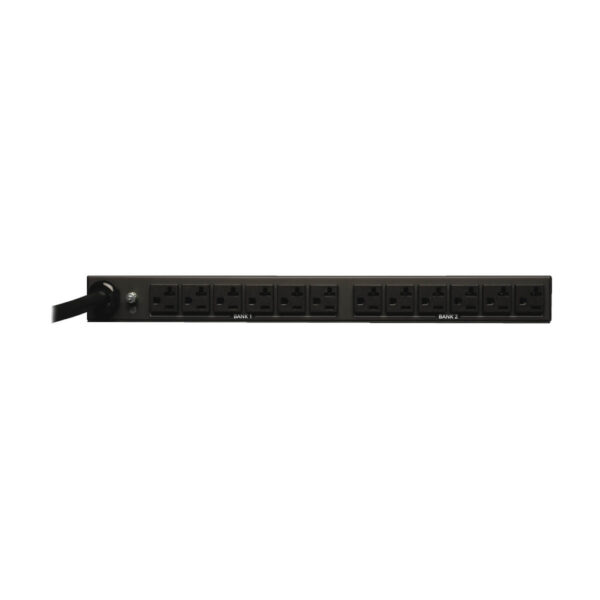

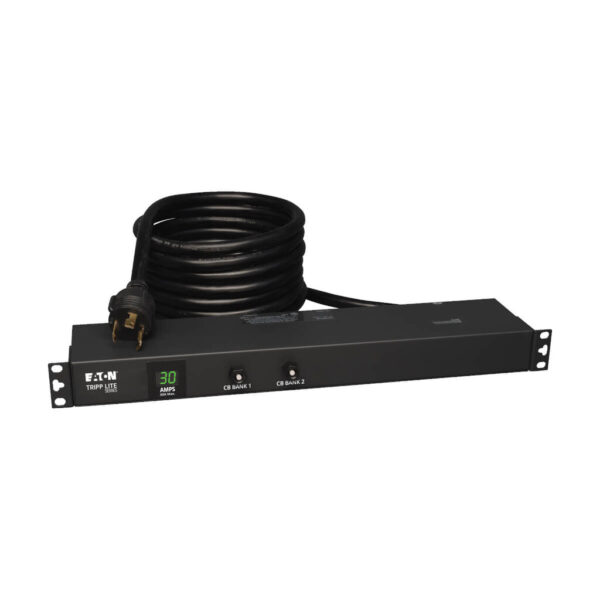

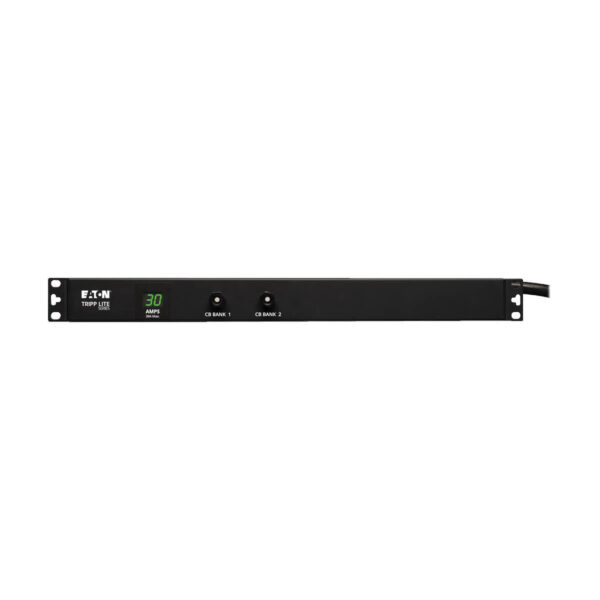

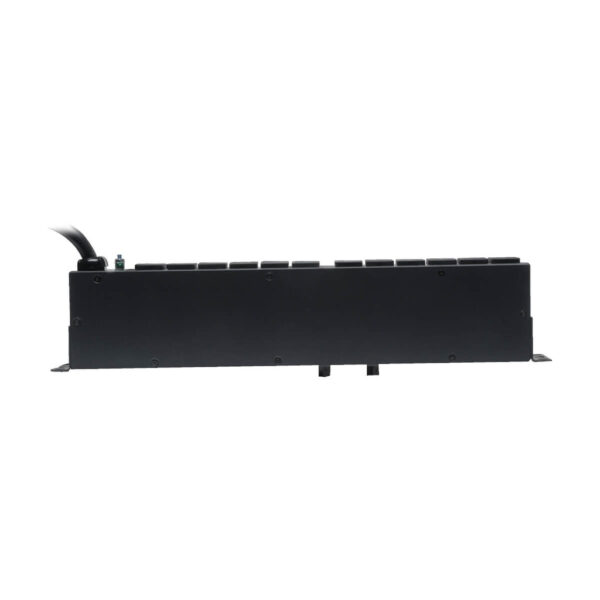

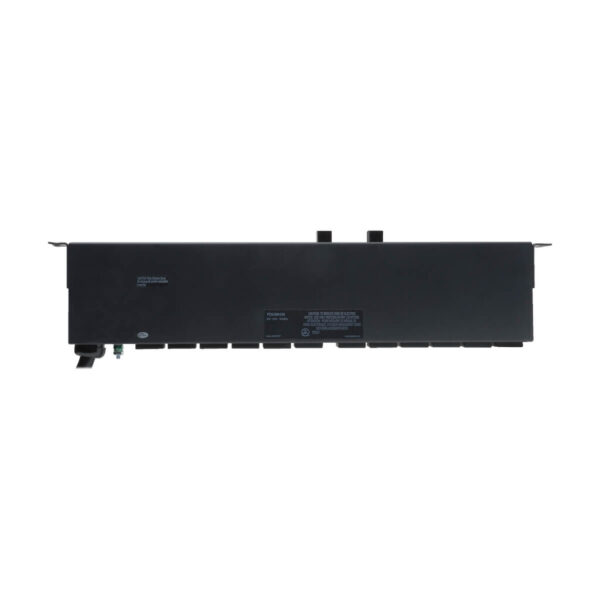

Tripp Lite series 2.9kW Single-Phase Local Metered PDU, 120V Outlets (12 5-15/20R), L5-30P, 15 ft. (4.57 m) Cord, 1U Rack-Mount

Name: Tripp Lite series 2.9kW Single-Phase Local Metered PDU, 120V Outlets (12 5-15/20R), L5-30P, 15 ft. (4.57 m) Cord, 1U Rack-Mount
Brand: Tripp Lite
SKU: PDUMH30
Price: 498.41 CAD
Availability: InStock

$498.41

Brand: Tripp Lite

Part Number (MPN): PDUMH30

UPC / GTIN: 037332157676

Datasheet: PDF

Tripp Lite series 2.9kW Single-Phase Local Metered PDU, 120V Outlets (12 5-15/20R), L5-30P, 15 ft. (4.57 m) Cord, 1U Rack-Mount

Toronto Stock: 8 available

Manufacturer Warehouse: 168 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Local Metered single phase 24A 120V 1U horizontal rackmount PDU
Two-digit current meter reports total PDU input current in amps
Attached 15-ft. (4.57 m) cord with NEMA L5-30P input plug
12 NEMA 5-15/20R outlets
Reversible housing, 6.5 in. / 16.5cm depth

Features

30A single phase 120V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency derated to 24A continuous)
Two-digit lighted meter reports total PDU input current in amps
Attached L5-30P 30A 120V input plug with 15-ft. (4.57 m) line cord
1U horizontal rackmount format installs in one rack space
12 NEMA 5-15/20R outlets
Outlets are arranged in two loading banks, each with separate 20A breaker protection
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Back panel grounding lug

Package Includes

PDUMH30 Local Metered rackmount PDU
Owner’s manual with warranty information

Weight	6.1 lbs
Dimensions	20.2 × 3.2 × 11 in
UPC Code	037332157676
Cord Length	14.99
Max Input Amps	24
Rack Depth	11.5
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	120
Recommended Electrical Service	Single-phase 30A 120V service
Maximum Input Amps Details	Agency de-rated to 24A continuous
PDU Plug Type	NEMA L5-30P
Input Cord Length (m)	4.57
Output Capacity Details	2.88kW (120V) / 24A total capacity; 20A max per breakered load bank; 16A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(12) 5-15/20R
Output Nominal Voltage	120V
Overload Protection	Two 20A breakers protect 6 outlets each
Front Panel LCD Display	Two digit current meter reports PDU input current in amps
Material of Construction	Metal
Rack Height	1U
Form Factors Supported	1U rackmount, 0U vertical rackmount, wall-mount, and under-counter installation
Minimum Required Rack Depth (cm)	29.21
Outlets Measurement (Center to Center)	Distance between outlets = 30.20mm; Distance between Bank 1 and Bank 2 = 41.45mm
PDU Form Factor	Horizontal (1U)
Shipping Dimensions (hwd / cm)	27.94 x 8.13 x 51.31
Shipping Weight (kg)	2.77
Unit Dimensions (hwd / cm)	4.45 x 44.5 x 16.5
Unit Weight (kg)	3.18
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Grounding	Rear grounding lug
Product Certifications	RETIE (Colombia); NOM (Mexico); UL 60950-1
Product Compliance	RoHS
Product Warranty Period (Worldwide)	2-year limited warranty
Part Number	Description
WEXT1C	Extended Warranty and Technical Support for Select Products – DC Power, KVM, PDU, Inverters, Power Management
WEXT2C	Extended Warranty and Technical Support for Select Products – DC Power Supplies, KVM Switches, PDUs, Power Inverters, Power Management
WEXT3C	Extended Warranty and Technical Support for Select Products – Cables and Connectivity, DC Power Supplies, KVM Switches, PDUs, Power Inverters
