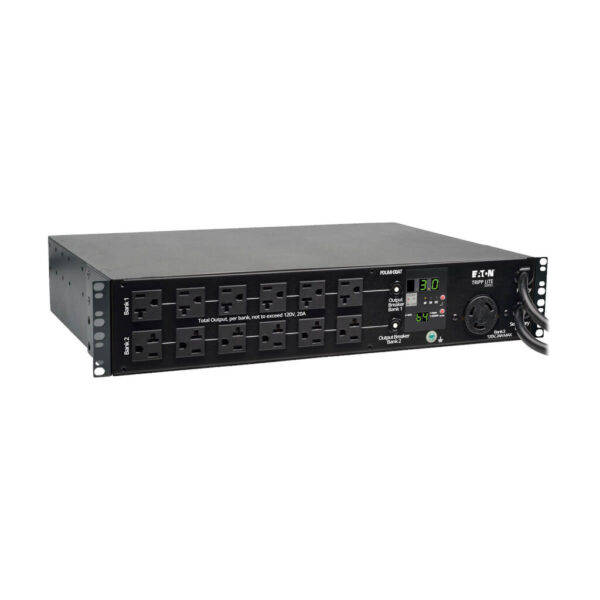

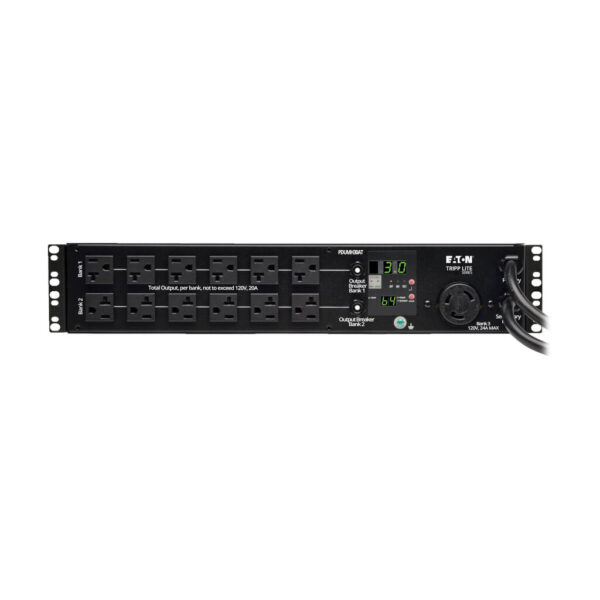

Tripp Lite series 2.9kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V L5-30P Inputs, 24 5-15/20R & 1 L5-30R Outputs, 2U, TAA

Quick Specs

• Single phase 24A 120V Auto Transfer Switch / ATS PDU; Highly reliable Solid State Switching
• Enables redundant A/B power option for single-corded network devices
• Separate primary and secondary inputs connect to any two compatible power sources
• 2U horizontal rackmount; 2 L5-30P inputs; 24 5-15/20R and 1 L5-30R outlets

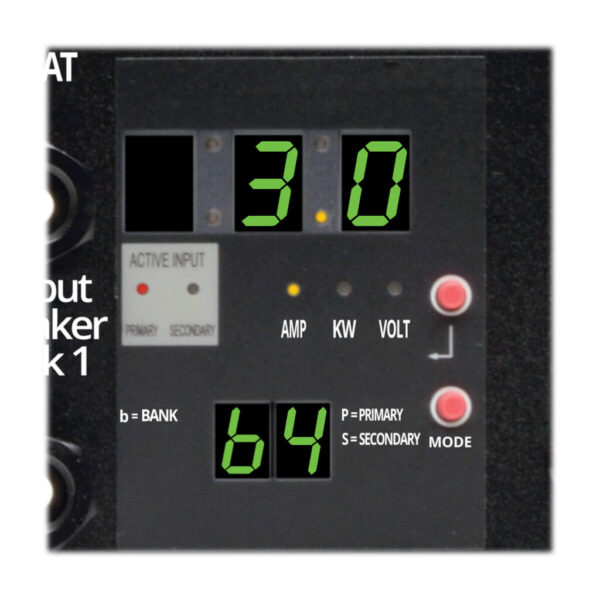

• Digital meter reports voltage, kW load level and output amperage in 4 load segments
• TAA Compliant

Features

• 120V 30A Automatic Transfer Switch (ATS) / Local Metered PDU (Agency de-rated to 24A continuous)
• Provides a redundant A/B power option for non-redundant networking equipment with a single input power cord
• Visual meter reports output amp and kW power consumption, plus input voltage
• 2U horizontal rack-mount form factor; 11.9 in. / 30.2 cm depth
• 25 outlets (24 5-15/20R, 1 L5-30R)

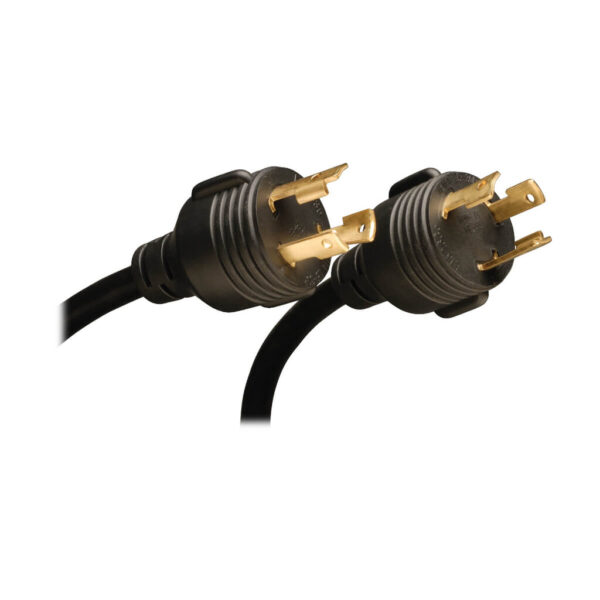

• Set of two 10-ft. / (3.05 m) NEMA L5-30P input line cords enable separate PRIMARY and SECONDARY input connections
• ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
• Highly reliable solid-state switching enables fast 1-5 millisecond transfer between primary and secondary inputs
• ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to SmartOnline series)
• Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
• On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
• Front panel LEDs confirm power availability on both input lines
• Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases

Package Includes

• ATS / Local Metered PDU

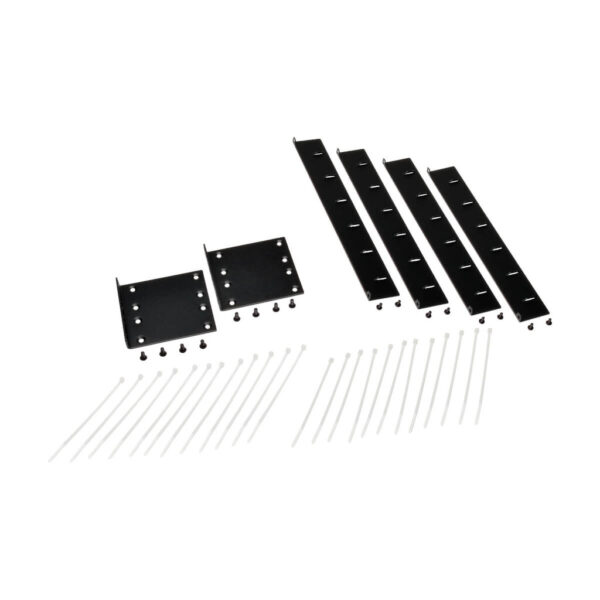

• Rackmount installation brackets
• Installable plug-retention shelves & cable ties
