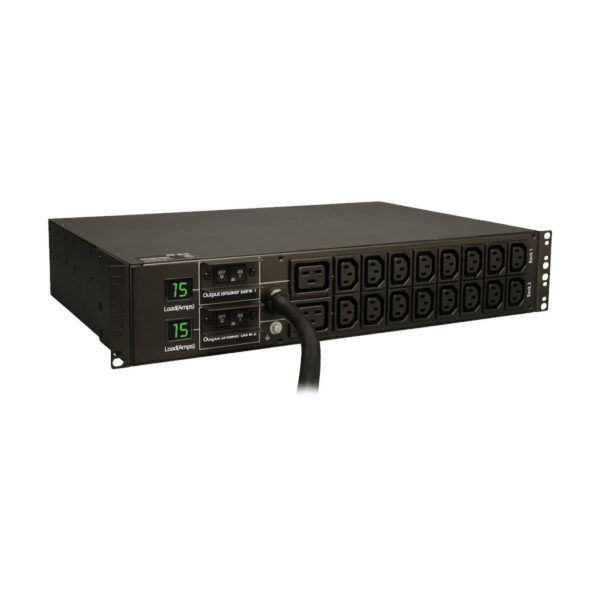

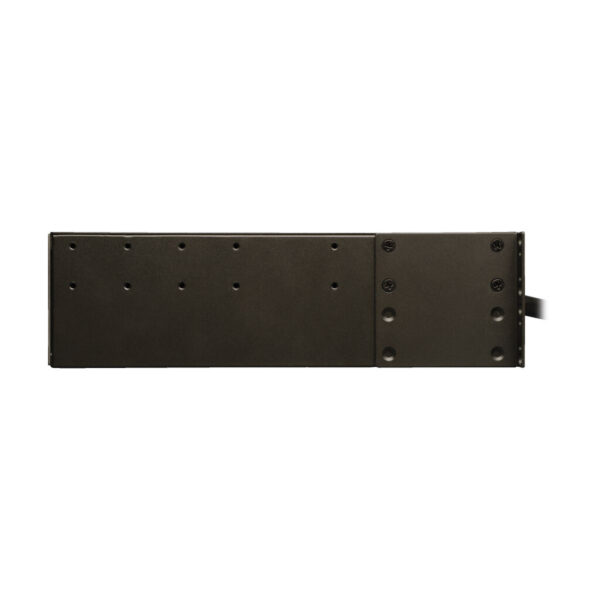

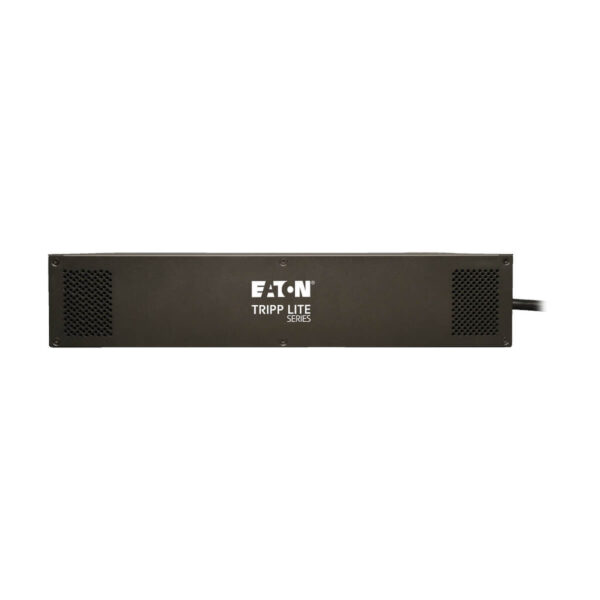

Tripp Lite series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (16 C13 & 2 C19), L6-30P, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

Name: Tripp Lite series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (16 C13 & 2 C19), L6-30P, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA
Brand: Tripp Lite
SKU: PDUMH30HV
Price: 605.22 CAD
Availability: InStock

$605.22

Brand: Tripp Lite

Part Number (MPN): PDUMH30HV

UPC / GTIN: 037332159021

Datasheet: PDF

Tripp Lite series 5.5kW Single-Phase Local Metered PDU, 208/230V Outlets (16 C13 & 2 C19), L6-30P, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

Toronto Stock: 3 available

Manufacturer Warehouse: 61 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Local metered single phase 24A 208/230V 2U horizontal rackmount PDU
Two built-in meters report output current in amps for each load bank
Attached 12 ft. (3.7 m) cord with NEMA L6-30P input plug
18 total outlets (16 C13, 2 C19); Compatible with Eaton Tripp Lite power cords
Reversible housing, 2U 208/230V rackmount local metered PDU
TAA Compliant

Features

30A single phase 208/230V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency derated to 24A continuous)
Set of two lighted meters report PDU output current in amps for each 9 outlet load bank

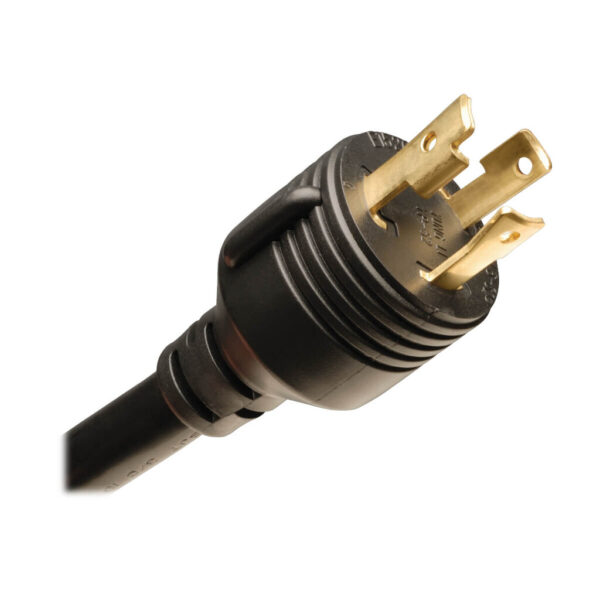

Attached NEMA L6-30P 30A 208/230V input plug and 12-ft. (3.66 m) cord
2U horizontal rackmount format installs in two rack spaces
18 output receptacles (16 C13, 2 C19)
Outlets are arranged in two 9 outlet load banks, each with separate 20A breaker and current metering
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Cord retention brackets keep vital equipment plugs connected
Grounding lug
Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases

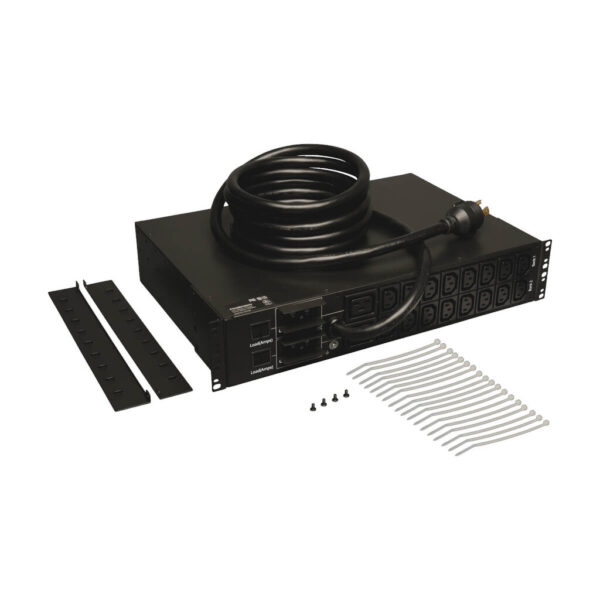

Package Includes

2U rack PDU
Mounting brackets
Plug retention plates
User manual

Weight	15.8 lbs
Dimensions	19.8 × 16.7 × 7.8 in
UPC Code	037332159021
Cord Length	12.01
Max Input Amps	24
Rack Depth	16
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	208; 230
Recommended Electrical Service	Single-phase 30A 208/230V service
Maximum Input Amps Details	Agency de-rated to 24A continuous
PDU Plug Type	NEMA L6-30P
Input Cord Length (m)	3.66
Output Capacity Details	5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords
Output Receptacles	(16) C13; (2) C19
Output Nominal Voltage	208/230V
Overload Protection	Two 20A breakers protect 9 outlets each

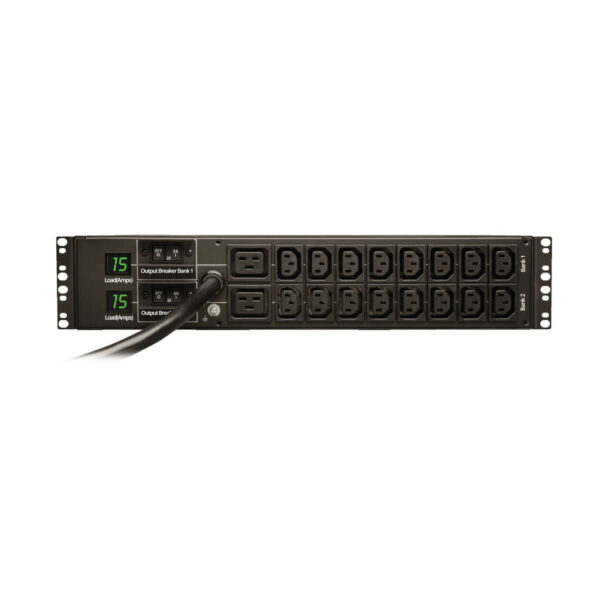

Front Panel LCD Display	Set of 2 digital meters continuously report output current for breakered load banks 1 & 2 (Bank 1: upper row of 9 outlets / Bank 2: lower row of 9 outlets)
Material of Construction	Metal
Rack Height	2U
Form Factors Supported	2U rackmount; mounting accessories included
Minimum Required Rack Depth (cm)	40.64
PDU Form Factor	Horizontal (2U)
Shipping Dimensions (hwd / cm)	19.81 x 42.42 x 50.29
Shipping Weight (kg)	7.17
Unit Dimensions (hwd / cm)	8.8 x 44.4 x 31.8
Unit Weight (kg)	6.21
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Grounding	Grounding lug
Product Certifications	NOM (Mexico); UL 62368-1
Product Compliance	RoHS; FCC Part 15 Class A (USA); UKCA; Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)	2-year limited warranty
