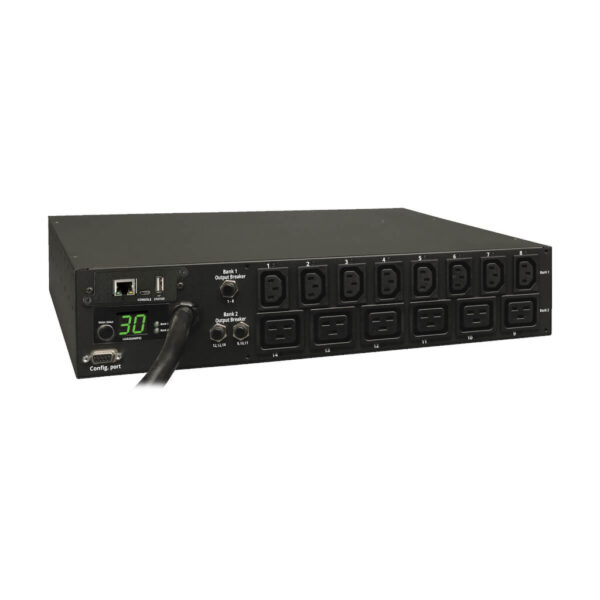

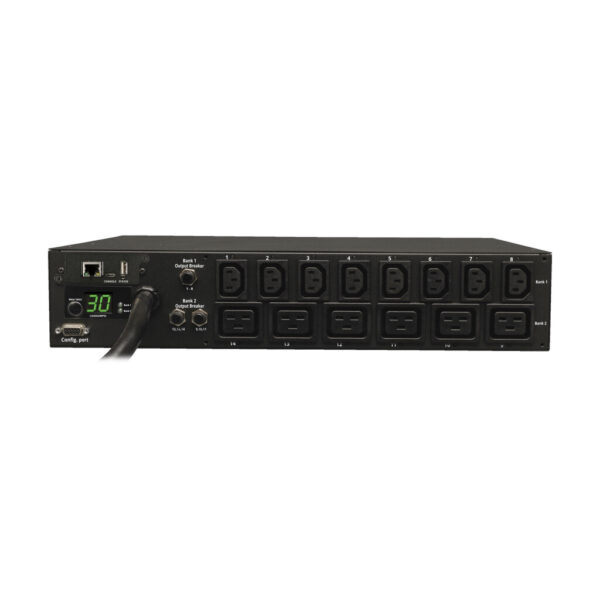

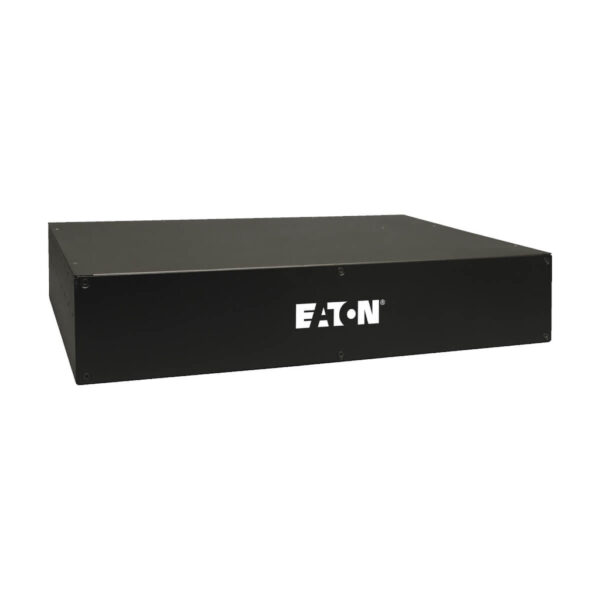

Eaton 5.5kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (8 C13 & 6 C19), L6-30P Input, 15 ft. (4.57 m) Cord, 2U Rack-Mount, TAA

Eaton 5.5kW Single-Phase Switched PDU – LX Interface, 208/230V Outlets (8 C13 & 6 C19), L6-30P Input, 15 ft. (4.57 m) Cord, 2U Rack-Mount, TAA

Name: Eaton 5.5kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (8 C13 & 6 C19), L6-30P Input, 15 ft. (4.57 m) Cord, 2U Rack-Mount, TAA
Brand: Tripp Lite
SKU: PDUMH30HV19NET
Price: 1297.75 CAD
Availability: InStock

$1,297.75

Brand: Tripp Lite

Part Number (MPN): PDUMH30HV19NET

UPC / GTIN: 037332153753

Datasheet: PDF

Eaton 5.5kW Single-Phase Switched PDU – LX Interface, 208/230V Outlets (8 C13 & 6 C19), L6-30P Input, 15 ft. (4.57 m) Cord, 2U Rack-Mount, TAA

Manufacturer Warehouse: 143 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

5.5kW 208/230V Switched 24A PDU, 2U rackmount, Reversible housing
Pre-installed WEBCARDLX with latest version of PADM20 for IP-based Auto Probe feature
Reports voltage, frequency and load level; Front-panel digital current meter
14 Switched outlets (8 C13, 6 C19) and 15ft./4.5m NEMA L6-30P input cord
Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Features

30A 208/230V Switched Power Distribution Unit / rack PDU (rPDU) with built-in web/network interface (Agency derated to 24A continuous)
Attached L6-30P 208/230V single phase input, 15 ft. / 4.6m input cord
2U horizontal rackmount form factor
14 switched outlets (8 C13, 6 C19)
2U horizontal rackmount form factor
Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
Network interface provides PDU control and data regarding input voltage and total output load level in amps
Digital display continuously reports total output load level in amps
Supports user-specified alarm notification thresholds
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
IP-based Auto Probe detects lost connectivity and restores service autonomously
DHCP/Manual configuration support
10/100 Mbps auto-sensing
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

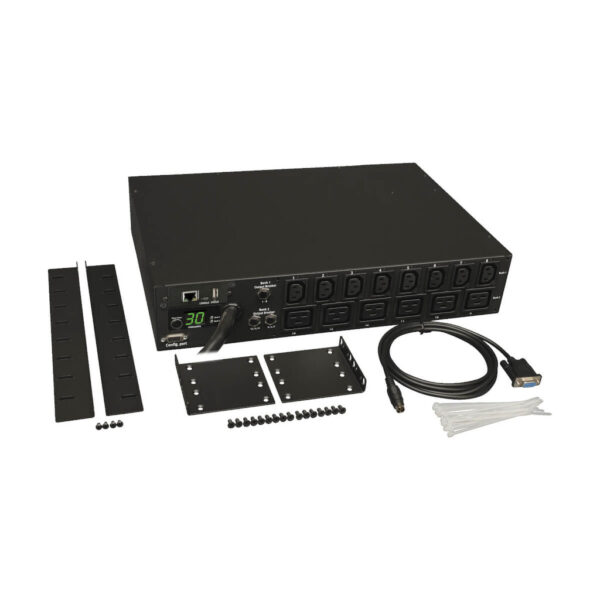

Package Includes

PDUMH30HV19NET with attached L6-30P input power cord
Installed WEBCARDLX network interface
Installable 2U mounting brackets
Configuration cable
User manual

Weight	17.8 lbs
Dimensions	20 × 16.9 × 7.8 in
UPC Code	037332153753
Cord Length	14.99
Max Input Amps	24
Rack Depth	16
Brand	Tripp Lite
PDU Type	Switched
Input Phase	Single-Phase
PDU Input Voltage	208; 230
Recommended Electrical Service	Single-phase 30A 208/230V service
Maximum Input Amps Details	Agency de-rated to 24A continuous
PDU Plug Type	NEMA L6-30P
Input Cord Length (m)	4.57
Output Capacity Details	5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords
Output Receptacles	(8) C13; (6) C19
Output Nominal Voltage	208/230V
Overload Protection	Three 20A circuit breakers; Breaker 1 (Bank 1 C13 outlets #1-8), Breaker 2 (Bank 2 C19 outlets #9-11), Breaker 3 (Bank 2 C19 outlets #12-14)
Customized Load Management Receptacles	Each outlet is individually controllable via remote interface
Front Panel LCD Display	2 digit meter and pushbutton display toggle switch reports output current in amps in 3 loading segments, Bank 1 (C13 outlets #1-8), Bank 2 (C19 outlets #9-14) and Banks 1&2 combined (Outlets #1-14)
Switches	Pushbutton near the two digit current meter toggles reporting of output amps on Bank 1, Bank 2 and Total PDU output (Banks 1 & 2 combined)
LED Indicators	14 power availability LEDs confirm power off/on status for each built-in outlet; Two additional LEDs identify which bank the visual current meter is reporting (Bank 1, Bank 2 or Banks 1&2 combined)
Material of Construction	Metal
Rack Height	2U
Form Factors Supported	2U rackmount
Minimum Required Rack Depth (cm)	40.64
PDU Form Factor	Horizontal (2U)
Shipping Dimensions (hwd / cm)	19.81 x 42.93 x 50.80
Shipping Weight (kg)	8.07
Unit Dimensions (hwd / cm)	8.9 x 44.5 x 31.75
Unit Weight (kg)	6.26
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
PowerAlert Software	LX Platform Interface: PowerAlert Device Manager
Communications Cable	Micro-USB- to-USB A configuration/console Access cable
Network Monitoring Port	RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet)
Grounding	Grounding lug
High Availability PDU Features	Auto Probe Monitoring and Reboot (included); Auto Load Shedding
Product Certifications	CSA (Canada); NOM (Mexico); UL 60950-1
Product Compliance	RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)	2-year limited warranty
WEXT1G	Extended Warranty and Technical Support for Select Products – KVM, PDUs, Inverters
WEXT2G	Extended Warranty and Technical Support for Select Products – KVM Switches, PDUs, Power Inverters
WEXT3G	Extended Warranty and Technical Support for Select Products – KVM, PDUs, Power Inverters
