Tripp Lite series 7.7kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V IEC309 32A Blue Inputs, 16-C13 2-C19 Outlets, 2U, TAA

$1,706.31

Brand: Tripp Lite
Part Number (MPN): PDUMH32HVATNET
UPC / GTIN: 037332186874
Datasheet: PDF

Tripp Lite series 7.7kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V IEC309 32A Blue Inputs, 16-C13 2-C19 Outlets, 2U, TAA

Manufacturer Warehouse: 64 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

  • Single-phase IEC309 200-240V 32A Blue (2P+E) input
  • 16 C13 and 2 C19 230V switched outlets in 2 breakered load banks
  • Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
  • Automatic transfer switching within 1–5 ms
  • Ethernet network interface for remote access
  • Digital LED display for real-time status and current monitoring

Overview

The PDUMH32HVATNET 7.7kW Single-Phase 200-240V Switched Automatic Transfer Switch / ATS PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Features

Primary and Secondary Inputs for Power Redundancy

  • The PDUMH32HVATNET rack PDU (rPDU) provides remote power monitoring and enables redundant power for network devices single-corded and other non-redundant power supply configurations

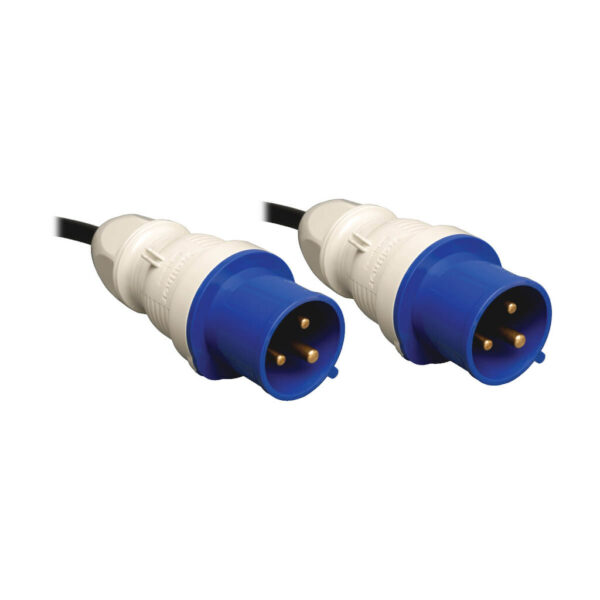

  • Dual 3m input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase power sources

Automatic Transfer Switching

  • Dynamic solid-state (TRIAC) automatic transfer switching
  • Switches to secondary power source if primary source fails or becomes unstable
  • 1–5 ms transfer time ensures uninterrupted operation of connected equipment
  • Built-in processor monitors both sources and prevents switching if secondary source is unavailable or of lower quality than primary source

Multifunction Digital LED Display

  • Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor

Advanced LX Platform Interface

  • LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
  • Real-time load/current data with billing-grade accuracy (+/- 1 percent)
  • Automated alerts help prevent accidental overloads, power loss and downtime
  • Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

Broad Communications Compatibility

  • Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP

Breaker Protected Output Load Banks

  • Protect each of 2 single-phase output banks
  • Front-panel LED indicates when breaker has tripped

Cord Retention Sleeves

  • Set of Plug-lock output power cable retention sleeves prevent accidental disconnection of connected devices

Mounts Horizontally in 2U of Rack Space

  • Compatible with EIA-standard 19 in. 4-post racks and rack enclosures

TAA-Compliant

  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

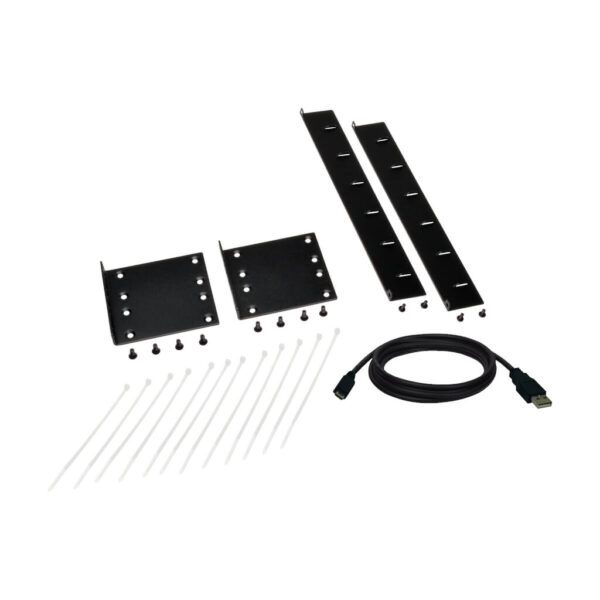

Package Includes

  • PDUMH32HVATNET 7.7kW Single-Phase 200-240V ATS / Switched PDU
  • Rack-mounting brackets
  • Plug-lock cable retention sleeves
  • USB configuration cable
  • Owner’s manual
Weight 20.1 lbs
Dimensions 19.6 × 18 × 7.8 in
UPC Code

037332186874
Cord Length

10.01
Max Input Amps

32
Rack Depth

16
Brand

PDU Type

Auto-Transfer Switch; Switched
Input Phase

Single-Phase
PDU Input Voltage

200; 208; 220; 230; 240
Recommended Electrical Service

Two single-phase 32A 200-240V circuits
PDU Plug Type

(2) IEC-60309 32A BLUE (2P+E)
Input Cord Details

Set of two inputs connect to separate PRIMARY and SECONDARY power sources; accepts inputs at all phase angles
Input Cord Length (m)

3.05
Output Capacity Details

7.7kW (240V), 7.4kW (230V), 7.0kW (220V), 6.7kW (208V), 6.4kW (200V); 32A maximum total output; 16A maximum per breakered load bank; 16A maximum per C19 outlet; 10A maximum per C13 outlet
Frequency Compatibility

50 / 60 Hz
Output Receptacle Details

Compatible with Eaton Tripp Lite Power Cords
Output Receptacles

(16) C13; (2) C19
Output Nominal Voltage

200-240V
Overload Protection

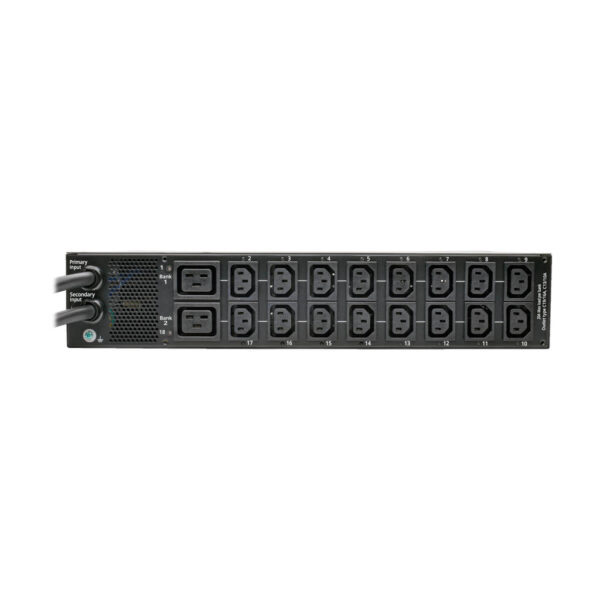

Includes two branch-rated 20A output circuit breakers; Breaker 1 controls the upper row of 9 outlets (8 C13, 1 C19); Breaker 2 controls the lower row of outlets (8 C13, 1 C19)
Customized Load Management Receptacles

Each outlet is individually controllable via remote interface

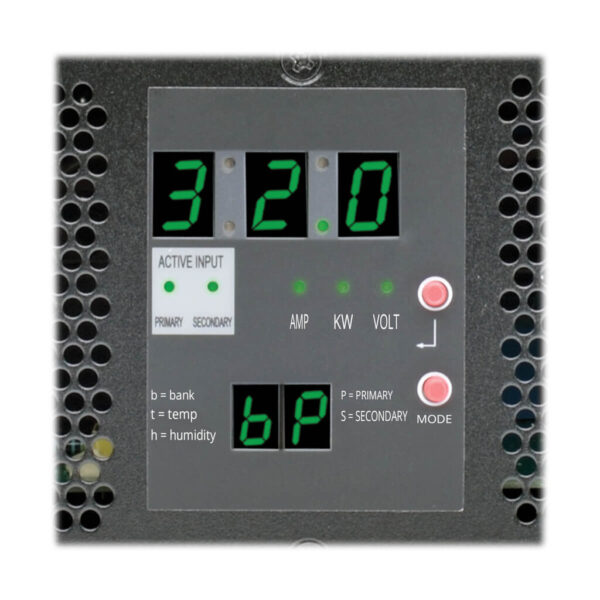

Front Panel LCD Display

Digital display reports output amps in 3 separately metered load segments (BANK 1: Outlets #1-9; BANK 2: Outlets #10-18; BANK 3: Total Output), whole-PDU output kW load level and input voltage on primary and secondary input lines
Switches

ENTER and MODE switches toggle the digital display to show output amps (Bank 1, Bank 2 and Total), total kW output and input voltage (primary, secondary)
LED Indicators

Front panel LEDs confirm amp / kilowatt / voltage reporting information
Current Measurement Accuracy (Amps)

+/-1%
Voltage Measurement Accuracy (Volts)

+/-1%
Power Measurement Accuracy (Watts)

+/-1%
Material of Construction

Metal
Rack Height

2U
Form Factors Supported

2U rackmount
Minimum Required Rack Depth (cm)

40.64
PDU Form Factor

Horizontal (2U)
Shipping Dimensions (hwd / cm)

19.81 x 45.72 x 49.78
Shipping Weight (kg)

9.12
Unit Dimensions (hwd / cm)

8,8 x 44,4 x 31,7
Unit Weight (kg)

6.21
Operating Temperature Range

32° to 104°F (0° to 40°C)
Storage Temperature Range

-22° to 122°F (-30° to 50°C)
Relative Humidity

5% to 95% non-condensing
Operating Elevation

0-10000 ft. (0-3000 m)
PowerAlert Software

LX Platform Interface: PowerAlert Device Manager
Communications Cable

Micro-USB- to-USB A configuration/console Access cable
Network Monitoring Port

RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
Network Compatibility

10 Mbps; 100 Mbps (Fast Ethernet)
High Availability PDU Features

Auto Probe Monitoring and Reboot (included); Auto-Transfer Switching; Auto Load Shedding
Product Certifications

CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico)
Product Compliance

RoHS; CE (Europe); FCC Part 15 Class A (USA); UKCA; Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)

2-year limited warranty
