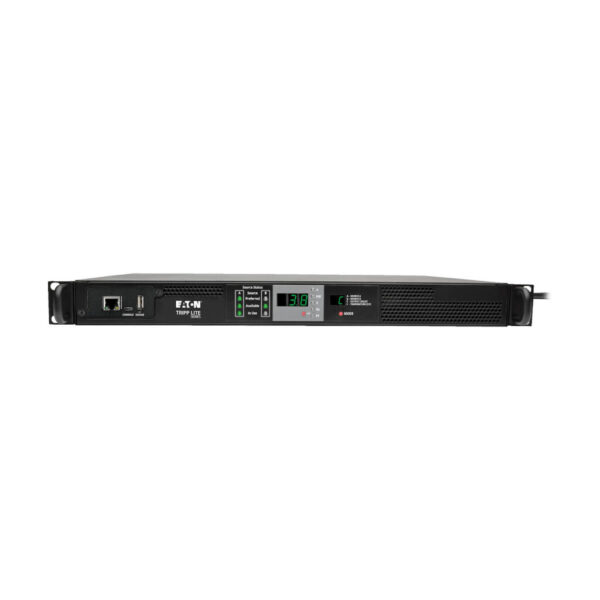

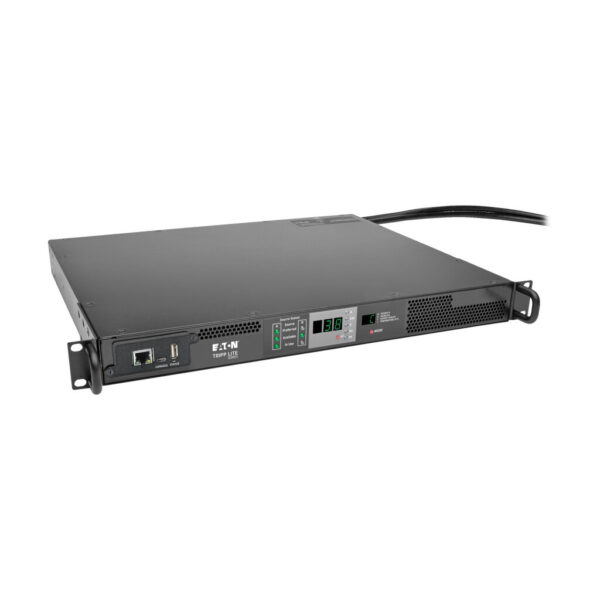

Tripp Lite series 3.8kW Single-Phase Monitored Automatic Transfer Switch PDU, 2 200-240V 16A L6-20P Inputs, 1 L6-20R Outlet, 1U, TAA

Quick Specs

• Two single-phase L6-20P inputs with 10-ft. (3.05 m) cords
• L6-20R outlet for connecting single device or 0U vertical PDU
• Automatic transfer switching within 1-5 ms
• Built-in LX Platform Interface for remote access
• Digital display for real-time status monitoring

Overview

The PDUMNH20HVAT 3.3/3.8kW Single-Phase 200-240V Monitored Automatic Transfer Switch / ATS PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-20R outlet—perfect for connecting a single device or a 0U 208/240V PDU with an L6-20P plug.Dual 10-ft. (3.05 m) input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities, including temperature and humidity conditions. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. DHCP/Manual configuration lets you assign network settings to the card automatically, reducing the need for manual configuration. Automated alerts help prevent accidental overloads, power loss and downtime.

Features

Primary and Secondary Inputs for Power Redundancy

• Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations

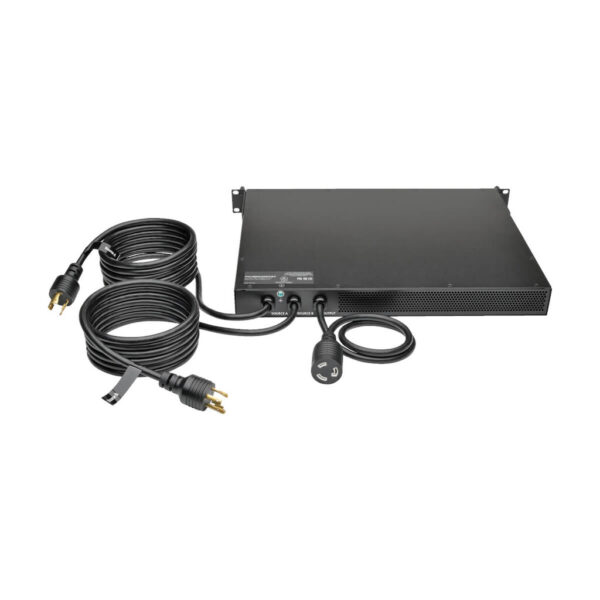

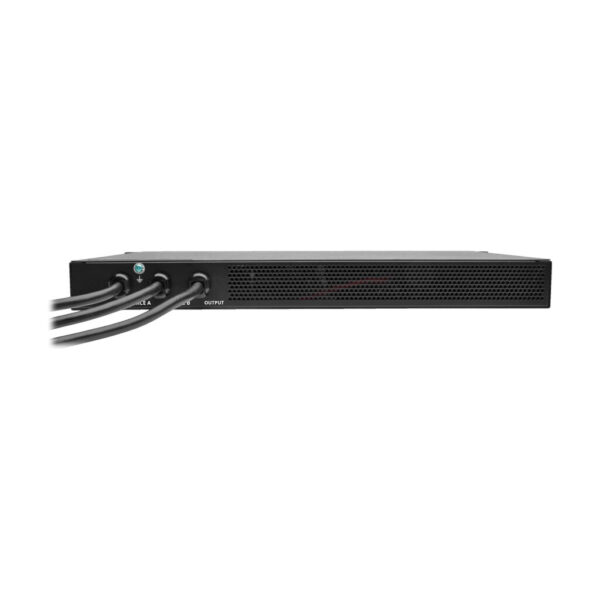

• Dual 10-ft. (3.05 m) input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources
• Fault-tolerant, hot-swappable UPS protection when used with single UPS; fully redundant UPS protection when each cord is connected to separate UPS systems

Built-In L6-20R Outlet

• Connects a single device or indirectly powers equipment through a 0U 200-240V rack PDU (rPDU) with L6-20P input (sold separately)

Automatic Transfer Switching (ATS)

• Dynamic solid-state (TRIAC) automatic transfer switching
• Switches to secondary power source if primary source fails or becomes unstable
• 1-5 ms transfer time ensures uninterrupted operation of connected equipment
• Built-in processor prevents switching if secondary source is unavailable or of lower quality than primary source

Multifunction Digital Display

• Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor

Advanced Network Monitoring

• LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
• Real-time load/current data with billing-grade accuracy (+/- 1 percent)
• Automated alerts help prevent overloads, power loss and downtime
• Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

Broad Communications Compatibility

• 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks

Mounts Horizontally in 1U of Rack Space

• Compatible with EIA-standard 19 in. 4-post racks and rack enclosures
• Optional PDU4PKIT rail kit (sold separately) adds rear mounting support

Package Includes

• PDUMNH20HVAT 3.3/3.8kW Single-Phase 200-240V ATS/Monitored PDU
• Mounting brackets
• Owner’s manual
