Tripp Lite 5.5kW 1-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (12-C13 and 4-C19), L6-30P, 12 ft. Cord, 2U Rack, TAA - PDUMNH30HV

Tripp Lite 5.5kW 1-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (12-C13 and 4-C19), L6-30P, 12 ft. Cord, 2U Rack, TAA – PDUMNH30HV

Name: Tripp Lite 5.5kW 1-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (12-C13 and 4-C19), L6-30P, 12 ft. Cord, 2U Rack, TAA - PDUMNH30HV
Brand: Tripp Lite
SKU: PDUMNH30HV
Price: 1080.75 CAD
Availability: InStock

$1,080.75

Brand: Tripp Lite

Part Number (MPN): PDUMNH30HV

UPC / GTIN: 037332159205

Datasheet: PDF

Eaton 5.5kW Single-Phase Monitored PDU with LX Platform Interface, 208/230V Outlets (12-C13 and 4-C19), L6-30P, 12 ft. (3.66 m) Cord, 2U Rack-Mount, TAA

Toronto Stock: 4 available

Manufacturer Warehouse: 72 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Monitored 24A 208/230V PDU, 2U horizontal rackmount
Pre-installed WEBCARDLX with latest version of PADM20 for enhanced remote management
Visual current meter, Reversible housing
L6-30P input with 12ft / 3.6m line cord
16 outlets (12 C13, 4 C19) with included cord retention brackets; Compatible with Eaton Tripp Lite power cords
Temperature, humidity and contact-closure monitoring options
TAA Compliant

Features

30A single phase 208/230V Monitored Power Distribution Unit / rack PDU (rPDU) (agency derated to 24A continuous)
Attached NEMA L6-30P input with 10ft / 3m line cord
2U horizontal rack-mount format supports installation in 2 or 4 post equipment racks
16 outlets (12 C13, 4 C19)
Lighted display with select button reports output power consumption in amps in 3 segments (bank 1, bank 2 and total)
Pre-installed WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities
PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations
Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
DHCP/Manual configuration support
10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks
Real-time clock backup maintains the time of day and date even if the PDU is unpowered
Tiered access privileges allow an administrator and a guest to login via web browser for monitoring
Alert notifications via email or SNMP traps offer immediate event notification
Firmware upgrade ability supports future product enhancements.
Supports HTTP, HTTPS, PowerAlert, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
Fully compatible with free PowerAlert Network Management System software
Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
Mounting ears are reversible for front or rear facing rackmount installation
Included cord retention brackets keep vital network equipment plugged in and continuously powered
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

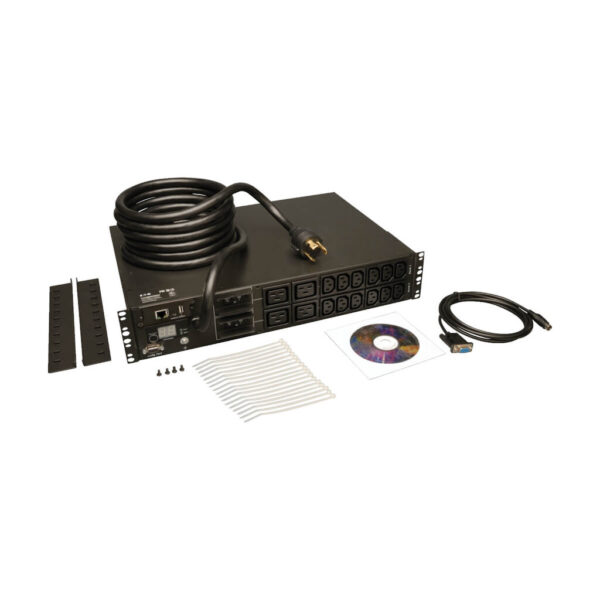

Package Includes

Monitored PDU
Built-in LX Platform interface
Rack installation brackets
Cable retention brackets
Configuration cable
Owner’s manual

Weight	16.4 lbs
Dimensions	19.9 × 16.8 × 7.8 in
UPC Code	037332159205
Cord Length	12.01
Max Input Amps	24
Rack Depth	16
Brand	Tripp Lite
PDU Type	Monitored
Input Phase	Single-Phase
PDU Input Voltage	208; 230
Recommended Electrical Service	Single-phase 30A 208/230V service
Maximum Input Amps Details	Agency de-rated to 24A continuous

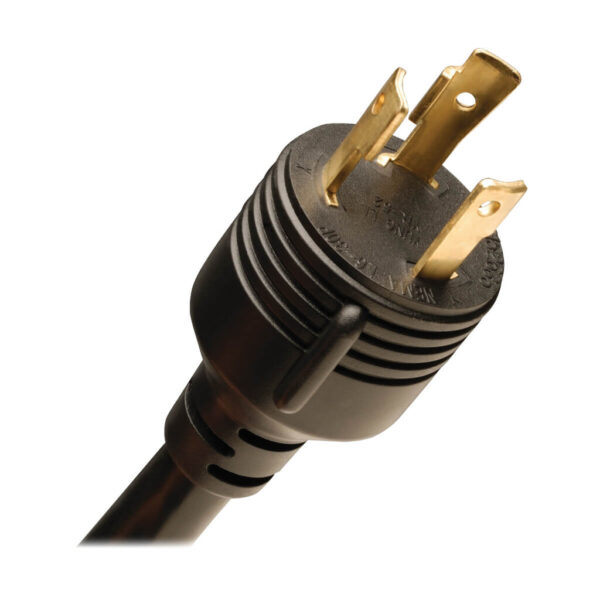

PDU Plug Type	NEMA L6-30P
Input Cord Length (m)	3.66
Output Capacity Details	5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords
Output Receptacles	(12) C13; (4) C19
Output Nominal Voltage	208/230V
Overload Protection	Two 20A breakers protect 8 outlets each

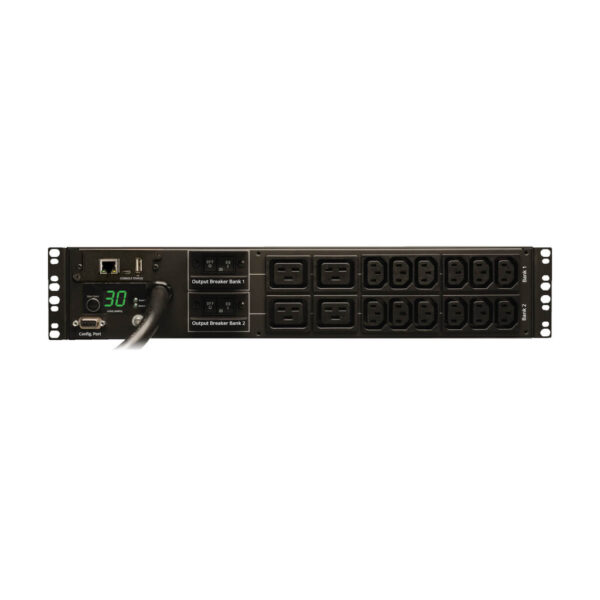

Front Panel LCD Display	Digital current meter reports PDU output current in amps for 3 loading segments (Bank 1, Bank 2 and Banks 1&2 combined)
Switches	Pressing the display toggle switch advances the local display of power consumption for the 3 reported segments: Bank 1, Bank 2 and Banks 1+2 combined
LED Indicators	Front panel LEDs indicates which loading segment the digital LCD current display is reporting; Bank 1 LED indicates the meter is reporting load level for outlets 1-8; Bank 2 LED indicates the meter is reporting load level for outlets 9-16; Both LEDs lighted indicates the meter is reporting load level for all outlets combined
Material of Construction	Metal
Rack Height	2U
Form Factors Supported	2U rackmount
Minimum Required Rack Depth (cm)	40.64
PDU Form Factor	Horizontal (2U)
Shipping Dimensions (hwd / cm)	19.81 x 42.67 x 50.55
Shipping Weight (kg)	7.44
Unit Dimensions (hwd / cm)	8.9 x 44.5 x 31.75
Unit Weight (kg)	6.21
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
PowerAlert Software	LX Platform Interface: PowerAlert Device Manager
Communications Cable	Micro-USB- to-USB A configuration/console Access cable
Network Monitoring Port	RJ45 Network port, Micro-USB Configuration port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility	Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet)
High Availability PDU Features	Remote Network Notifications
Product Certifications	CSA (Canada); NOM (Mexico); UL Listed
Product Compliance	RoHS; FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide)	2-year limited warranty
WEXT1F	Extended Warranty and Technical Support for Select Products – Isolation Transformers, KVM, PDU, Inverters
WEXT2F	Extended Warranty and Technical Support for Select Products – Isolation Transformers, KVM Switches, PDUs, Power Inverters
WEXT3F	Extended Warranty and Technical Support for Select Products – Isolation Transformers, KVM Switches, PDUs, Power Inverters
