Tripp Lite series 1.5kW Single-Phase Local Metered PDU, 100-127V Outlets (14 5-15R), 5-15P, 15 ft. (4.57 m) Cord, 0U Vertical, 36 in.

Name: Tripp Lite series 1.5kW Single-Phase Local Metered PDU, 100-127V Outlets (14 5-15R), 5-15P, 15 ft. (4.57 m) Cord, 0U Vertical, 36 in.
Brand: Tripp Lite
SKU: PDUMV15-36
Price: 220.84 CAD
Availability: InStock

$220.84

Brand: Tripp Lite

Part Number (MPN): PDUMV15-36

UPC / GTIN: 037332182869

Datasheet: PDF

Tripp Lite series 1.5kW Single-Phase Local Metered PDU, 100-127V Outlets (14 5-15R), 5-15P, 15 ft. (4.57 m) Cord, 0U Vertical, 36 in.

Toronto Stock: 20 available

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

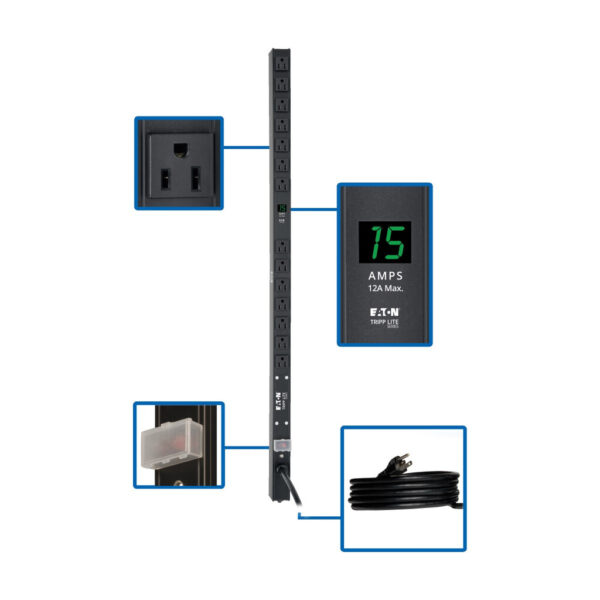

Local Metered single phase 12A 100-127V 0U 36in / 91cm vertical rackmount PDU
Two-digit current meter reports output current in amps
Attached 15-ft. (4.57 m) cord with NEMA 5-15P input plug
14 NEMA 5-15R outlets
Toolless button mount and bolt-down bracket installation hardware included

Features

12A single phase 100-127V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency de-rated to 12A continuous)

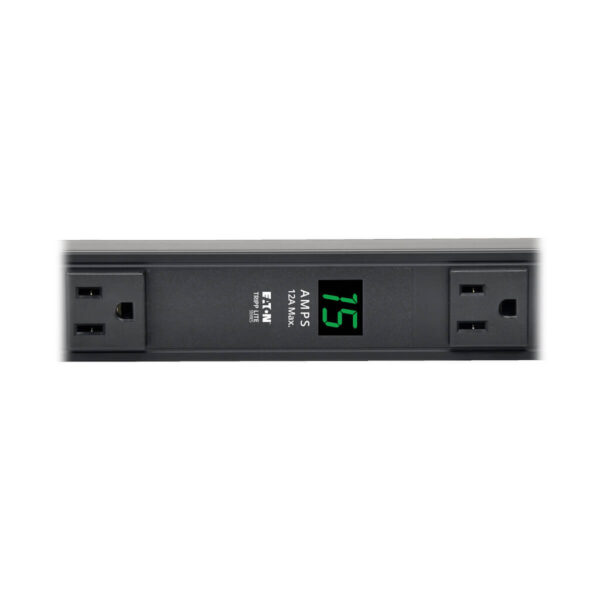

Two-digit lighted meter reports combined total output current in amps

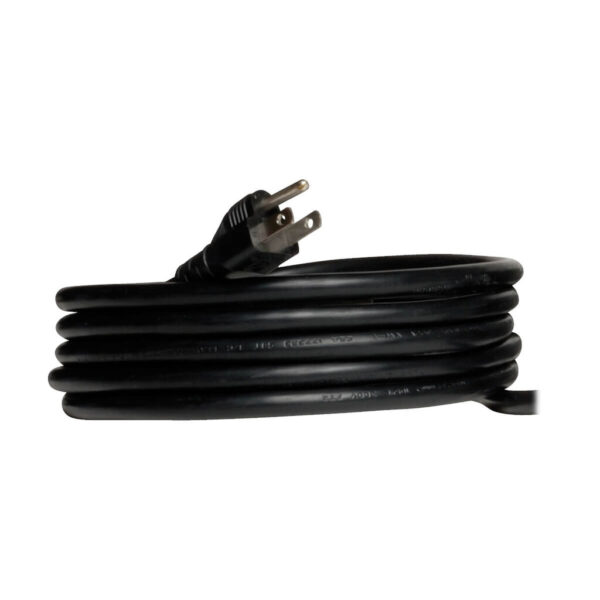

Attached NEMA 5-15P 15A 100-127V input plug with 15-ft. (4.57 m) line cord

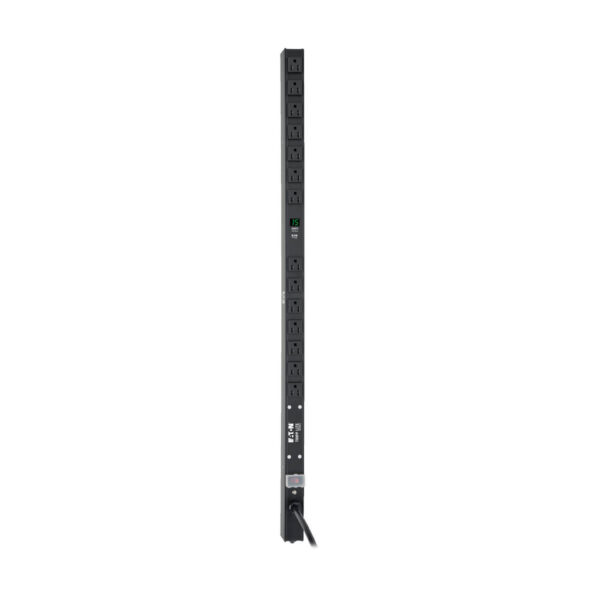

0U 36in / 91cm vertical rackmount format installs using no rack spaces

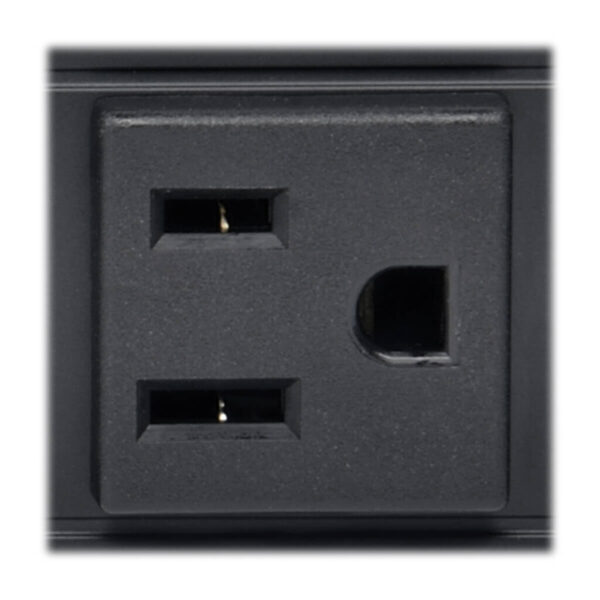

14 NEMA 5-15R outlets

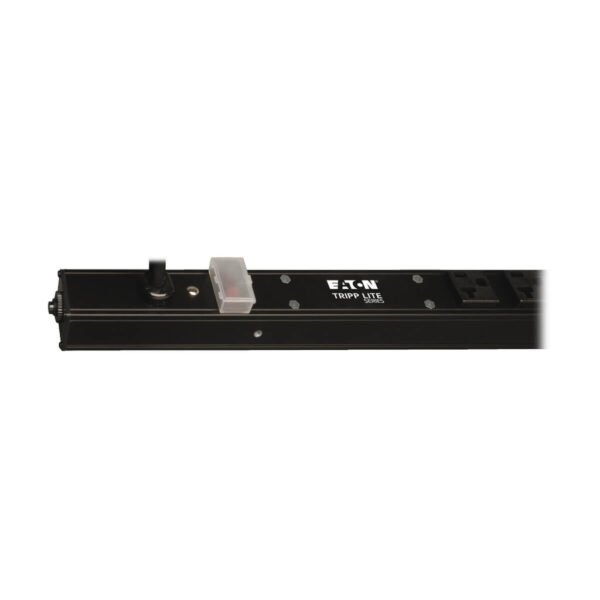

Includes 15A circuit breaker and lighted power switch inside a transparent protective cover

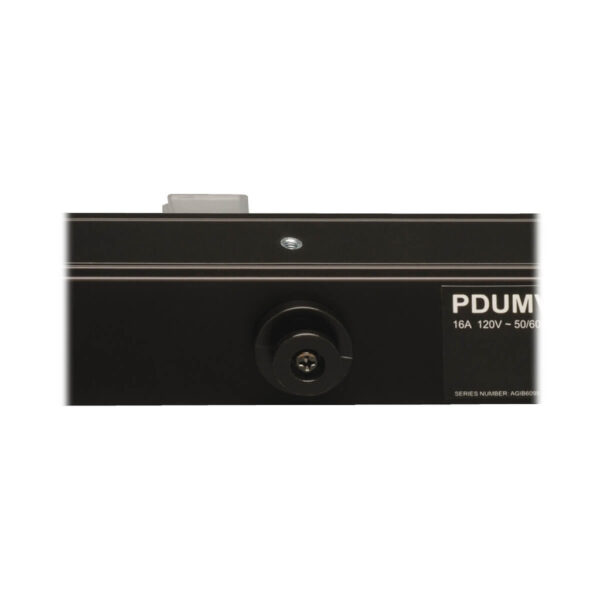

Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces

Package Includes

Local Metered Vertical PDU

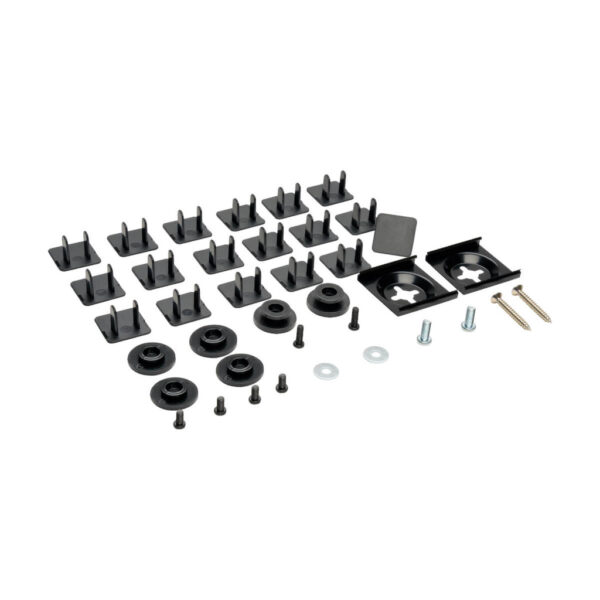

Mounting hardware and spare mounting buttons
Owner’s manual with warranty information

Weight	3.94 lbs
Dimensions	2.4 × 5.39 × 38.58 in
UPC Code	037332182869
Cord Length	14.99
Max Input Amps	12
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	100; 120; 125; 127
Recommended Electrical Service	Single-phase 15A 100-127V service
Maximum Input Amps Details	Agency de-rated to 12A continuous
PDU Plug Type	NEMA 5-15P
Input Cord Length (m)	4.57
Output Capacity Details	1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 12A total capacity; 12A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(14) 5-15R
Output Nominal Voltage	100-127V
Overload Protection	15A circuit breaker
Front Panel LCD Display	Digital meter reports PDU output current in amps
Switches	Lighted on/off switch with integrated safety cover
Material of Construction	Aluminum
Rack Height	0U

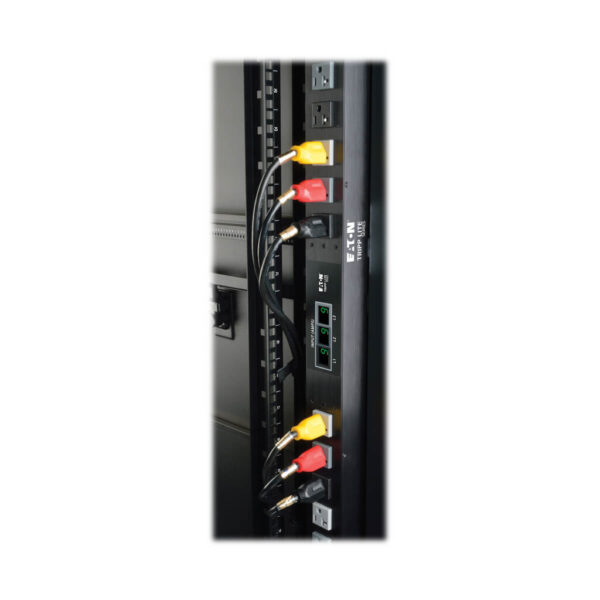

Form Factors Supported	Vertical (0U) mounting in rack enclosures, horziontal mount in raceways and a variety of other applications
PDU Form Factor	Vertical (0U)
Shipping Dimensions (hwd / cm)	5.61 x 98.88 x 14.12
Shipping Weight (kg)	1.72
Unit Dimensions (hwd / cm)	91.4 x 4.45 x 3.2
Unit Weight (kg)	1.45
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Product Certifications	RETIE (Colombia); CAN/CSA-C22.2 No. 60950-1 (Canada); NOM (Mexico); UL 60950-1
Product Compliance	RoHS; FCC Part 15 Class A (USA)
Product Warranty Period (Worldwide)	2-year limited warranty
