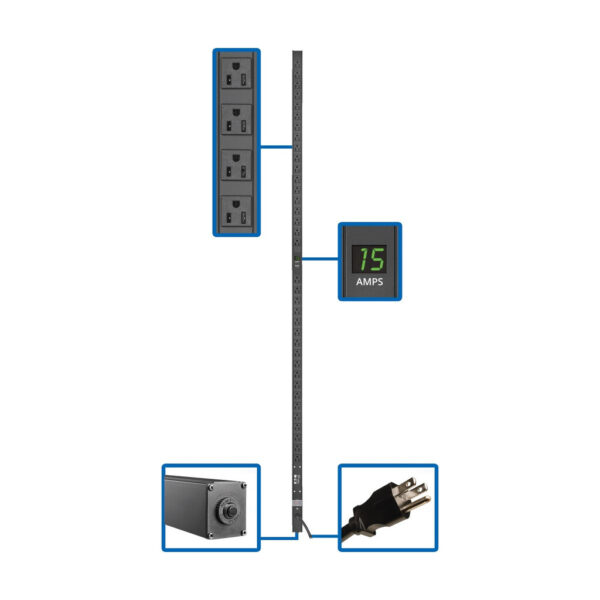

36 NEMA 5-15R 100-127V outlets distribute AC power to connected equipment

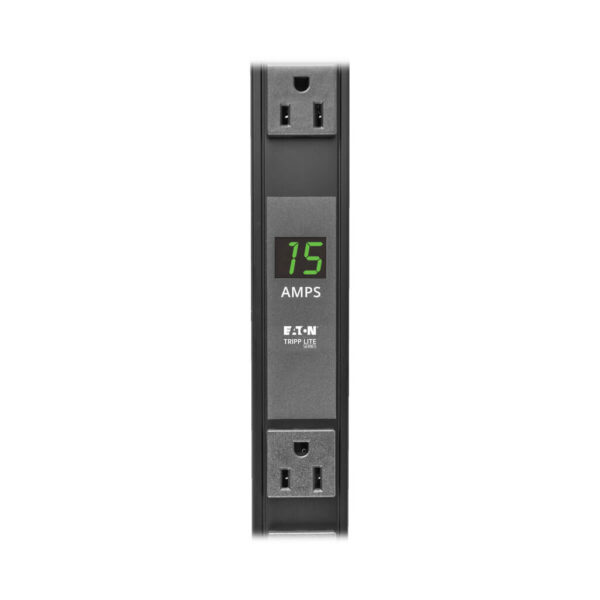

Digital ammeter for on-site real-time load monitoring helps prevent power overloads
Lighted power switch with protective cover helps prevent accidental shutdowns

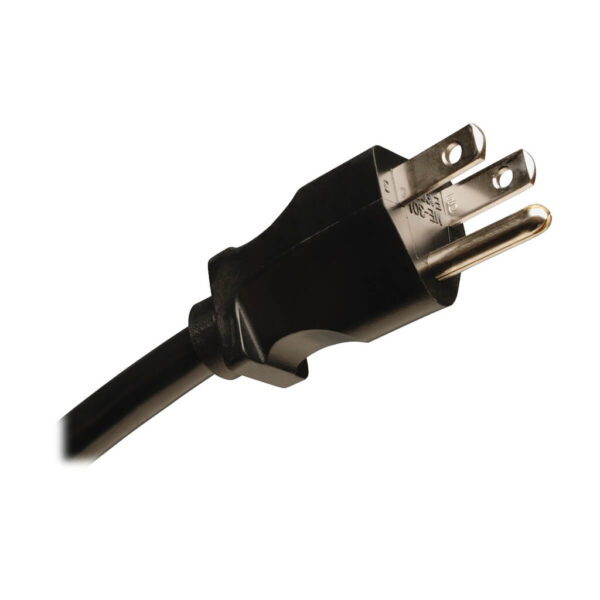

15 ft. cord with NEMA 5-15P single-phase input connects to AC power source

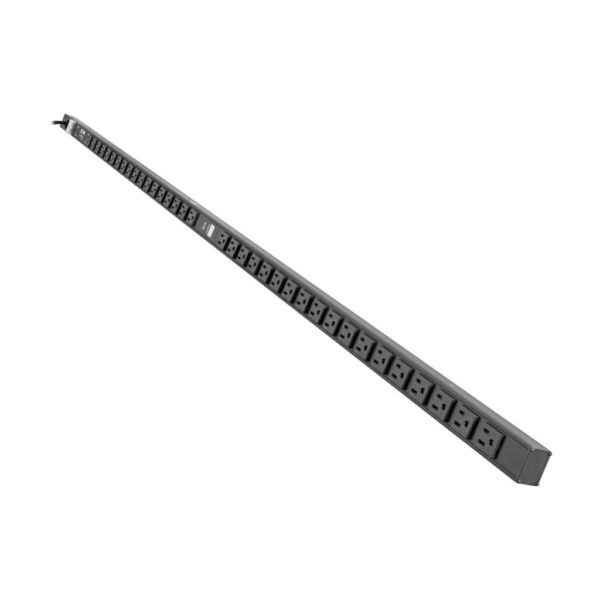

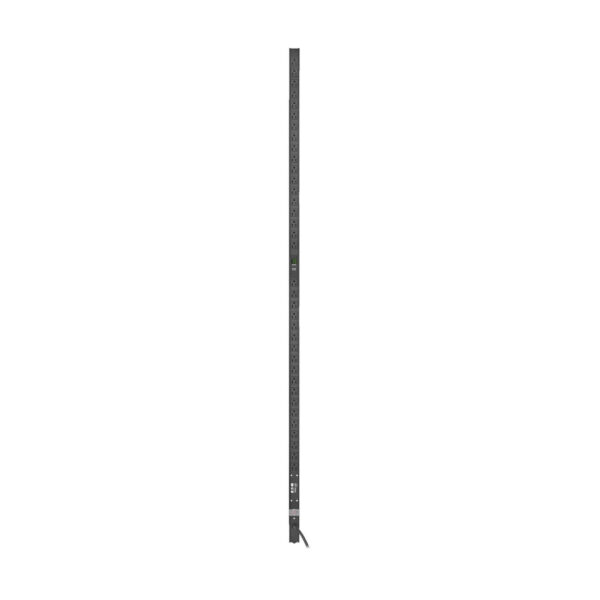

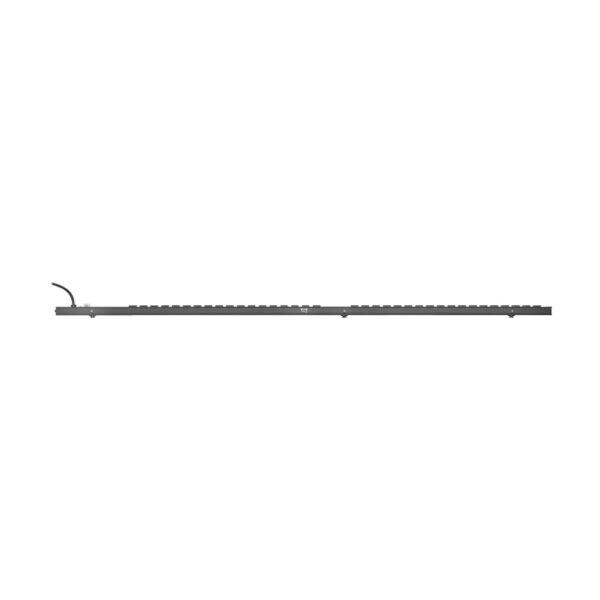

72 in. 0U PDU with included mounting hardware installs in rack or under counter
Features
Single-Phase 0U rack PDU (rPDU) Distributes and Monitors Network-Grade Power in Real Time This local metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMV15-72 features 36 NEMA 5-15R 100-127V outlets for connecting equipment. An included 15-foot (4.6 m) cord with NEMA 5-15P input plug connects to a distant AC power source, generator or protected UPS system to distribute power to connected loads.
Digital Load Meter Helps Prevent Potentially Expensive Overloads A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.

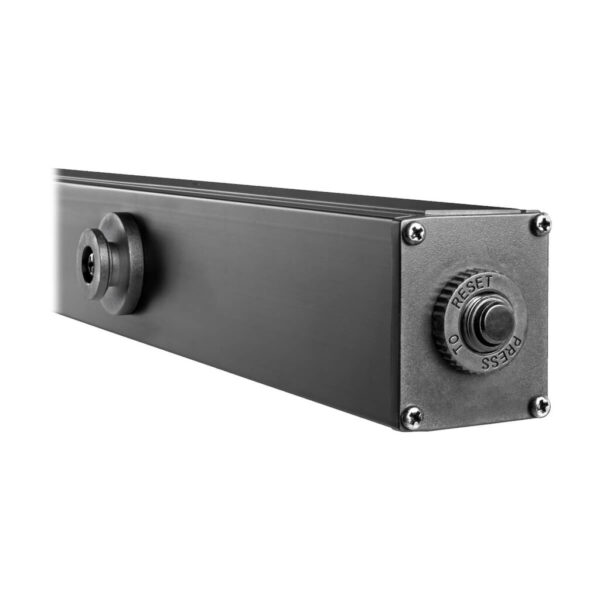

Up-to-Date Safety Features Protect Your Vital Equipment A lighted on/off switch is protected by an integrated transparent plastic cover to help prevent an accidental shutdown that could lead to costly downtime. A 15A circuit breaker protects connected components from dangerous overloads.

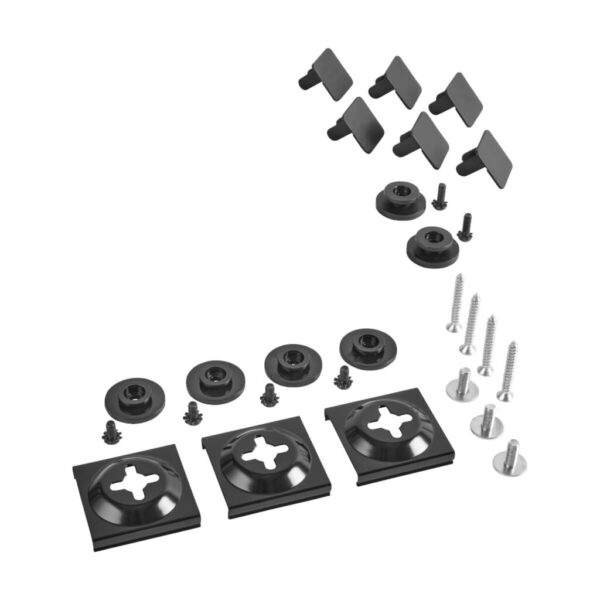

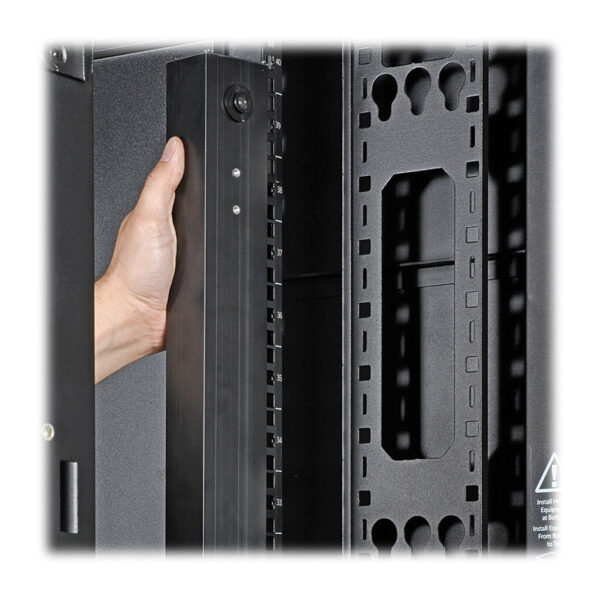

Versatile Installation Options Give You Plenty of Choices The 72-inch 0U all-metal housing mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting clips and hardware. You may also use the clips to secure the PDU to a wall, counter or other flat, secure surface. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Package Includes
PDUMV15-72 1.5kW Single-Phase Local Metered PDU
Plug retention brackets with installation hardware
1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 12A total capacity; 12A max per outlet
Frequency Compatibility
50 / 60 Hz
Output Receptacles
(36) 5-15R
Output Nominal Voltage
100-127V
Overload Protection
15A circuit breaker
Front Panel LCD Display
Digital meter reports PDU output current in amps
Switches
Lighted on/off switch with integrated transparent saftey cover
Material of Construction
Aluminum
Rack Height
0U
Form Factors Supported
Vertical
PDU Form Factor
Vertical (0U)
Shipping Weight (kg)
3.48
Unit Dimensions (hwd / cm)
184.1 x 4.2 x 3.81
Unit Weight (kg)
2.79
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m)
Product Certifications
RETIE (Colombia); NOM (Mexico); UL 60950-1
Product Compliance
RoHS; FCC Part 15 Class A (USA)
Product Warranty Period (Worldwide)
2-year limited warranty
