Tripp Lite series 1.4kW Single-Phase Local Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15 ft. (4.57 m) Cord, 0U Vertical, 48 in.

Name: Tripp Lite series 1.4kW Single-Phase Local Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15 ft. (4.57 m) Cord, 0U Vertical, 48 in.
Brand: Tripp Lite
SKU: PDUMV15
Price: 225.96 CAD
Availability: InStock

$225.96

Brand: Tripp Lite

Part Number (MPN): PDUMV15

UPC / GTIN: 037332132536

Datasheet: PDF

Tripp Lite series 1.4kW Single-Phase Local Metered PDU, 120V Outlets (16 5-15R), 5-15P, 15 ft. (4.57 m) Cord, 0U Vertical, 48 in.

Toronto Stock: 7 available

Manufacturer Warehouse: 352 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

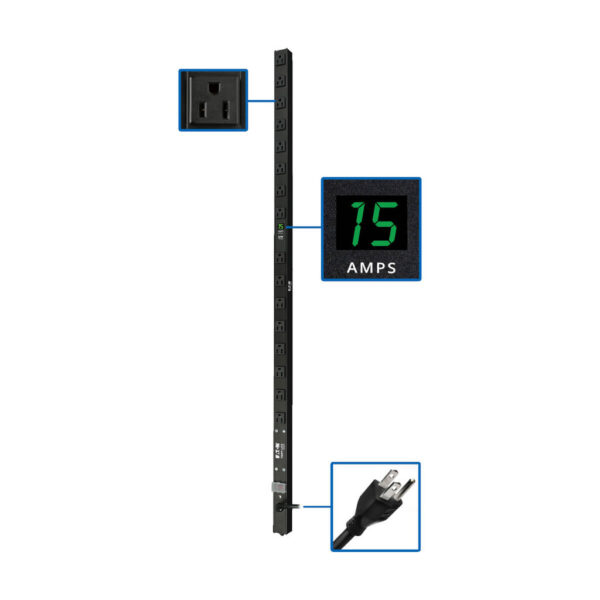

Local Metered single phase 12A 120V 0U 48in / 122cm vertical rackmount PDU
Two-digit current meter reports output current in amps
Attached 15-ft. (4.57 m) cord with NEMA 5-15P input plug
16 NEMA 5-15R outlets
Toolless button mount and bolt-down bracket installation hardware included

Features

15A single phase 120V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency de-rated to 12A continuous)

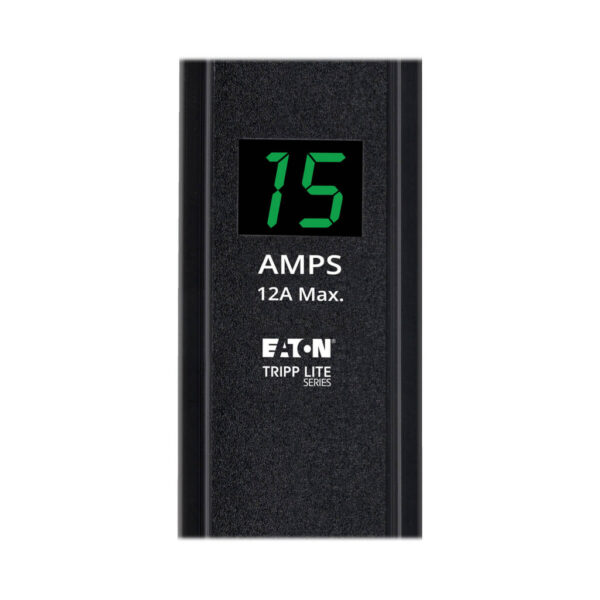

Two-digit lighted meter reports combined total output current in amps

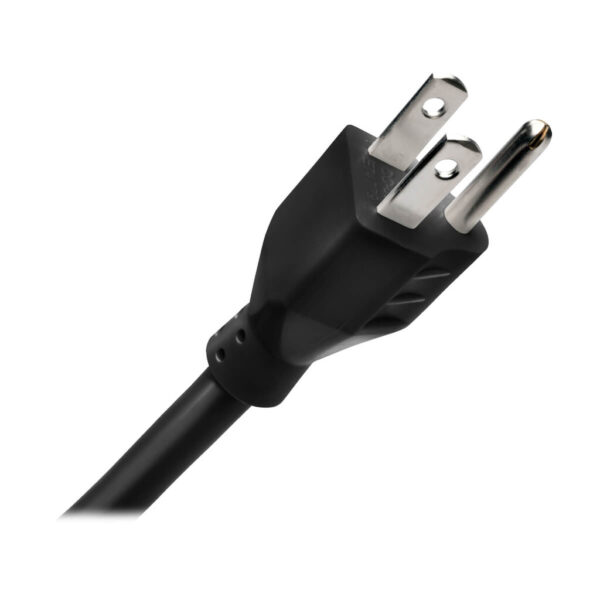

Attached NEMA 5-15P 15A 120V input plug with 15-ft. (4.57 m) line cord
0U 48in / 122cm vertical rackmount format installs using no rack spaces

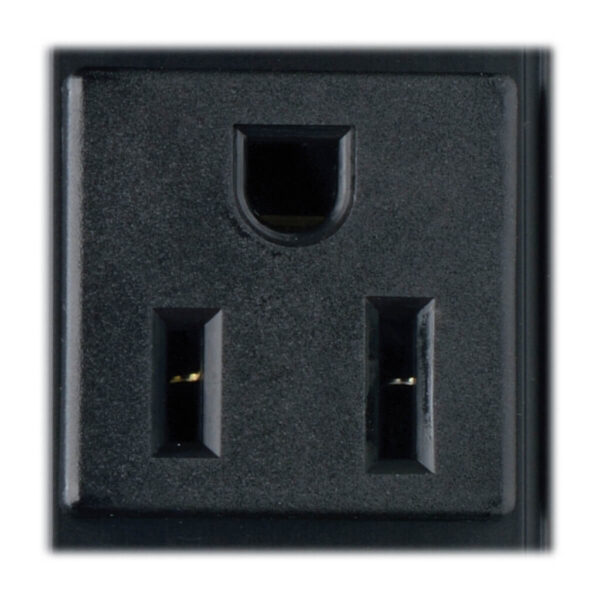

16 NEMA 5-15R outlets
Includes 15A circuit breaker and lighted power switch inside a transparent protective cover
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces

Package Includes

PDUMV15 Local Metered Vertical PDU

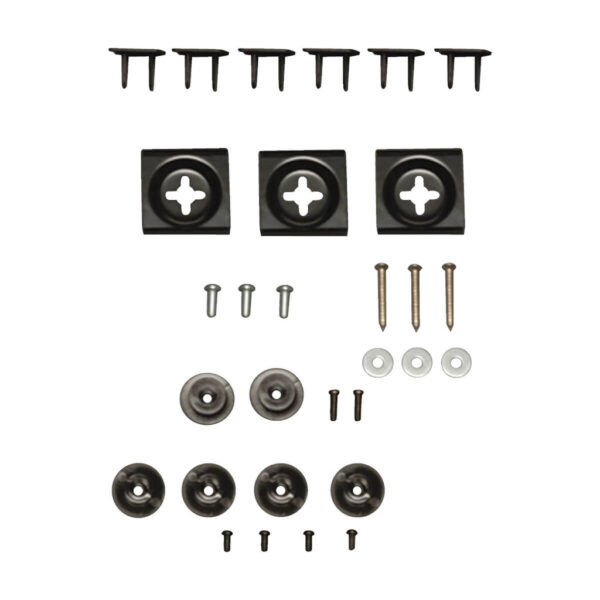

Mounting hardware and spare mounting buttons
Owner’s manual with warranty information

Weight	4.43 lbs
Dimensions	2.4 × 3.43 × 51.77 in
UPC Code	037332132536
Cord Length	14.99
Max Input Amps	12
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	120
Recommended Electrical Service	Single-phase 15A 120V service
Maximum Input Amps Details	Agency de-rated to 12A continuous
PDU Plug Type	NEMA 5-15P
Input Cord Length (m)	4.57
Output Capacity Details	1.44kW (120V) / 12A total capacity; 12A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(16) 5-15R
Output Nominal Voltage	120V
Overload Protection	15A circuit breaker
Front Panel LCD Display	Digital meter reports PDU output current in amps
Switches	Lighted on/off switch with transparent switch cover
Material of Construction	Metal
Rack Height	0U
Form Factors Supported	Vertical (0U) mounting in rack enclosures
PDU Form Factor	Vertical (0U)
Shipping Dimensions (hwd / cm)	131.50 x 8.71 x 6.10
Shipping Weight (kg)	2.01
Unit Dimensions (hwd / cm)	123.1 x 3.81 x 4.2
Unit Weight (kg)	1.70
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Product Certifications	RETIE (Colombia); NOM (Mexico); UL 60950-1
Product Compliance	RoHS
Product Warranty Period (Worldwide)	2-year limited warranty
Part Number	Description
WEXT1B	Extended Warranty and Technical Support for Select Products – DC Power, Keyspan, KVM, PDUs, Inverters, Power Management
WEXT2B	Extended Warranty and Technical Support for Select Products – DC Power Supplies, Keyspan Products, KVM Switches, PDUs, Power Inverters, Power Management
WEXT3B	Extended Warranty and Technical Support for Select Products – DC Power Supplies, Keyspan Products, KVM Switches, PDUs, Inverters, Power Management
