Tripp Lite series 2kW Single-Phase Local Metered PDU, 100-127V Outlets (14 5-15/20R), L5-20P/5-20P adapter, 0U Vertical, 36 in. Height

Name: Tripp Lite series 2kW Single-Phase Local Metered PDU, 100-127V Outlets (14 5-15/20R), L5-20P/5-20P adapter, 0U Vertical, 36 in. Height
Brand: Tripp Lite
SKU: PDUMV20-36
Price: 284.83 CAD
Availability: InStock

$284.83

Brand: Tripp Lite

Part Number (MPN): PDUMV20-36

UPC / GTIN: 037332182821

Datasheet: PDF

Tripp Lite series 2kW Single-Phase Local Metered PDU, 100-127V Outlets (14 5-15/20R), L5-20P/5-20P adapter, 0U Vertical, 36 in. Height

Toronto Stock: 1 available

Manufacturer Warehouse: 589 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

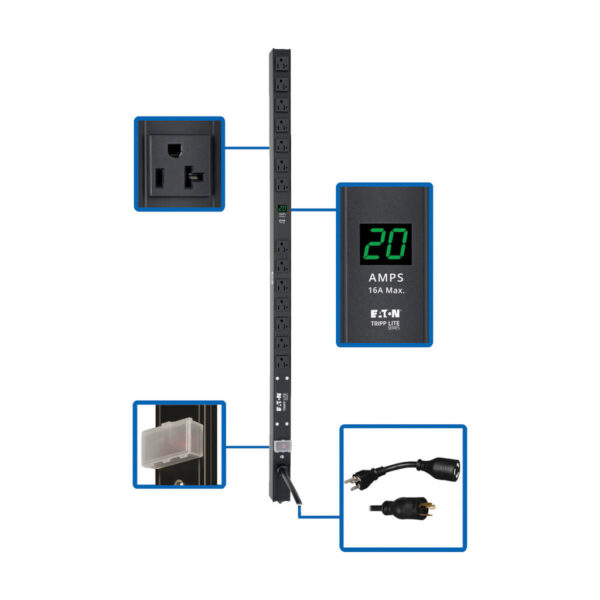

Local Metered single phase 100-127V 20A 0U 36-in. / 91.4cm vertical rackmount PDU
Two-digit current meter reports output current in amps
Attached 15-ft. (4.57 m) cord with NEMA L5-20P plug and 5-20P adapter
14 NEMA 5-15/20R outlets

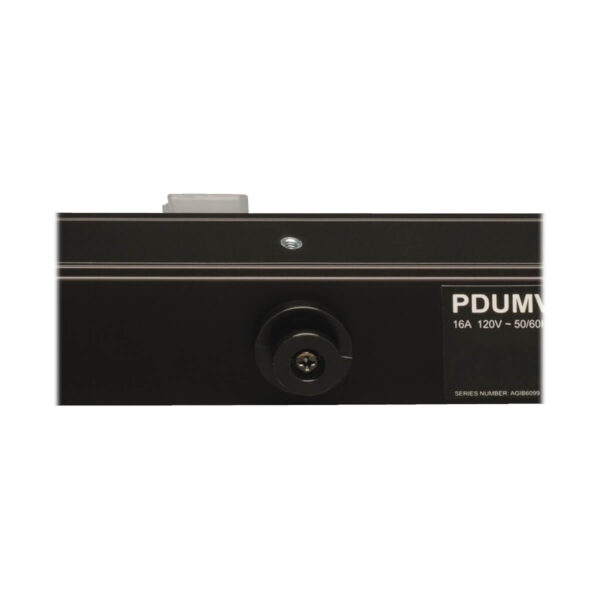

Toolless button mount and bolt-down bracket installation hardware included

Features

20A single phase 100-127V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency de-rated to 16A continuous)

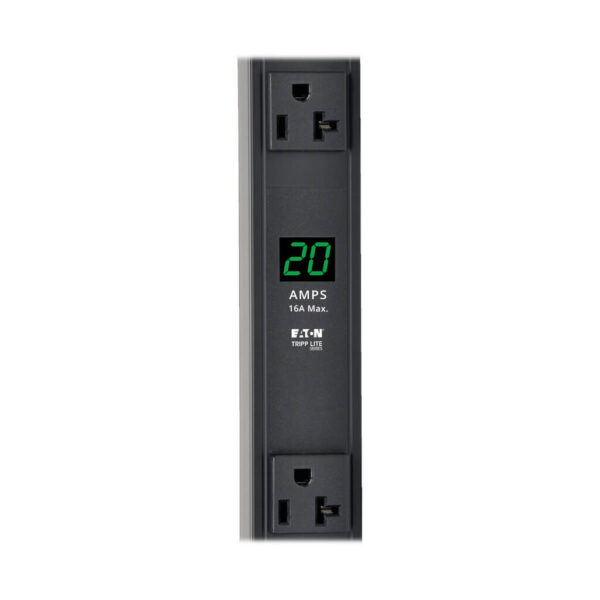

Two-digit lighted meter reports combined total output current in amps
Attached NEMA L5-20P input plug with 15-ft. (4.57 m) line cord and 5-20P adapter

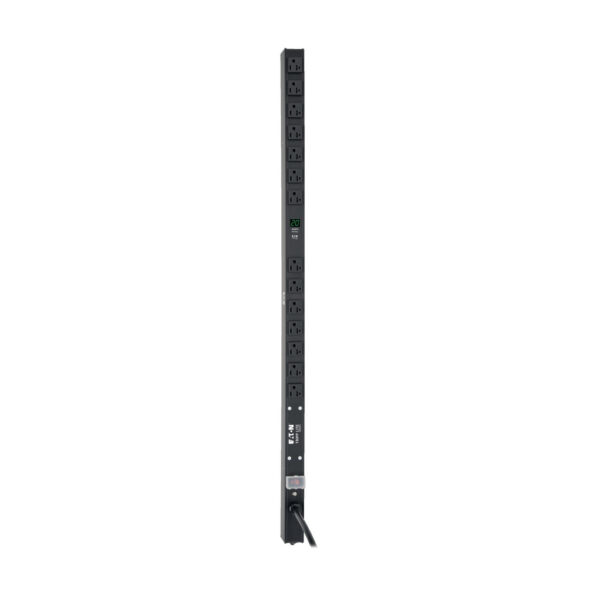

0U 36-in. / 91.4cm vertical rackmount format installs using no rack spaces

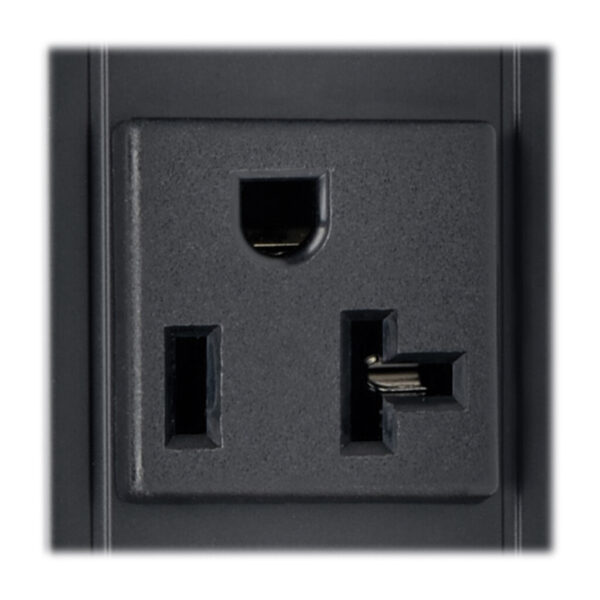

14 NEMA 5-15/20R outlets

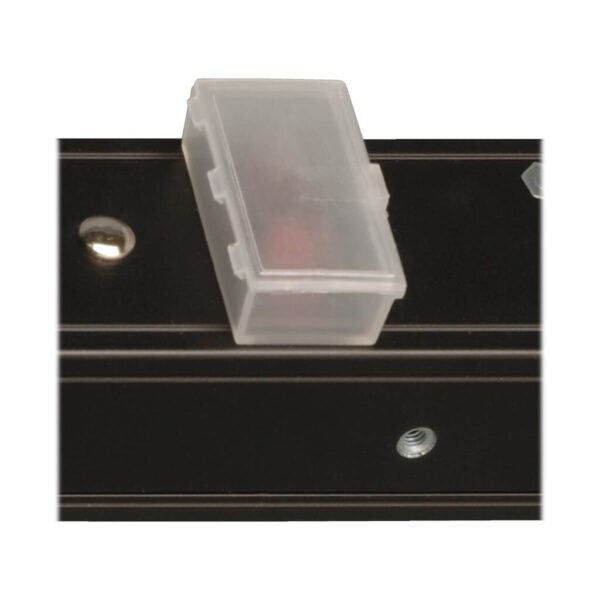

Includes 20A circuit breaker and lighted power switch inside a transparent protective cover
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces

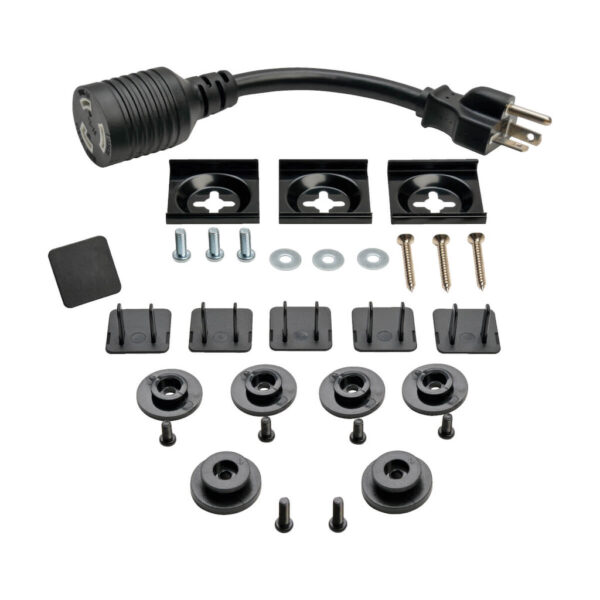

Package Includes

PDUMV20-36 Local Metered Vertical PDU
(1) L5-20P to 5-20P plug adapter
Mounting hardware and spare mounting buttons
Instruction manual with warranty information

Weight	5.9 lbs
Dimensions	2.4 × 6.65 × 38.58 in
UPC Code	037332182821
Cord Length	14.99
Max Input Amps	16
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	100; 120; 125; 127
Recommended Electrical Service	Single-phase 20A 100-127V service
Maximum Input Amps Details	Agency de-rated to 16A continuous
PDU Plug Type	NEMA 5-20P; NEMA L5-20P
Input Cord Length (m)	4.57
Output Capacity Details	2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 16A total capacity; 16A max per outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacles	(14) 5-15/20R
Output Nominal Voltage	100-127V
Overload Protection	20A circuit breaker
Front Panel LCD Display	Digital meter reports PDU output current in amps
Switches	Lighted on/off switch with integrated transparent saftey cover
Material of Construction	Aluminum
Rack Height	0U
Form Factors Supported	Vertical
PDU Form Factor	Vertical (0U)
Shipping Dimensions (hwd / cm)	97.99 x 16.89 x 6.10
Shipping Weight (kg)	2.68
Unit Dimensions (hwd / cm)	92.6 x 3.81 x 4.17
Unit Weight (kg)	1.90
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	5% to 95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Product Certifications	RETIE (Colombia); NOM (Mexico); UL 60950-1
Product Compliance	RoHS; FCC Part 15 Class A (USA)
Product Warranty Period (Worldwide)	2-year limited warranty
Part Number	Description
WEXT1B	Extended Warranty and Technical Support for Select Products – DC Power, Keyspan, KVM, PDUs, Inverters, Power Management
WEXT2B	Extended Warranty and Technical Support for Select Products – DC Power Supplies, Keyspan Products, KVM Switches, PDUs, Power Inverters, Power Management
WEXT3B	Extended Warranty and Technical Support for Select Products – DC Power Supplies, Keyspan Products, KVM Switches, PDUs, Inverters, Power Management
