Tripp Lite series 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 32-C13 ) C20/L6-20P Cable 10 ft. (3.05 m) Cord, 0U Vertical

Name: Tripp Lite series 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 32-C13 ) C20/L6-20P Cable 10 ft. (3.05 m) Cord, 0U Vertical
Brand: Tripp Lite
SKU: PDUMV20HV
Price: 411.96 CAD
Availability: InStock

$411.96

Brand: Tripp Lite

Part Number (MPN): PDUMV20HV

UPC / GTIN: 037332139344

Datasheet: PDF

Tripp Lite series 3.7kW Single-Phase Local Metered PDU, 208/230V Outlets (6-C19 & 32-C13 ) C20/L6-20P Cable 10 ft. (3.05 m) Cord, 0U Vertical

Toronto Stock: 13 available

Manufacturer Warehouse: 34 available
*Items typically ship within 3-4 weeks if stock at factory

Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

Local metered single phase 16A 208/230V 0U 63.75in / 162cm vertical rackmount PDU
Two-digit meter reports output current in amps
10ft / 3m detachable input cable with NEMA L6-20P plug
C20 inlet accepts a variety of 16A international cordsets
38 output receptacles (6 C19, 32 C13); Compatible with Eaton Tripp Lite power cords
Ready for immediate toolless 0U installation

Features

16/20A single phase 230/208V Local Metered Power Distribution Unit / rack PDU (rPDU) (Agency derated to 16A continuous)
Two-digit lighted meter reports combined total output current in amps
10ft / 3m detachable input cable with NEMA L6-20P plug
C20 inlet accepts a variety of 16A international cordsets
0U 63.75in / 162cm vertical rackmount format installs using no rack spaces
38 total outlets (6 C19, 32 C13)
Included plug-lock inserts ensure components remain connected and powered
Toolless installation supported in button-mount compatible equipment racks
Bolt-down installation brackets support installation in other racks and additional surfaces

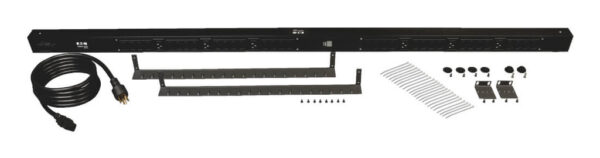

Package Includes

PDUMV20HV 63.75 inch basic PDU
Plug-lock inserts (6 C20, 32 C13)
Spare installation buttons, 2.9 mm/4.6 mm
10-ft. (3.05 m) detachable C19-to-L620P input cordset
Mounting hardware
Owner’s Manual

Weight	9.5 lbs
Dimensions	65.5 × 3.5 × 5 in
UPC Code	037332139344
Cord Length	10.01
Max Input Amps	16
Brand	Tripp Lite
PDU Type	Local Metered
Input Phase	Single-Phase
PDU Input Voltage	208; 230
Recommended Electrical Service	Single-phase 16/20A 230/208V service
Maximum Input Amps Details	Agency de-rated to 16A continuous
Input Connection Type	L6-20P detachable cordset, C20 inlet available
PDU Plug Type	NEMA L6-20P; IEC-320 C20
Input Cord Length (m)	3.05
Output Capacity Details	3.68kW (230V), 3.33kW (208V) / 16A total capacity; 16A max per C19 outlet; 12A (10A CE) max per C13 outlet
Frequency Compatibility	50 / 60 Hz
Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords
Output Receptacles	(32) C13; (6) C19
Output Nominal Voltage	208/230V
Front Panel LCD Display	Digital meter reports PDU output current in amps
Material of Construction	Aluminum
Rack Height	0U
Form Factors Supported	0u vertical installation in equipment racks, plus under-counter and wallmount
PDU Form Factor	Vertical (0U)
Shipping Dimensions (hwd / cm)	12.70 x 8.89 x 166.37
Shipping Weight (kg)	4.31
Unit Dimensions (hwd / cm)	162 x 5.7 x 9.5
Unit Weight (kg)	2.36
Operating Temperature Range	32° to 104°F (0° to 40°C)
Storage Temperature Range	-22° to 122°F (-30° to 50°C)
Relative Humidity	0-95% non-condensing
Operating Elevation	0-10000 ft. (0-3000 m)
Product Certifications	IEC 62368-1; RETIE (Colombia); GOST (Russia); NOM (Mexico)
Product Compliance	RoHS; CE (Europe); EAC (Belarus, Kazakhstan, Russia); UKCA
Product Warranty Period (Worldwide)	2-year limited warranty
Part Number	Description
WEXT1C	Extended Warranty and Technical Support for Select Products – DC Power, KVM, PDU, Inverters, Power Management
WEXT2C	Extended Warranty and Technical Support for Select Products – DC Power Supplies, KVM Switches, PDUs, Power Inverters, Power Management
WEXT3C	Extended Warranty and Technical Support for Select Products – Cables and Connectivity, DC Power Supplies, KVM Switches, PDUs, Power Inverters
