Tripp Lite series 3.8kW Single-Phase Local Metered PDU, Dual Circuit, 120V Outlets (32 5-15/20R), L5-20P/5-20P, 10 ft. (3.05 m) Cord, 0U Vertical

$518.58

Brand: Tripp Lite
Part Number (MPN): PDUMV40
UPC / GTIN: 037332132505
Datasheet: PDF

Tripp Lite series 3.8kW Single-Phase Local Metered PDU, Dual Circuit, 120V Outlets (32 5-15/20R), L5-20P/5-20P, 10 ft. (3.05 m) Cord, 0U Vertical

Toronto Stock: 3 available
Manufacturer Warehouse: 95 available
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.

Quick Specs

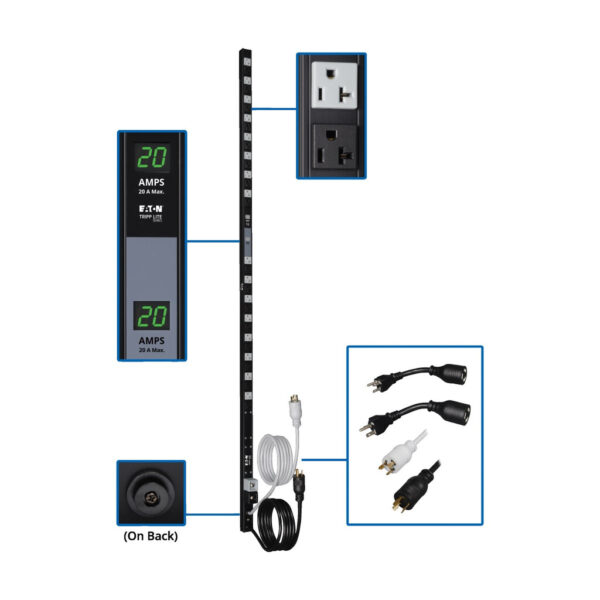

  • Dual Circuit 71 inch PDU
  • Dual Independent Current Monitoring Displays

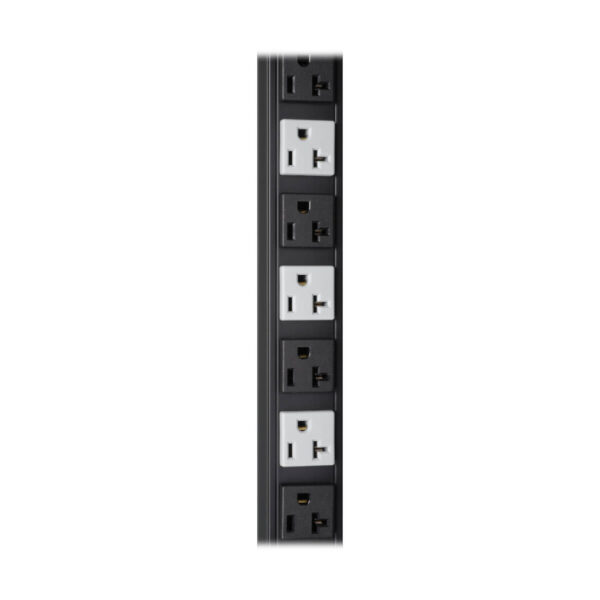

  • 32 NEMA 5-15/20R 120V outlets color coded for each circuit
  • Two 16A independent circuits of 16 outlets each
  • Color-coded input power cords for each circuit
  • Supports connection to NEMA L5-20R or 5-20R 120V 20A wall receptacle

Features

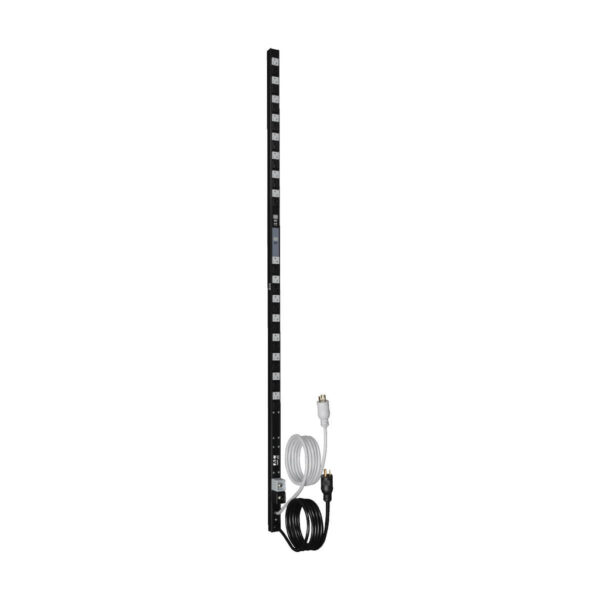

  • The PDUMV40 rack PDU (rPDU) all-in-one Zero U form factor enables efficient, single-enclosure installations
  • Dual independent circuit design delivers high capacity across 32 outlets in minimal space
  • Input plugs, input power cords, breakers and outlets are color-coded to match each independent 20A circuit, allowing simplified cable management for multi-server configurations (each circuit is Agency de-rated to 16A continuous)
  • Dual digital current monitoring displays (1 for each circuit)
  • 10-ft. (3.05 m) dual input power cords increase mounting flexibility; mounting hardware included
  • Combines the advantages of two separate high-current PDU’s without the extra expense, increased space requirements and added management complexity

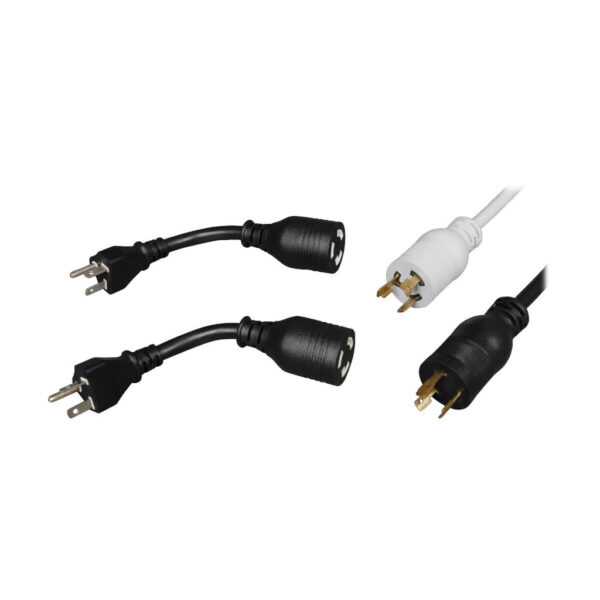

  • Includes two adapters that convert NEMA L5-20P input plugs to NEMA 5-20P. Twist-lock interface ensures secure connection
  • Switchless design prevents accidental shutdown of connected equipment

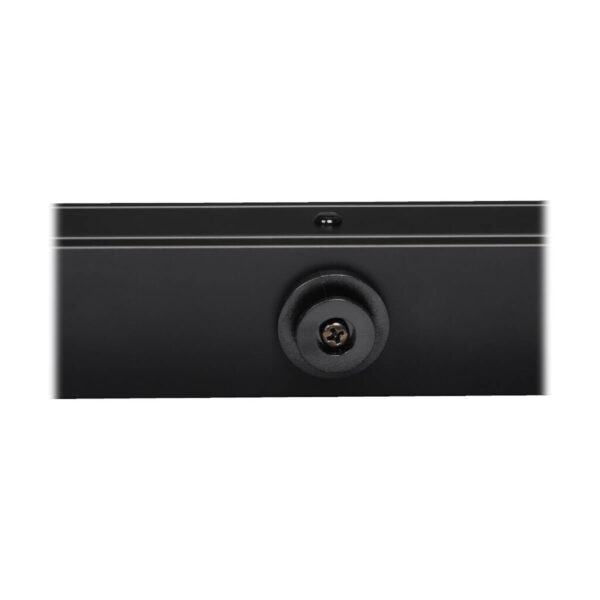

  • Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications

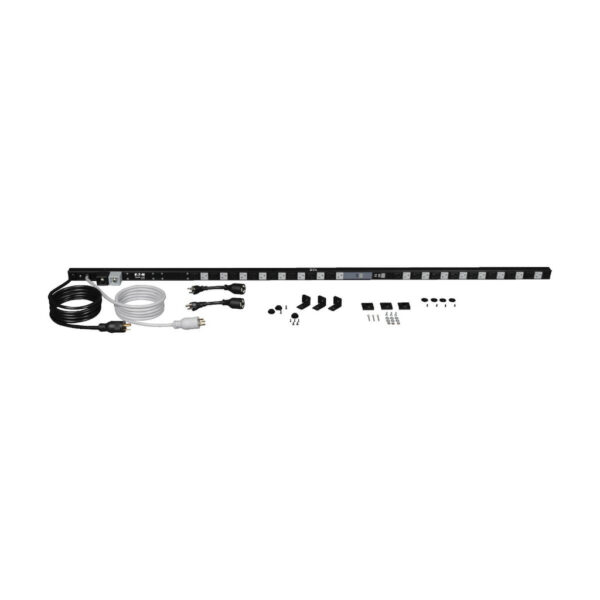

Package Includes

  • PDUMV40 Dual Vertical Circuit/Local Metered PDU
  • Mounting Hardware
  • Two NEMA L5-20P to 5-20P plug adapters
  • Owner’s Manual with warranty information
Weight 9.61 lbs
Dimensions 72.44 × 4.8 × 2.4 in
UPC Code

037332132505
Cord Length

10.01
Max Input Amps

16
Brand

PDU Type

Local Metered
Input Phase

Single-Phase
PDU Input Voltage

120
Recommended Electrical Service

Two single-phase 20A 120V circuits
Maximum Input Amps Details

Each circuit supports 20A maximum (Agency de-rated to 16A continuous)
PDU Plug Type

NEMA 5-20P; NEMA L5-20P
Input Cord Length (m)

3.05
Output Capacity (kW)

3.8
Output Capacity Details

3.8kW total – 1.9kW per circuit (120V); 32A maximum total – 16A maximum per circuit; 16A max per 5-15/20R outlet
Frequency Compatibility

50 / 60 Hz
Output Receptacles

(32) 5-15/20R
Output Nominal Voltage

120V
Overload Protection

Two 20A circuit breakers; Grey-color circuit breaker protects grey-color outlets; Black-color circuit breaker protects black-color outlets
Front Panel LCD Display

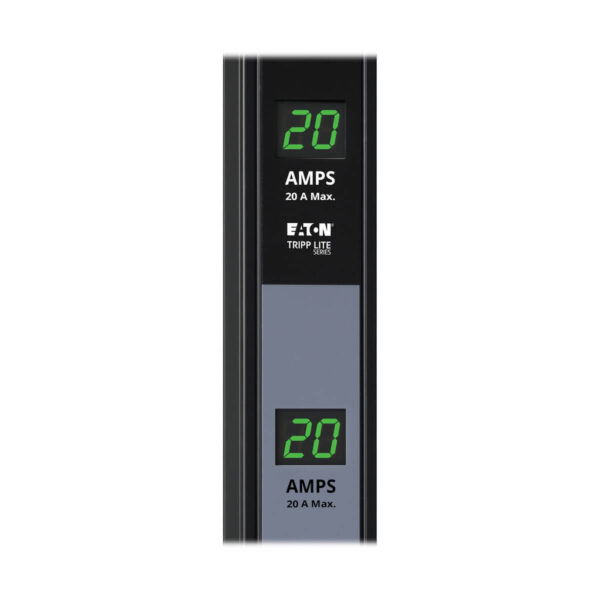

Set of 2 digital current meters reports PDU output current in amps; Gray color-coded meter reports output amps from gray color outlets (16A max); Black color-coded meter reports output amps from black color outlets (16A max)
Material of Construction

Aluminum
Rack Height

0U
Form Factors Supported

Zero U vertical rackmount, wall-mount, raceway, workbench and more
PDU Form Factor

Vertical (0U)
Shipping Dimensions (hwd / cm)

6.10 x 12.19 x 184.00
Shipping Weight (kg)

4.36
Unit Dimensions (hwd / cm)

180.95 x 3.81 x 8.48
Unit Weight (kg)

3.85
Operating Temperature Range

32° to 104°F (0° to 40°C)
Storage Temperature Range

-22° to 122°F (-30° to 50°C)
Operating Elevation

0-10000 ft. (0-3000 m)
Product Certifications

RETIE (Colombia); NOM (Mexico); UL 60950-1
Product Compliance

RoHS
Product Warranty Period (Worldwide)

2-year limited warranty
Part Number

Description
WEXT1C

Extended Warranty and Technical Support for Select Products – DC Power, KVM, PDU, Inverters, Power Management
WEXT2C

Extended Warranty and Technical Support for Select Products – DC Power Supplies, KVM Switches, PDUs, Power Inverters, Power Management
WEXT3C

Extended Warranty and Technical Support for Select Products – Cables and Connectivity, DC Power Supplies, KVM Switches, PDUs, Power Inverters
