Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
Switchless design prevents accidental shutdown
63.75 in. all-metal housing
Supports toolless 0U vertical mounting
Overview

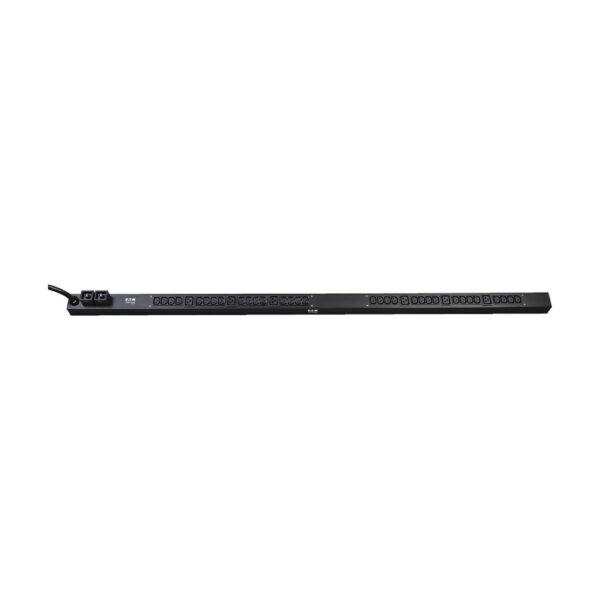

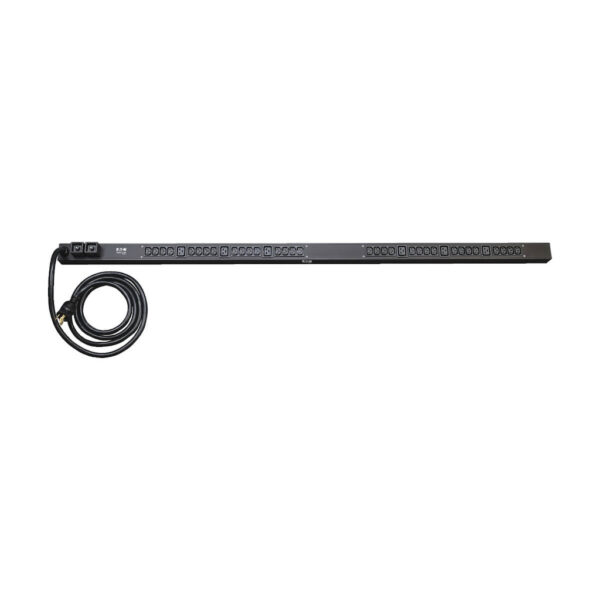

The PDUV30HV 5.5kW Single-Phase 208/230V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUV30HV features 38 total outlets—32 C13 and 6 C19. The NEMA L6-30P input plug with 10-ft. (3.05 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. The 63.75-inch all-metal housing supports 0U vertical mounting in EIA-standard 19-inch racks using the included hardware or toolless 0U mounting using the included buttons. You can also mount the PDUV30HV under a counter with the included brackets and user-supplied hardware. Included C20 and C14 plug-lock inserts attach to the components’ plugs to keep them connected and continuously powered.
Features
Reliable Single-Phase 24A 208/230V Power Distribution
Versatile no-frills rack PDU (rPDU) for data centers, server rooms and network wiring closets
38 total outlets—32 C13 and 6 C19
NEMA L6-30P input plug with 10-ft. (3.05 m) power cord
Included C20 and C14 plug-lock inserts keep connected plugs secure and continuously powered
Dual 15A circuit breakers protect outlets against overloads
Switchless Design
Prevents accidental shutdowns and costly downtime
Versatile Installation Options
63.75 in. all-metal housing
Supports toolless 0U vertical mounting in EIA-standard 19 in. racks
Also supports 0U mounting using included hardware
Also mounts under a counter or workbench using included brackets and user-supplied hardware
5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Frequency Compatibility
50 / 60 Hz
Output Receptacle Details
Compatible with Eaton Tripp Lite Power Cords
Output Receptacles
(32) C13; (6) C19
Output Nominal Voltage
208/230V
Overload Protection
Two 15A breakers protect 19 outlets each
Material of Construction
Metal
Rack Height
0U
Form Factors Supported
0u vertical installation in equipment racks, plus under-counter and wallmount
PDU Form Factor
Vertical (0U)
Shipping Dimensions (hwd / cm)
12.70 x 7.62 x 166.37
Shipping Weight (kg)
4.90
Unit Dimensions (hwd / cm)
162 x 5.7 x 9.5
Unit Weight (kg)
3.63
Operating Temperature Range
32° to 104°F (0° to 40°C)
Storage Temperature Range
-22° to 122°F (-30° to 50°C)
Relative Humidity
5% to 95% non-condensing
Operating Elevation
0-10000 ft. (0-3000 m)
Product Certifications
CAN/CSA-C22.2 No. 62368-1 (Canada); NOM (Mexico); UL 62368-1
Product Compliance
RoHS
Product Warranty Period (Worldwide)
5-year limited warranty
