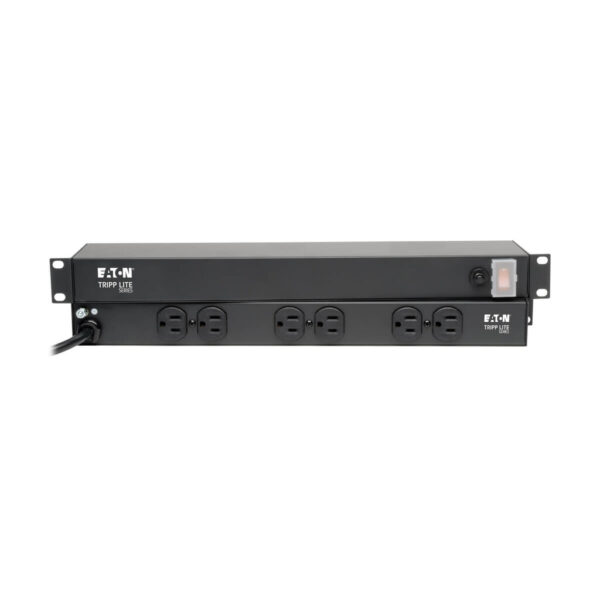

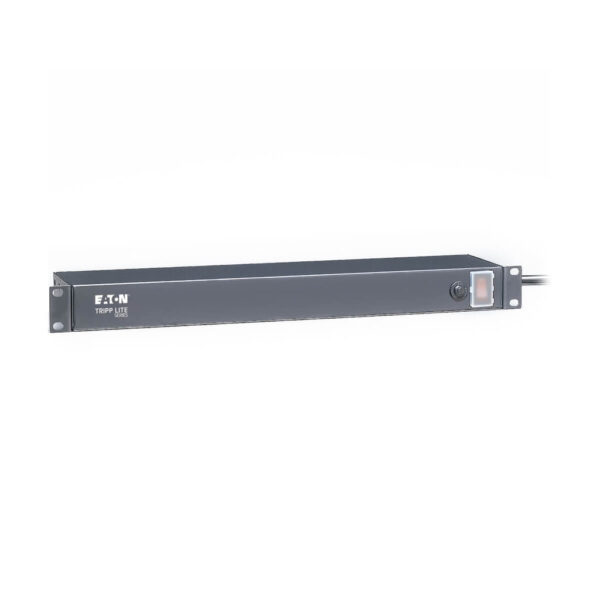

Tripp Lite series 1U Rack-Mount Network Server Power Strip, 120V, 15A, 6-Outlet (Rear-Facing), 15 ft. (4.57 m) Cord
$108.45
Tripp Lite series 1U Rack-Mount Network Server Power Strip, 120V, 15A, 6-Outlet (Rear-Facing), 15 ft. (4.57 m) Cord
Toronto Stock: 9 available
Manufacturer Warehouse: 94 available
*Items typically ship within 3-4 weeks if stock at factory
*Items typically ship within 3-4 weeks if stock at factory
Need project pricing? Add items to your cart to request a custom project quote.
Quick Specs
- 6 rear facing outlets
- 15-ft. (4.57 m) cord
- 19″ 1U rackmount
- All-metal housing
Overview
The RS-0615-R power strip offers 15A-capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rack-mount, wall-mount and under-counter installation. Uses only 1U when installed in any 19-inch rack, meeting EIA standards. Unfiltered electrical pass-through makes RS-0615-R ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes six rear-facing NEMA5-15R outlets, 15-foot (4.6-meter) cord and lighted switch with latching safety cover prevents risk of accidental turn-off.
Features
- Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
- Uses one rack space (1U) in standard 19 inch rack (“zero U” mounting possible in many racks)
- Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment

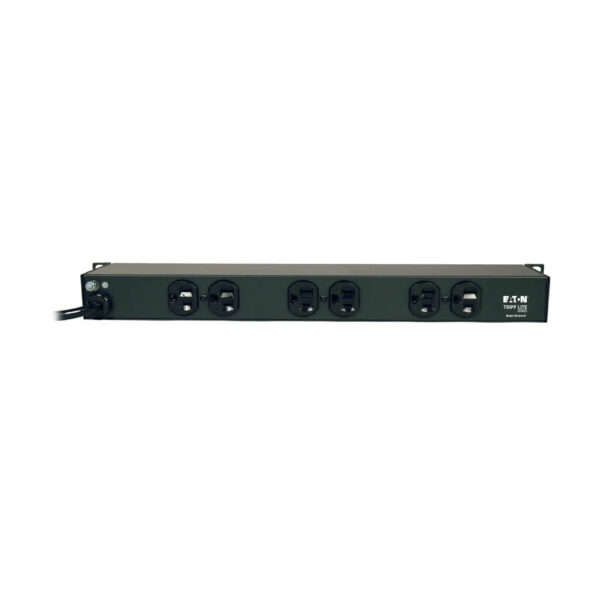

- 6 rear facing NEMA5-15R output receptacles
- 15-ft. (4.57 m) AC cord NEMA5-15P plug connection
- Lighted power switch confirms power on/off status
- Latching switch guard prevents accidental turn off
- 15 amp electrical capacity with circuit breaker
- 120VAC, 50/60Hz electrical compatibility
Package Includes
- RS-0615-R Power Strip
- Warranty information
- Instruction manual
| Weight | 5.1 lbs |
|---|---|
| Dimensions | 20.4 × 9.4 × 2.5 in |
| UPC Code | 037332115638 |
| Cord Length | 14.99 |
| Output (W) | 1800 |
| Brand | |
| Nominal Input Voltage(s) Supported | 120V AC |
| Recommended Electrical Service | 15A 120V |
| Voltage Compatibility (VAC) | 120 |
| Input Plug Type | NEMA 5-15P |
| Right-Angle Plug | No |
| Input Cord Length (m) | 4.57 |
| Frequency Compatibility | 50 / 60 Hz |
| Output (Watts) | 1800 |
| Output Receptacles | (6) 5-15R |
| Circuit Breaker (amps) | 15 |
| Transformer Accommodation | (3) Yes |
| Switches | Lighted 2 position switch controls power to all outlets |
| Locking Switch Cover | Transparent locking switch cover prevents accidental shutoff |
| Color | Black |
| Material of Construction | Metal |
| Power Cord Color | Black |
| Form Factors Supported | 1U rackmount, wall-mount and undercounter installation supported |
| Housing Color | Black |
| Mounting Holes or Slots | No |
| Outlets Measurement (Center to Center) | Distance between grouped outlets = 1.53 in.; Distance between groups = 2.96 in.; Distance between duplex outlets = 4.5 in. |
| Receptacle Color | Black |
| Shipping Dimensions (hwd / cm) | 6.35 x 23.88 x 51.82 |
| Shipping Weight (kg) | 2.31 |
| Unit Dimensions (hwd / cm) | 4.445 x 44.45 x 11.4 |
| Unit Weight (kg) | 2.04 |
| Mounting Details | Includes Rackmount flanges |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Storage Temperature Range | 14° to 122°F (-10° to 50°C) |
| Operating Humidity Range | 10% to 90% RH |
| Storage Humidity Range | 5% to 95% RH |
| Built-In Circuit Breaker | Yes |
| Grounding | Back panel nut and bolt grounding lug |
| Product Certifications | cUL Listed; NOM (Mexico); UL 1363; UL Listed |
| Product Compliance | RoHS |
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
